This article addresses support for Elo's 70-Series monitors (2270L, 2470L, 2770L) with VESA MCCS and DDC/CI capabilities.

VGA - The monitor will be able to display analog RGB component video when inputted to the VGA connector. It shall comply with the VESA MCCS V3 standard and Elo DDC/CI standard.

HDMI - The monitor will be able to display HDMI v1.3 or later video inputted to the HDMI connector. It shall comply with the VESA MCCS V3 standard and Elo DDC/CI standard.

HDCP - The monitor will be able to display HDCP-protected HDMI video. No HDCP certification required.

DisplayPort - The monitor will be able to display DisplayPort V1.1a video input to the display port receptacle. It shall comply with the VESA MCCS V3 standard and Elo DDC/CI standard.

DPCP - The monitor will display DPCP-protected Display port video, DPCP version 1.0 or HDCP version 1.3.

Power collection function
70series has power collection function, user can get power consumption from DDC-CI command.

• This function is available in off/sleep/on mode.

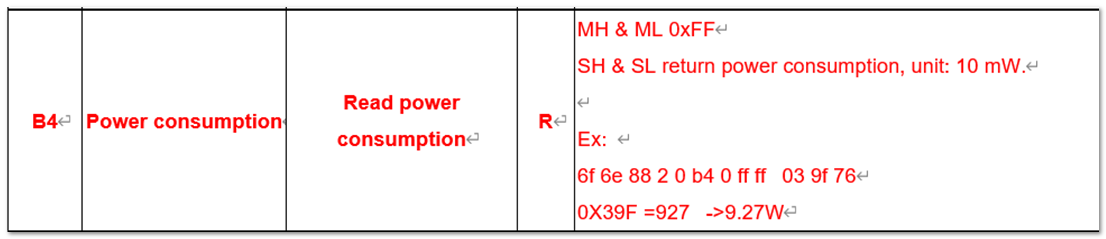

  • A: command format as below
