¿Dónde puedo encontrar el dibujo de la fuente de alimentación P/N: E323104 y las especificaciones de potencia?

Este artículo proporciona más información sobre P/N: E323104 Dibujo de Fuente de Alimentación y Especificaciones de Poder

El Dibujo de Fuente de Alimentación E323104 y las Especificaciones de Poder se muestran a continuación.

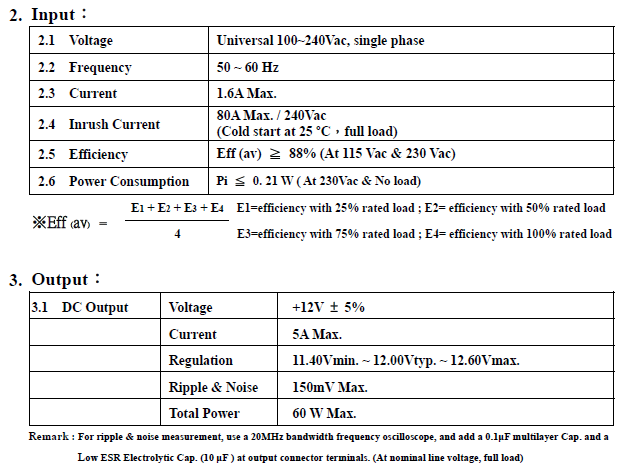

Especificaciones de Poder

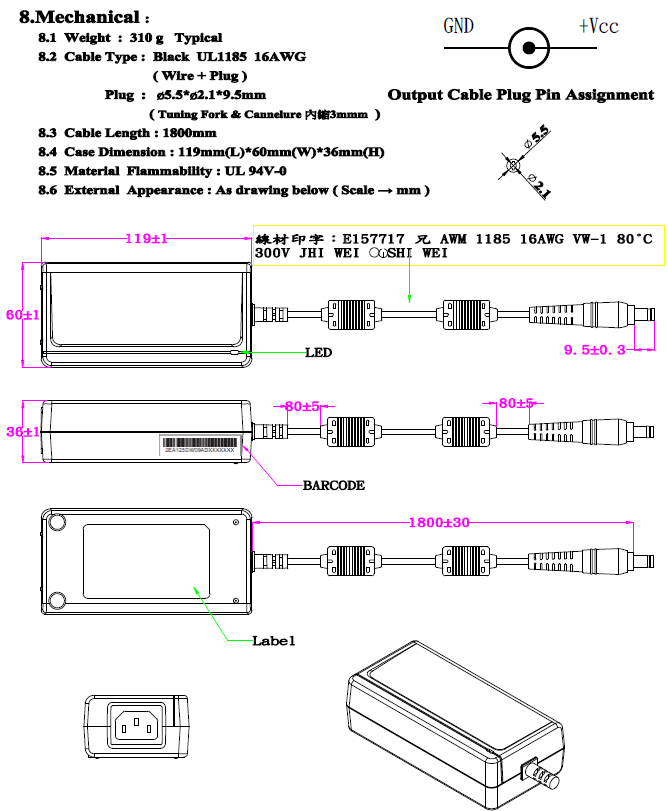

Dibujos
