¿Dónde puedo encontrar un pinout para el conector LVDS en el módulo de pantalla Elo de 10 pulgadas?

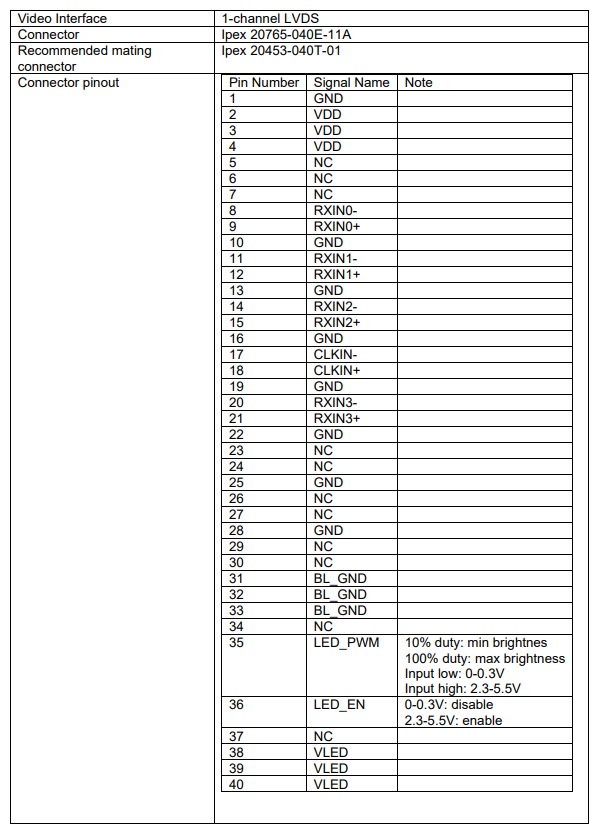

Este artículo muestra el pin-out en el conector LVDS del módulo de pantalla Elo de 10.1 pulgadas, P/N:E270763
