¿Dónde puedo encontrar un pinout del conector LVDS para el módulo de pantalla Elo de 7 pulgadas?

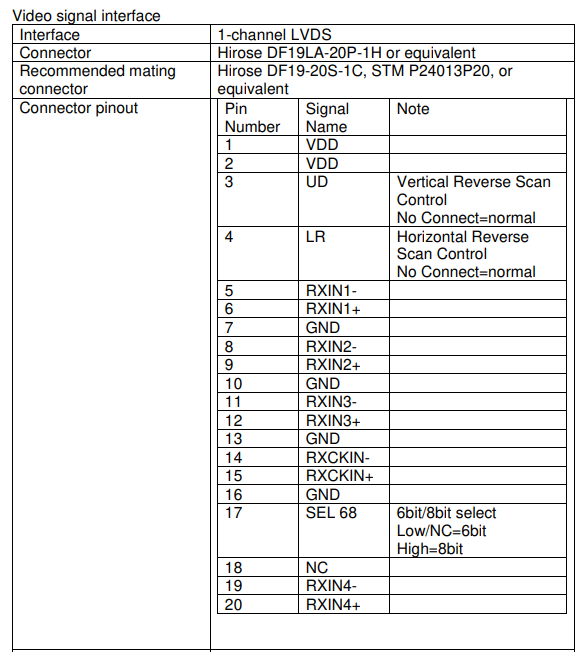

Este artículo muestra la disposición de pines para el conector LVDS en el módulo de pantalla Elo de 7 pulgadas, P/N:E271156
