¿Dónde puedo encontrar un pin-out del conector LVDS en los Módulos de Pantalla Elo?

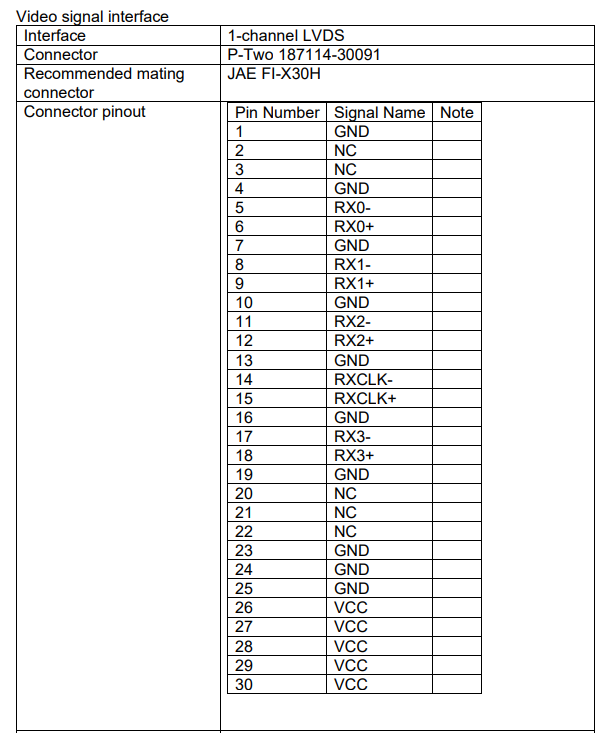

Este artículo muestra el pin-out del conector LVDS en el Módulo de Pantalla Elo de 15.6 pulgadas, P/N:E270963
