¿Dónde puedo encontrar el dibujo dimensional del ladrillo de alimentación de montaje en pared E194757?

Este artículo proporciona el dibujo dimensional para el E194757 Módulo de Alimentación de Montaje en Pared

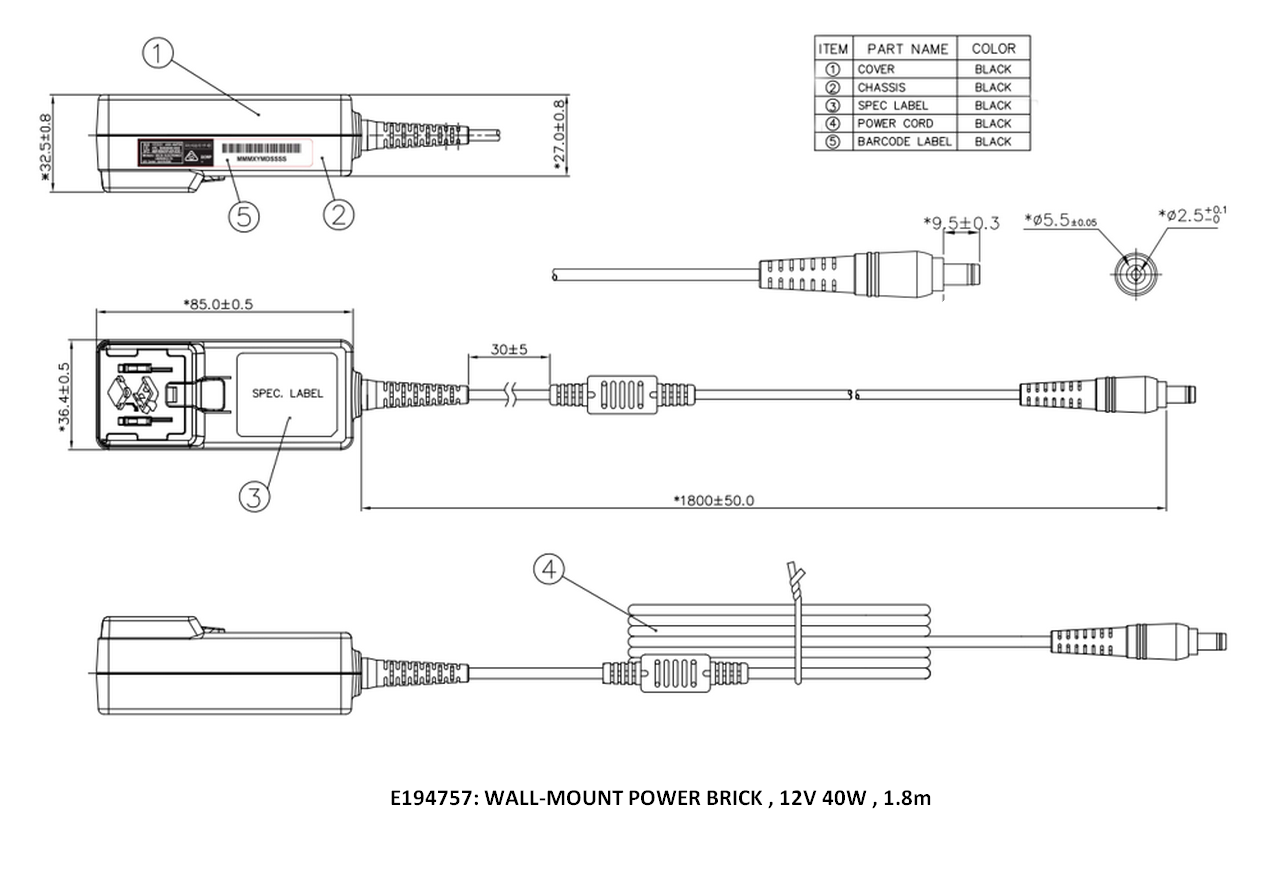

Vea a continuación el dibujo de Elo P/N:E194757: MÓDULO DE ALIMENTACIÓN DE MONTAJE EN PARED, 12V 40W, 1.8m
