Bienvenue dans le support Elo

Pilotes, informations sur les produits, réponses techniques et plus encore.

Où puis-je trouver des informations sur le P/N : E038989 support à mât arrière pour la série X ?

Cet article fournit des informations sur P/N : E038989 support de montage arrière pour la série X

Voici des informations pour Elo P/N : E038989 Support de Montage Arrière pour X-Series AIO TouchComputer.

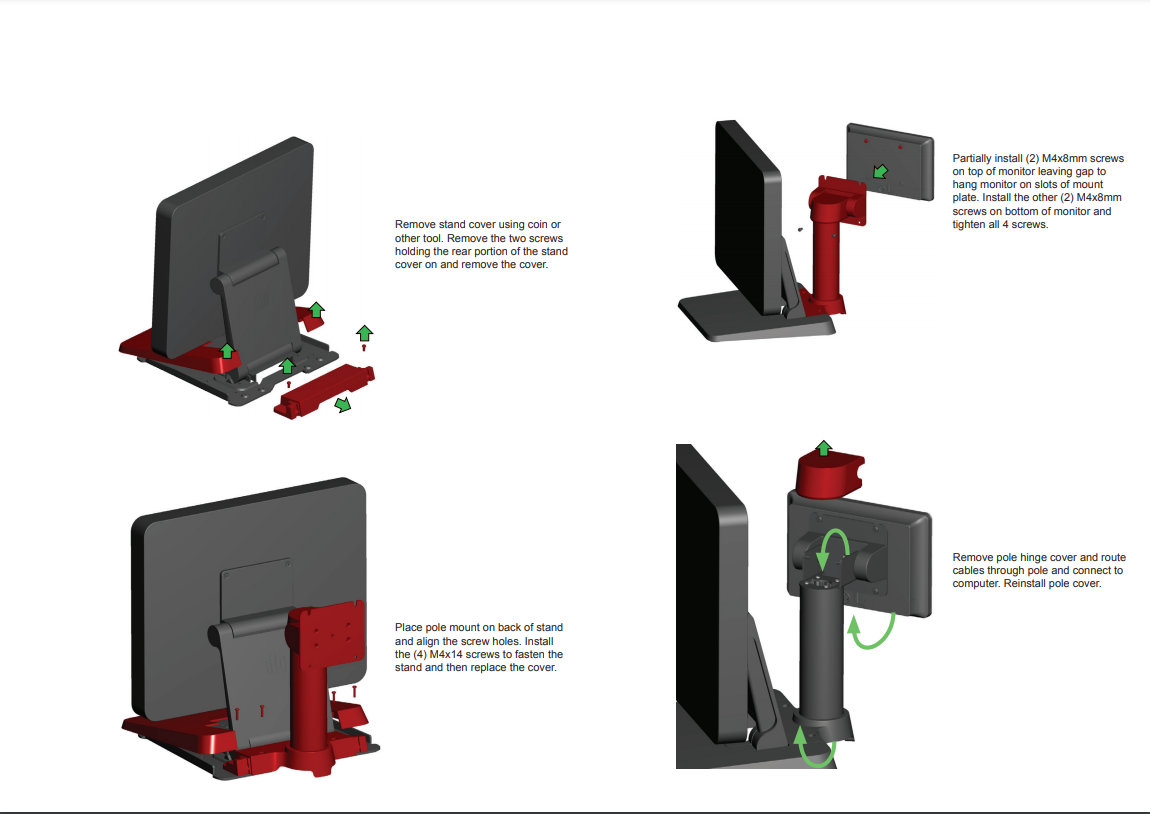

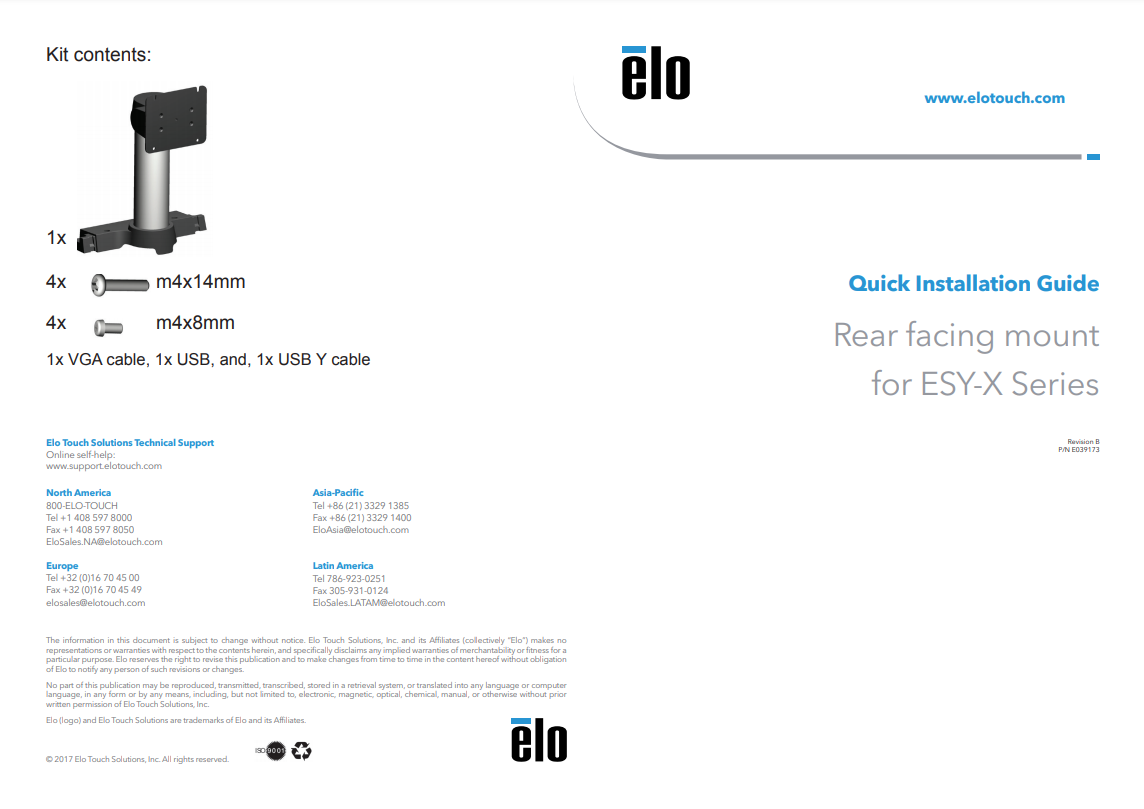

Guide d'installation rapide :

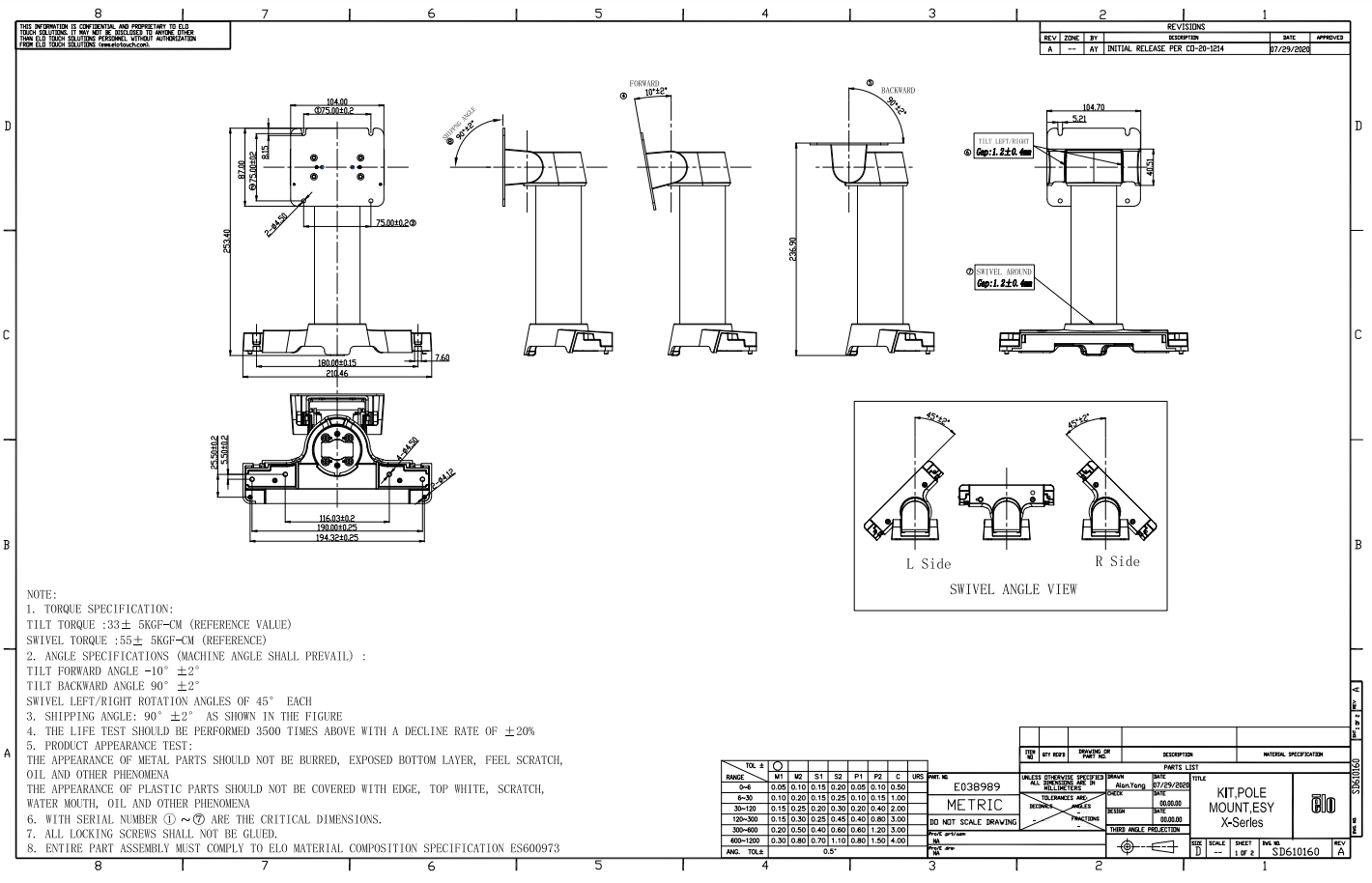

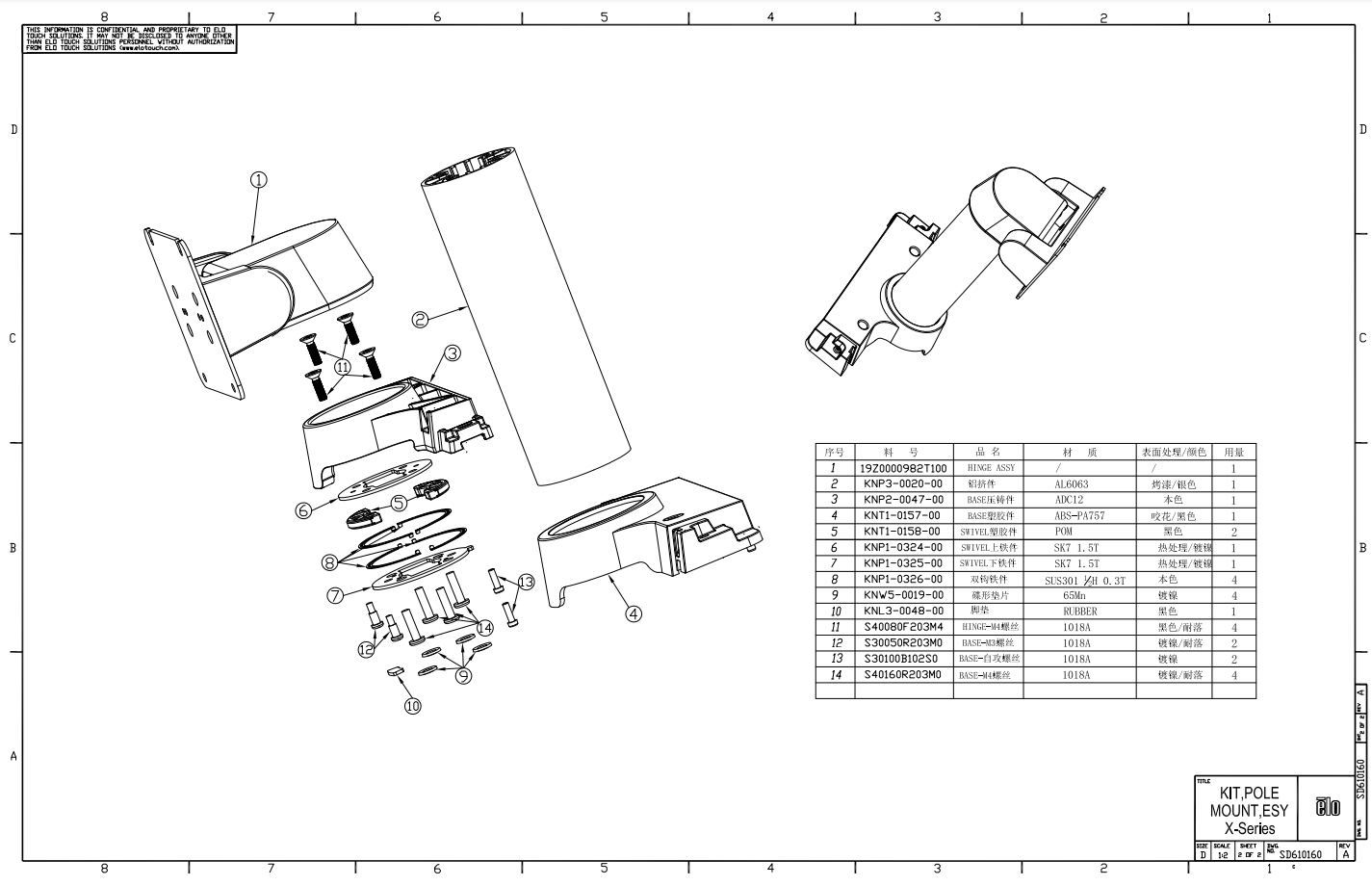

Dessins dimensionnels :

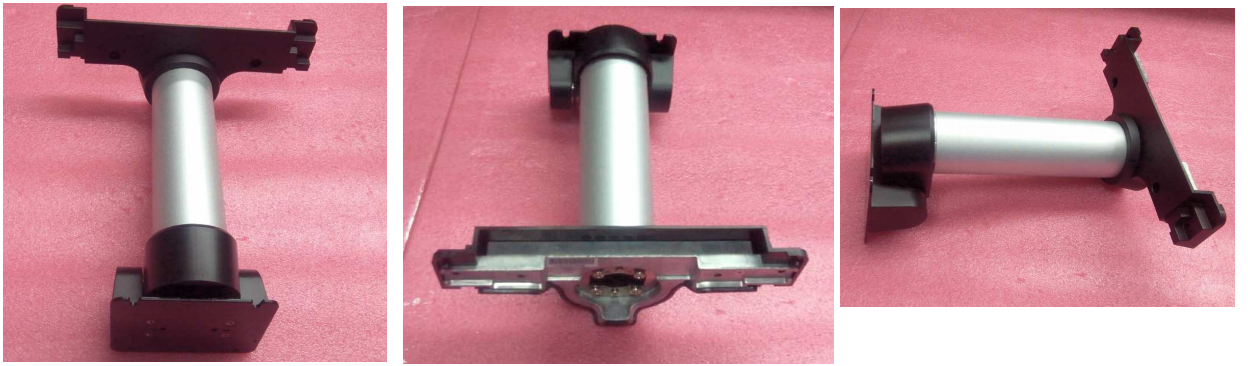

Photos :


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
