Où puis-je trouver les dessins dimensionnels du kit de montage sur pôle de 6 pouces E047458 ?

Cet article fournit les dessins dimensionnels du kit de montage sur poteau E047458 de 6 pouces sous forme d'image

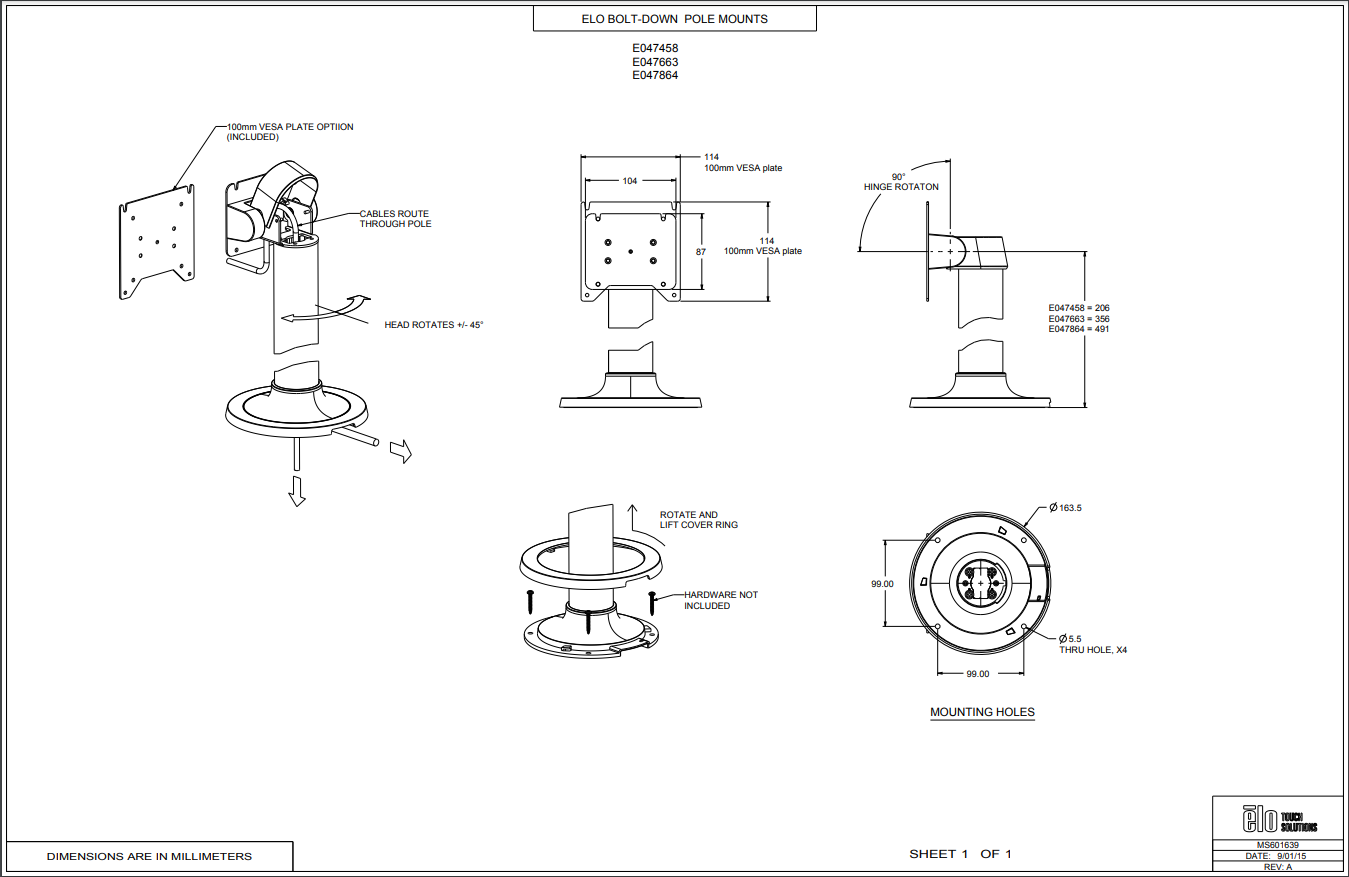

Dessins dimensionnels du kit de montage sur poteau E047458 de 6 pouces

Le dessin ci-dessous est également disponible sur le site web d'Elo ICI

Demandez un dessin CAD ICI

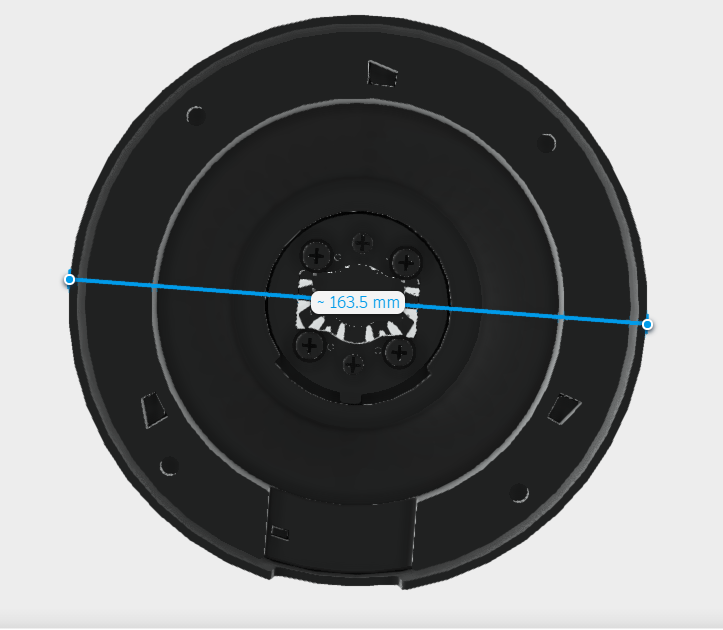

Ci-dessous, mesure du diamètre de la base du support = 163,5 mm
