Bienvenue dans le support Elo

Pilotes, informations sur les produits, réponses techniques et plus encore.

Où puis-je trouver le schéma d'alimentation et les spécifications de puissance P/N : E323104 ?

Cet article fournit plus d'informations sur P/N : E323104 Schéma d'alimentation et spécifications de puissance

Le schéma d'alimentation E323104 et les spécifications de puissance sont montrés ci-dessous.

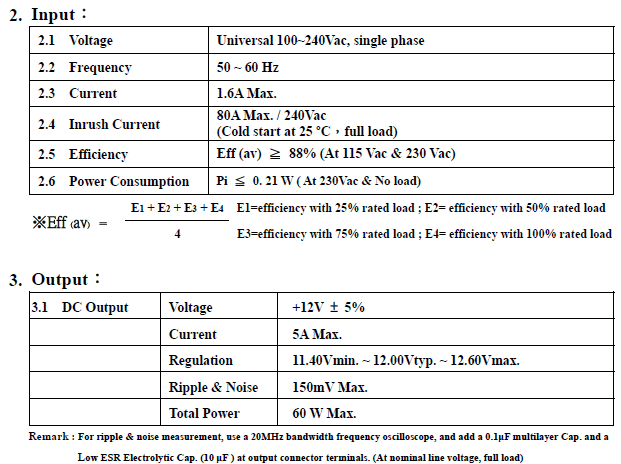

Spécifications de puissance

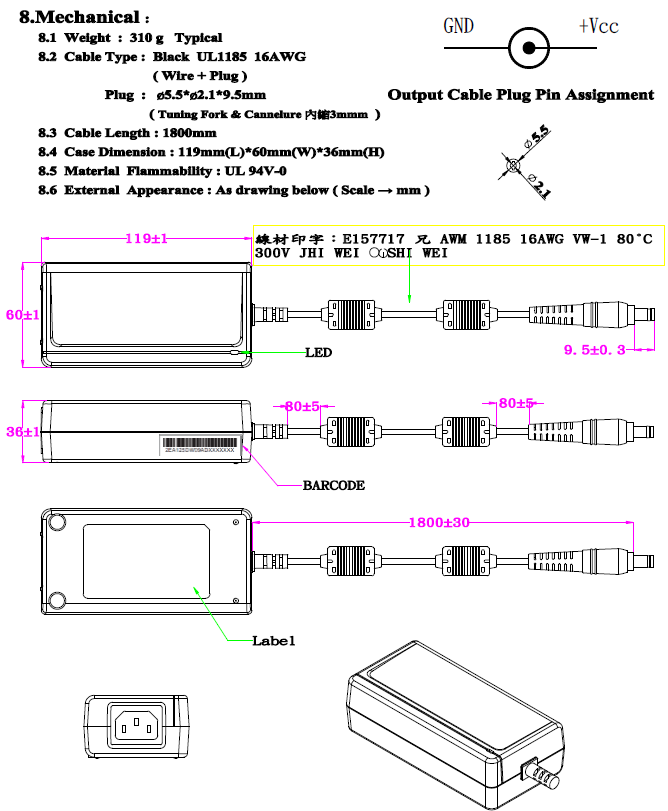

Schémas
