Où puis-je trouver un schéma des broches pour le connecteur LVDS sur le module d'affichage Elo de 10 pouces ?

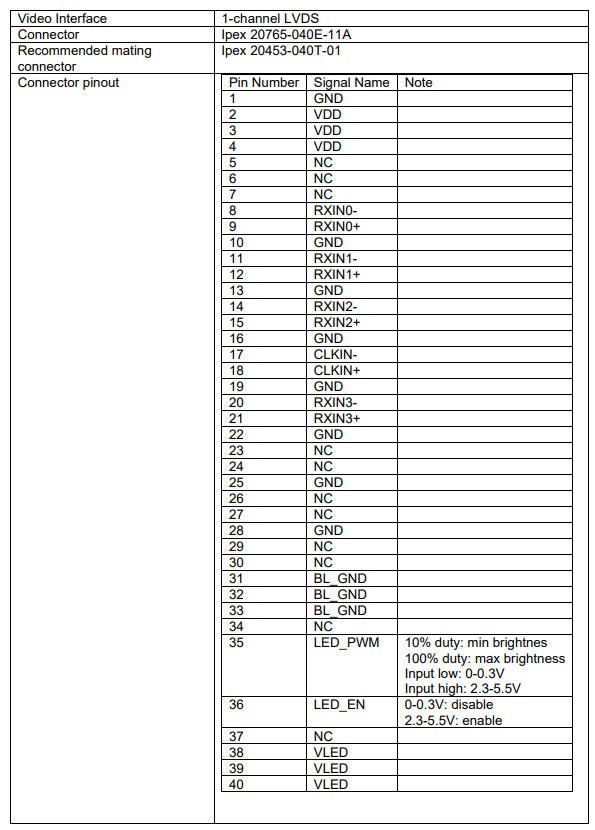

Cet article montre le brochage du connecteur LVDS du module d'affichage Elo 10,1 pouces, P/N:E270763
