Où puis-je trouver le schéma des broches du connecteur LVDS sur les modules d'affichage Elo ?

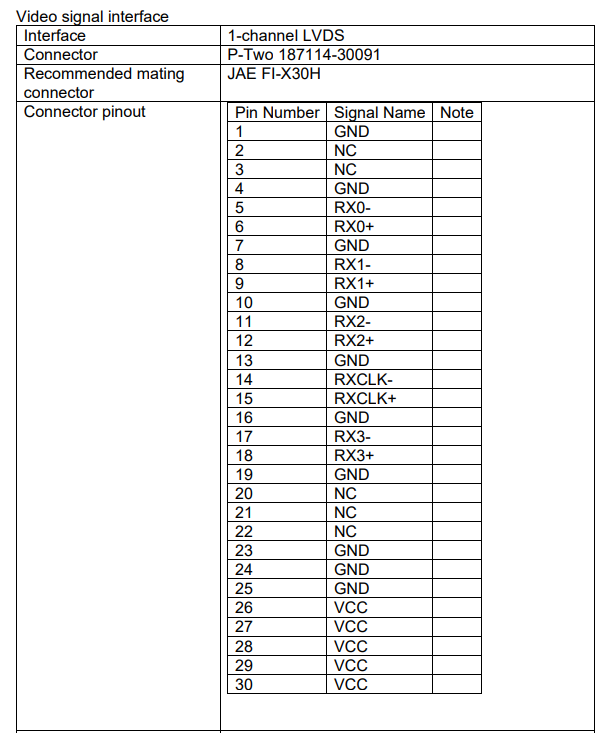

Cet article montre le brochage du connecteur LVDS sur le module d'affichage Elo de 15,6 pouces, P/N:E270963
