Où puis-je trouver un schéma de broches du connecteur LVDS pour le module d'affichage Elo de 7 pouces ?

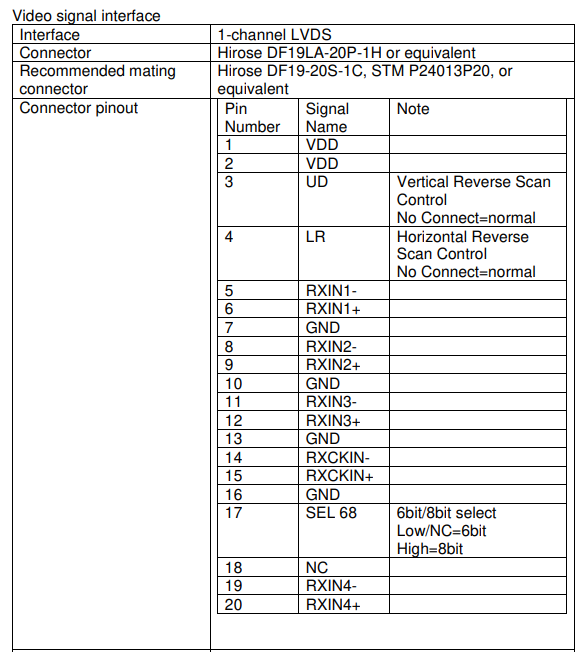

Cet article montre le brochage du connecteur LVDS sur le module d'affichage Elo de 7 pouces, P/N:E271156
