Bienvenue dans le support Elo

Pilotes, informations sur les produits, réponses techniques et plus encore.

Où puis-je trouver des informations sur E181106, Adaptateur secteur pour le Moniteur Médical 1502LM ?

Cet article fournit plus d'informations sur Elo P/N : E181106, Adaptateur secteur pour le 1502LM

Voici des informations concernant Elo P/N : E181106, Adaptateur secteur de 60W pour le Moniteur Médical ET1502LM.

Numéro de pièce & Description

  • E181106 : Elo-Pwr-Adapt-1502LM-60W
  • Kit de brique d'alimentation Elo - Adaptateur de 60W uniquement, Moniteur Médical de la série 02LM

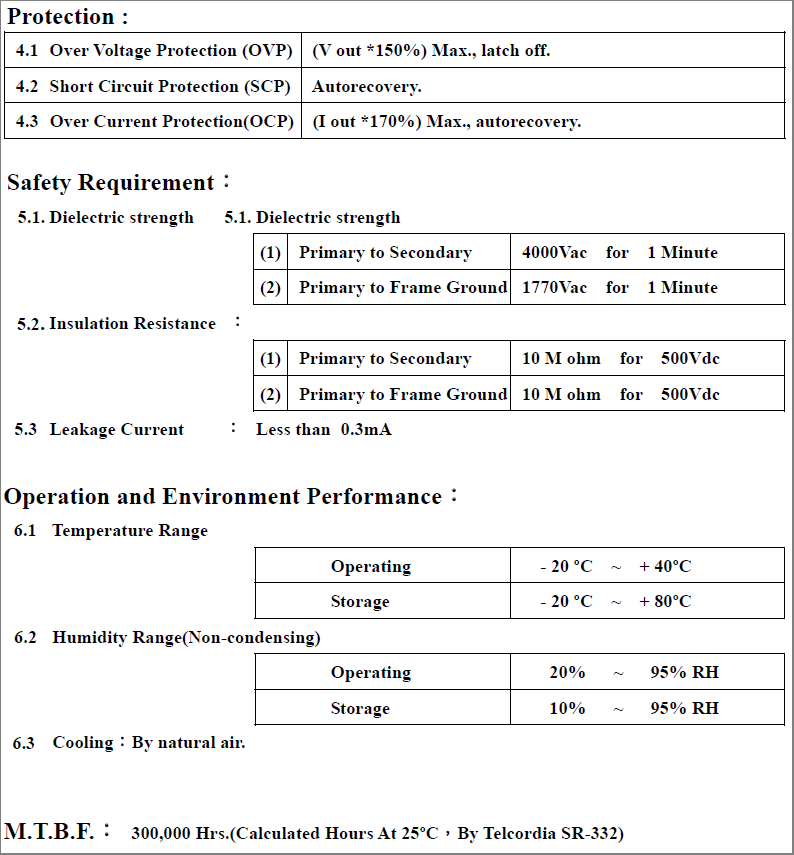

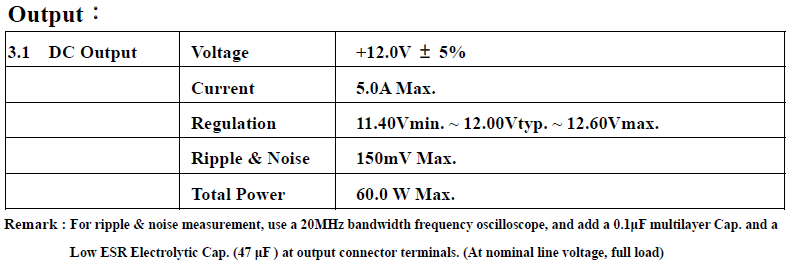

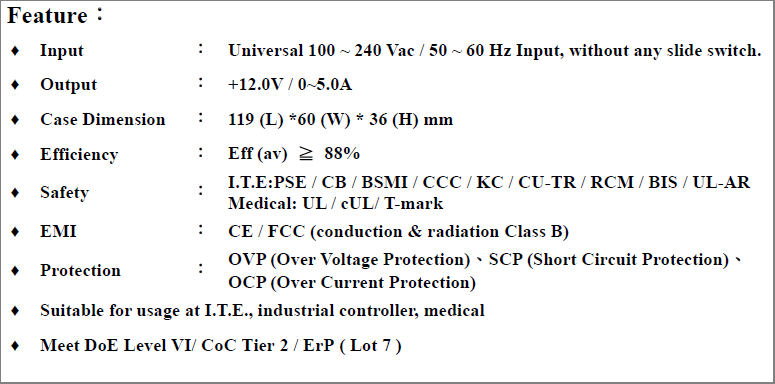

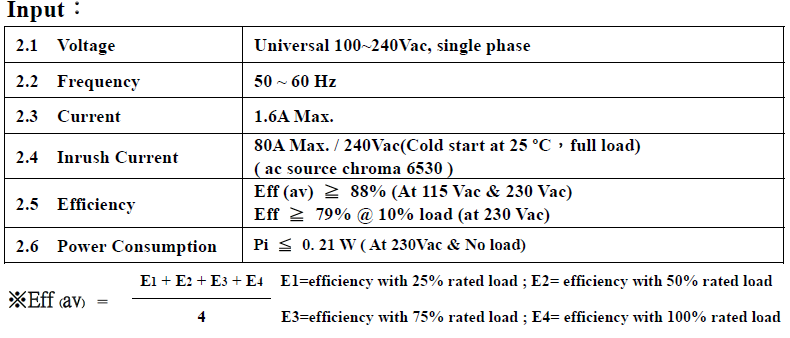

Spécifications

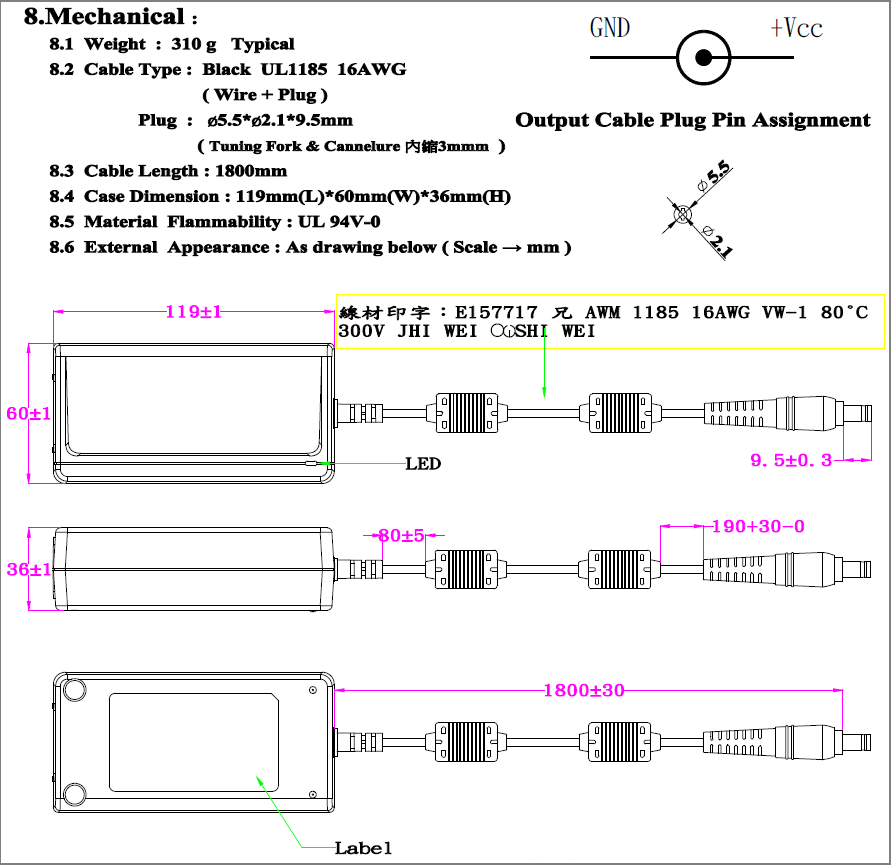

Dessin

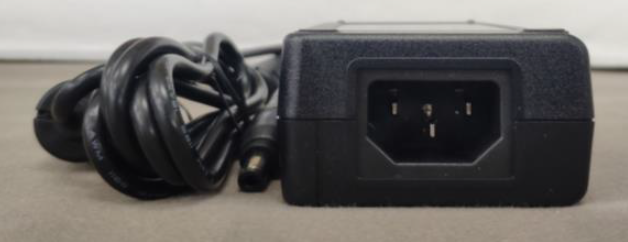

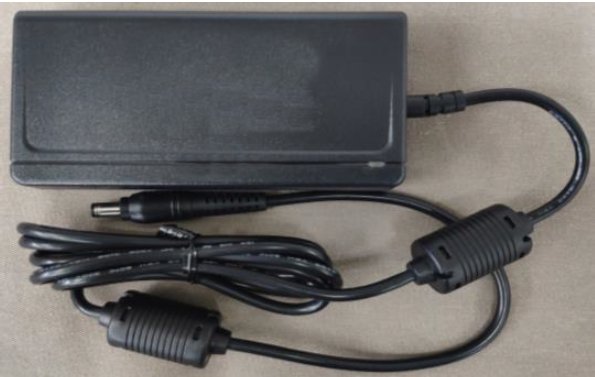

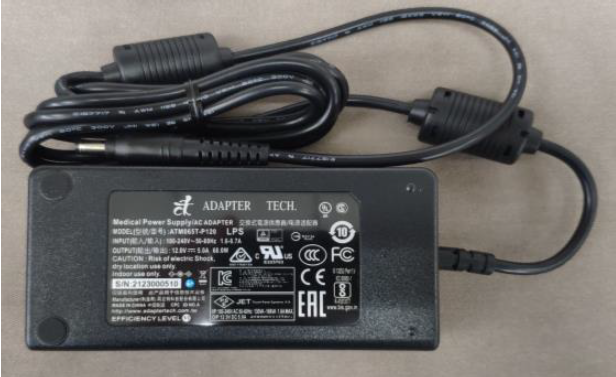

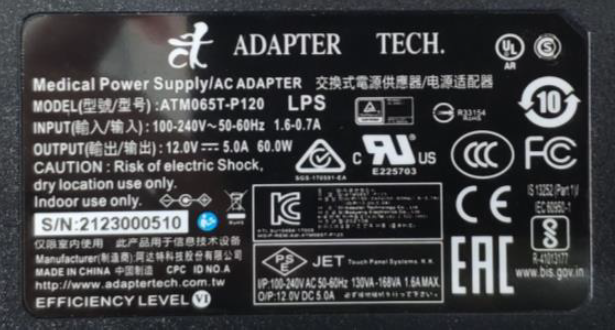

Photos
