Bienvenue dans le support Elo

Pilotes, informations sur les produits, réponses techniques et plus encore.

Où puis-je trouver des informations sur le menu OSD de la série 70 ?

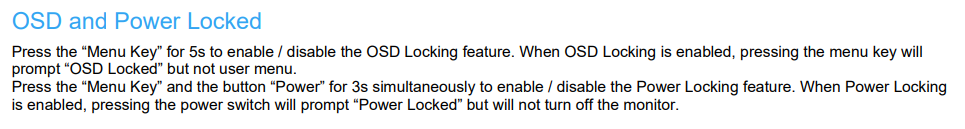

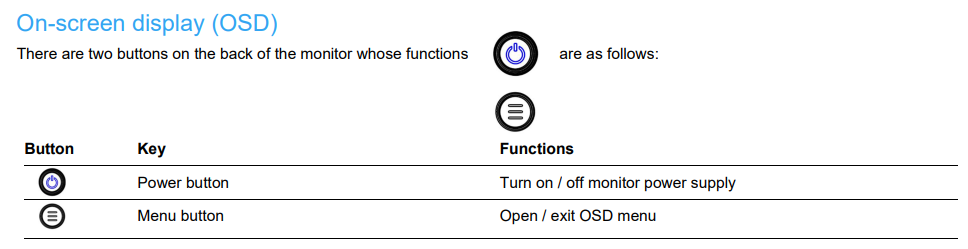

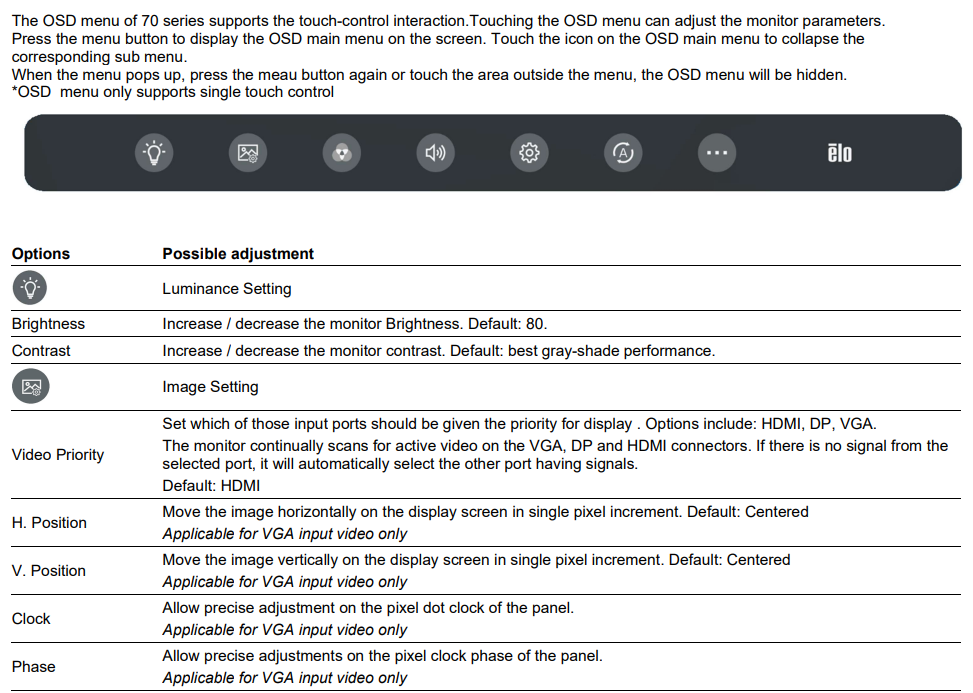

Cet article décrit le menu OSD qui est intégré dans les moniteurs tactiles de la série 70 (2270L, 2470L, 2770L)

Ces informations peuvent également être trouvées dans le manuel de l'utilisateur de la série 70


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
