Comment installer les supports de montage affleurant sur le moniteur 3263L / 4363L ?

Cet article montre comment installer les supports de montage encastrés sur les Moniteurs Open Frame de la série 63 (3263L, 4363L)

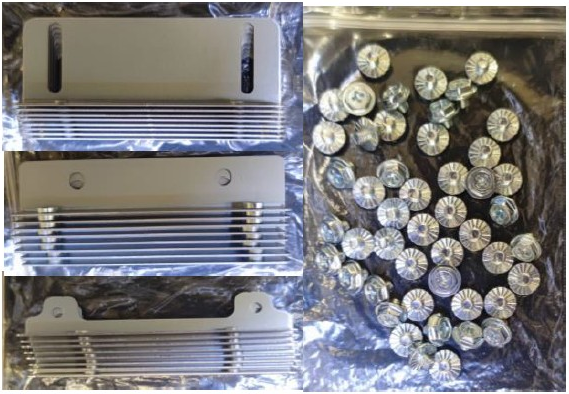

Les moniteurs incluent 8 ensembles de supports de montage encastrés et 48 vis

  • Les kits de supports de remplacement peuvent être achetés séparément

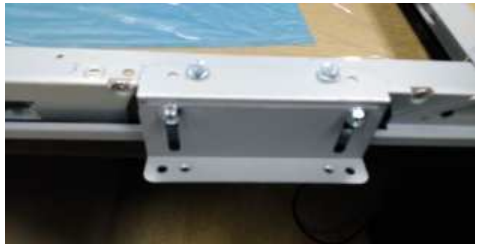

Exemple de supports assemblés sur le moniteur :

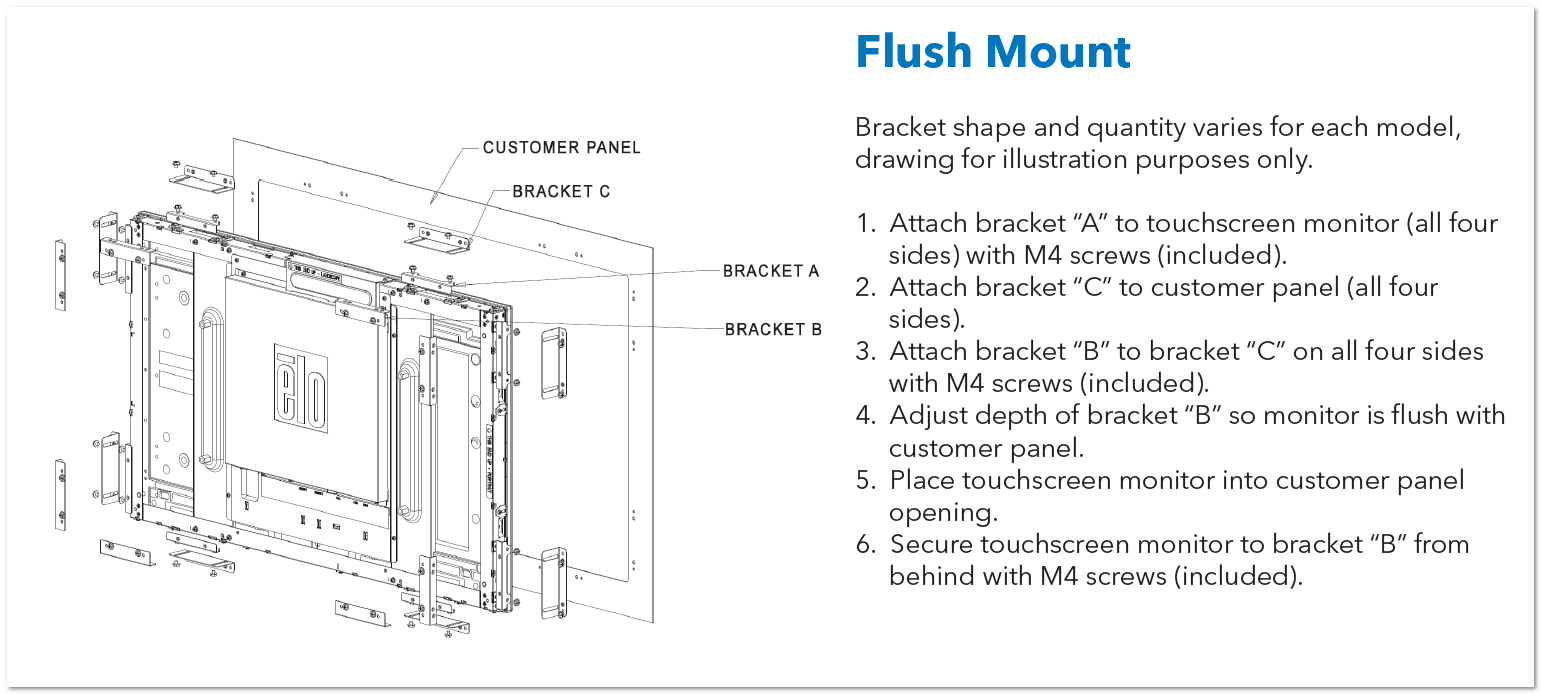

Du QIG

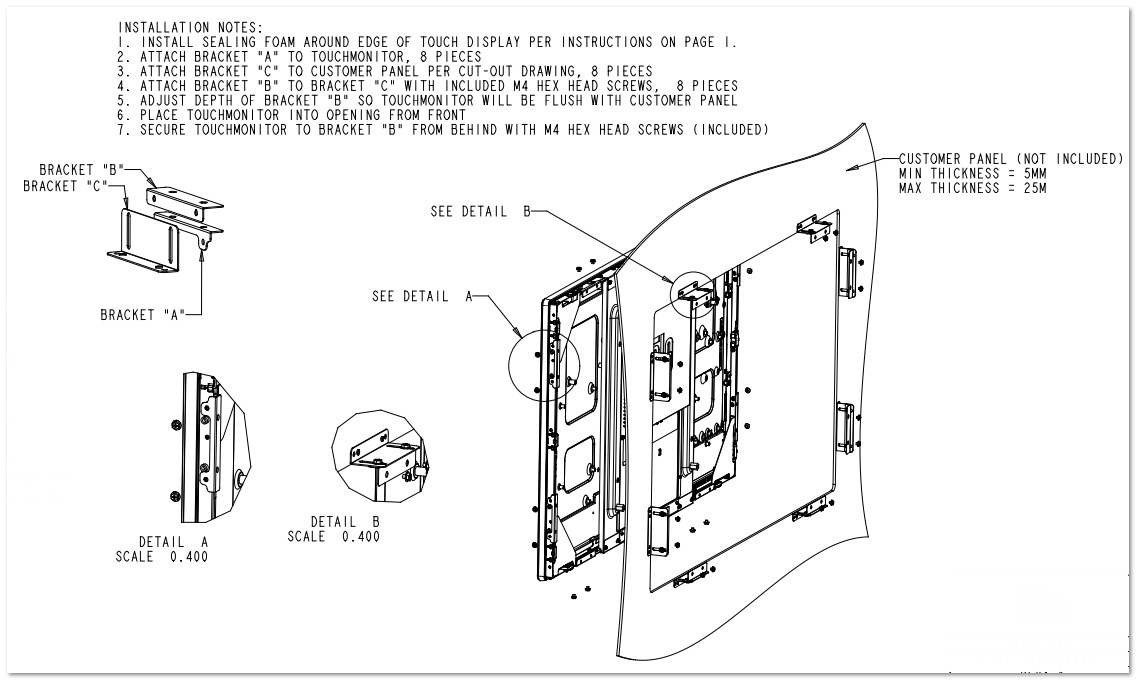

Du dessin dimensionnel 3263L :

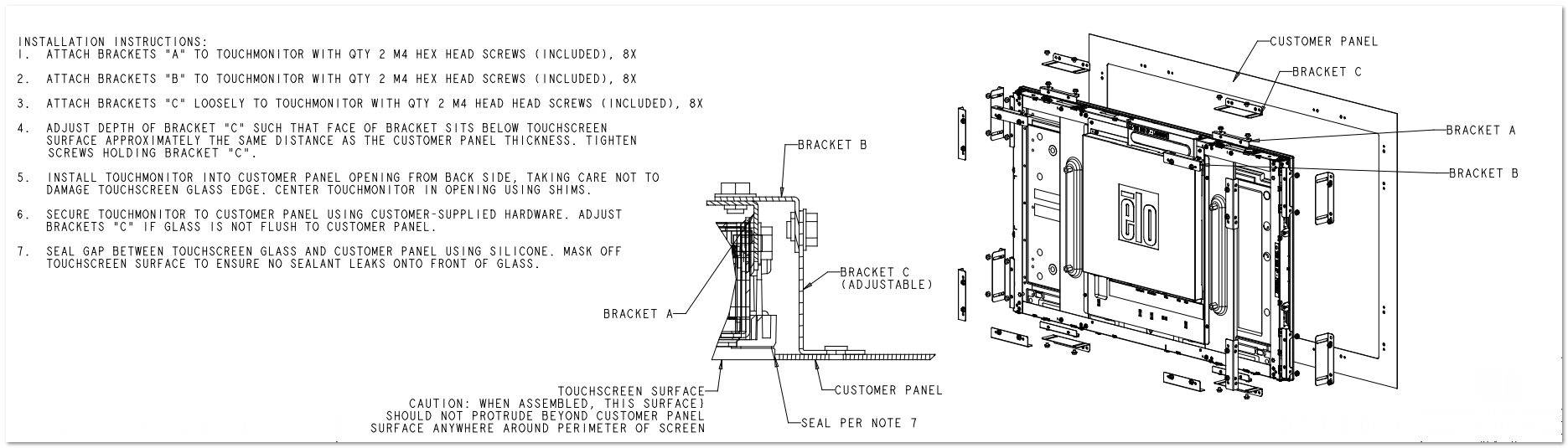

Du dessin dimensionnel 4363L :
