Benvenuto nel Supporto Elo

Driver, informazioni sui prodotti, risposte tecniche e altro ancora.

Dove posso trovare informazioni sul P/N: E038989 Supporto a palo posteriore per la serie X?

Questo articolo fornisce informazioni su P/N: E038989 supporto a palo rivolto verso il retro per la serie X

Di seguito sono riportate informazioni per Elo P/N: E038989 supporto a palo rivolto verso il retro per X-Series AIO TouchComputer.

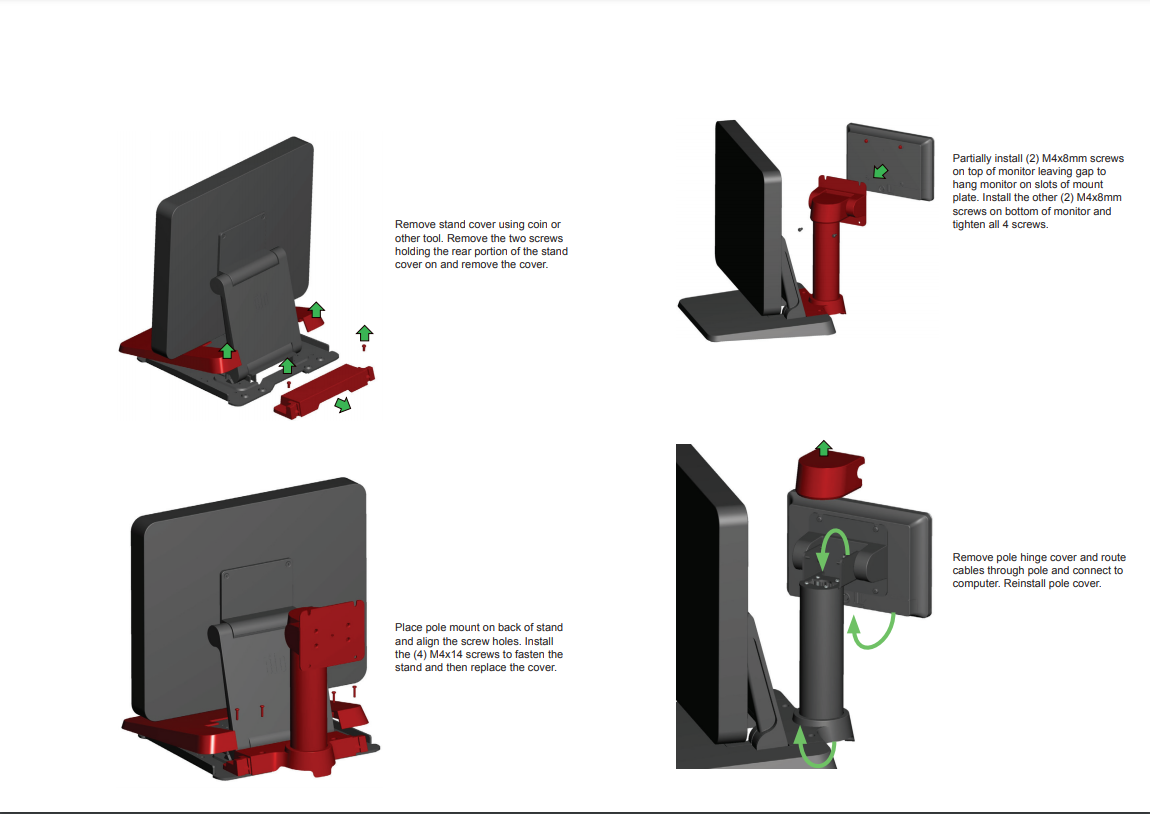

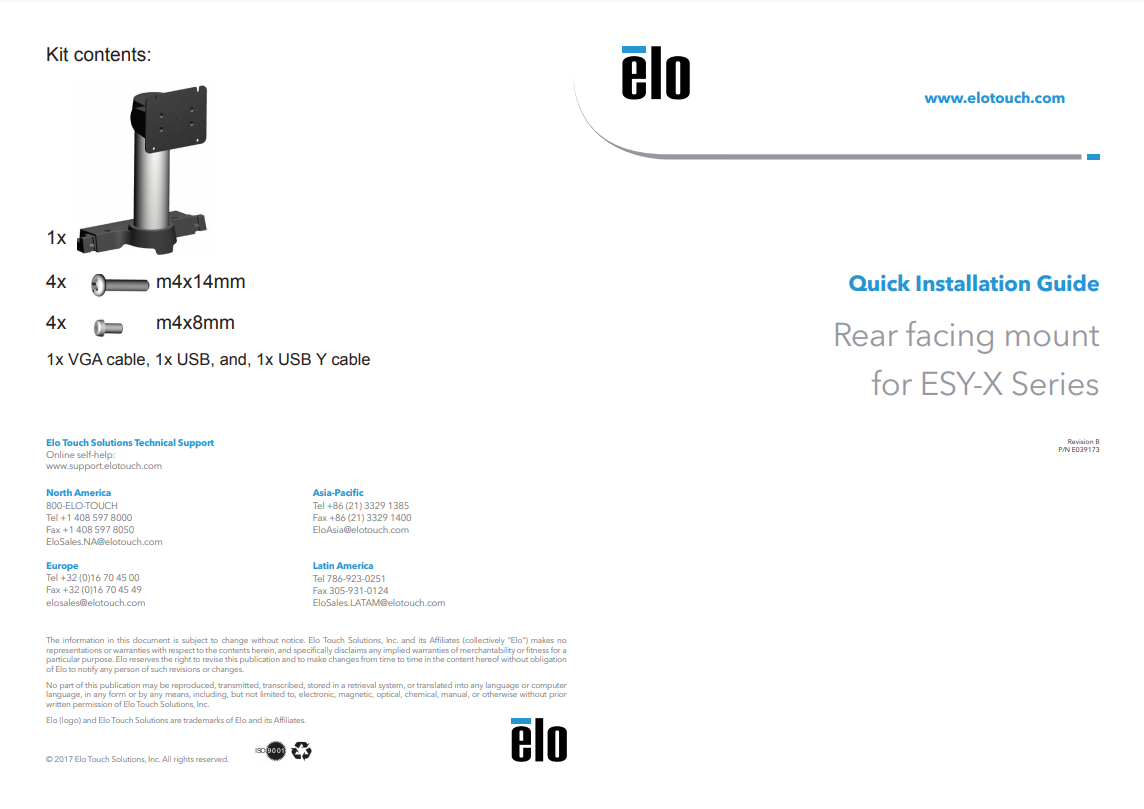

Guida all'installazione rapida:

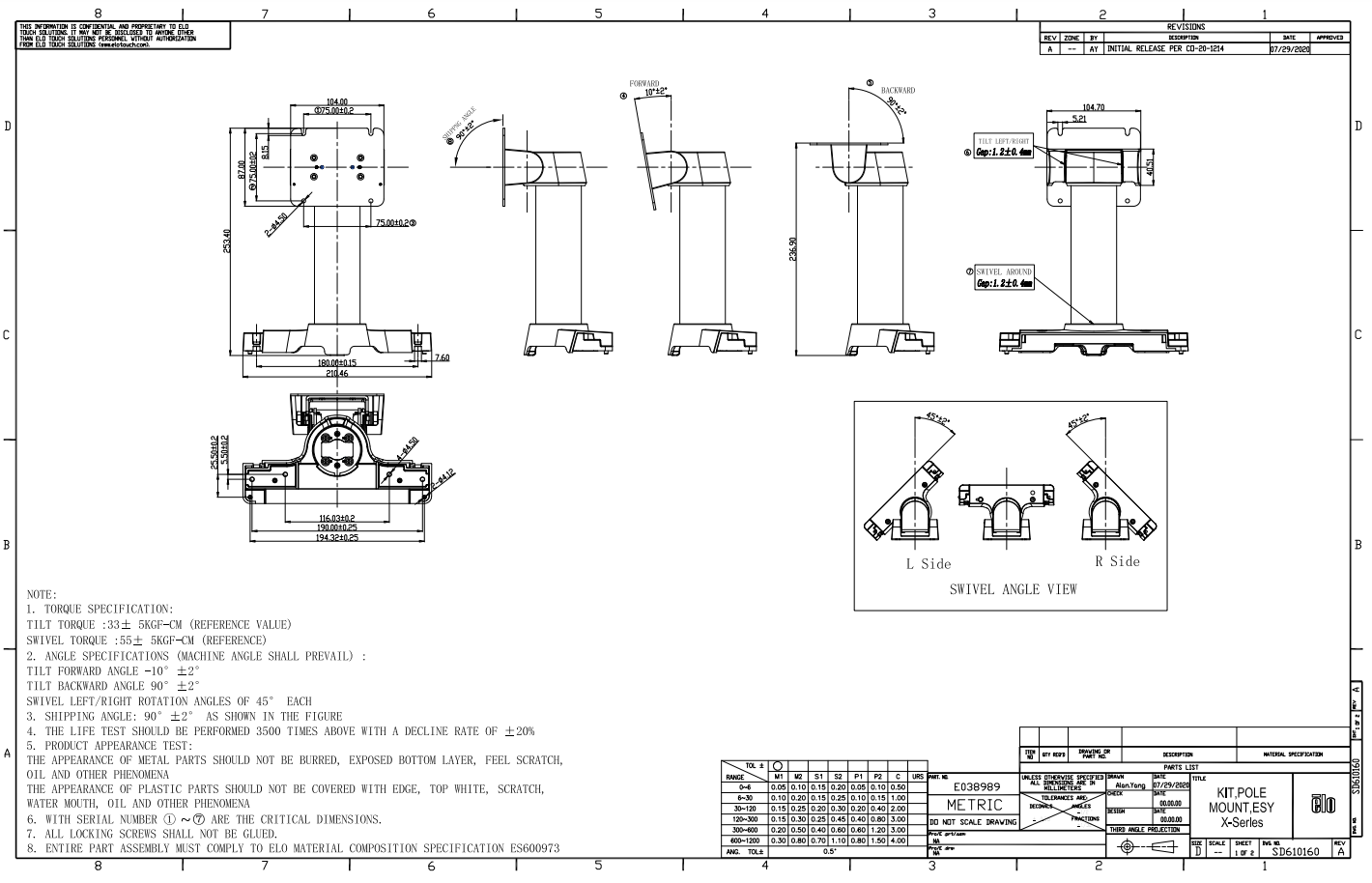

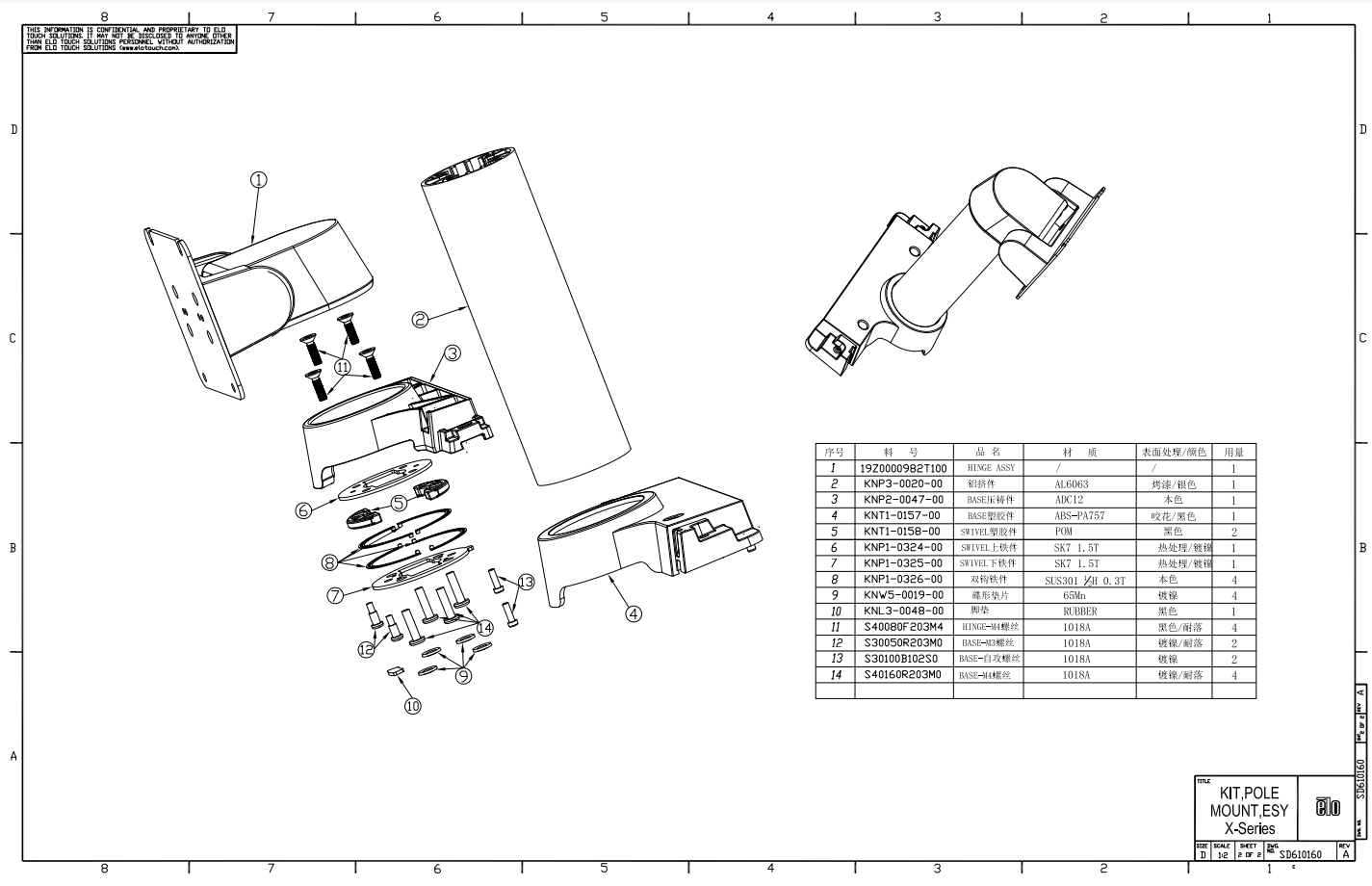

Disegni dimensionali:

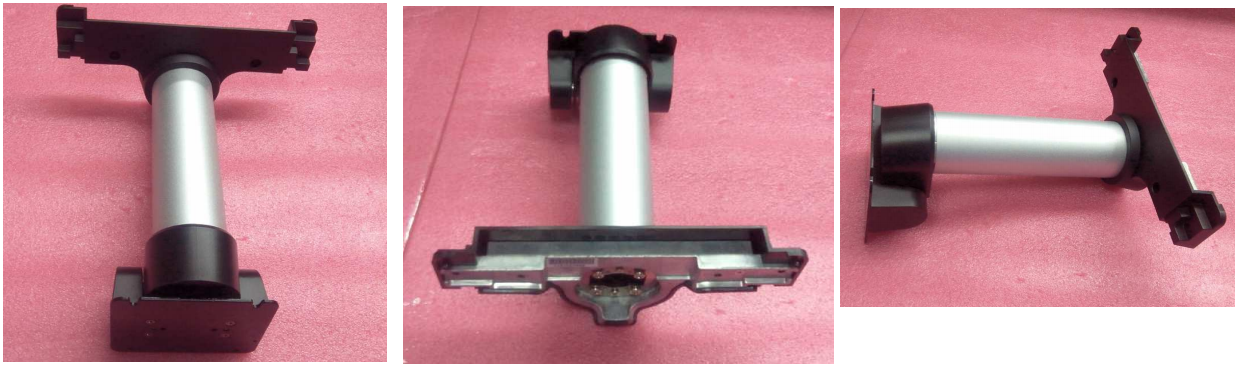

Foto:
