Dove posso trovare i disegni dimensionali del kit di montaggio su palo da 6 pollici E047458?

Questo articolo fornisce i disegni dimensionali del kit di montaggio su palo E047458 da 6 pollici come immagine

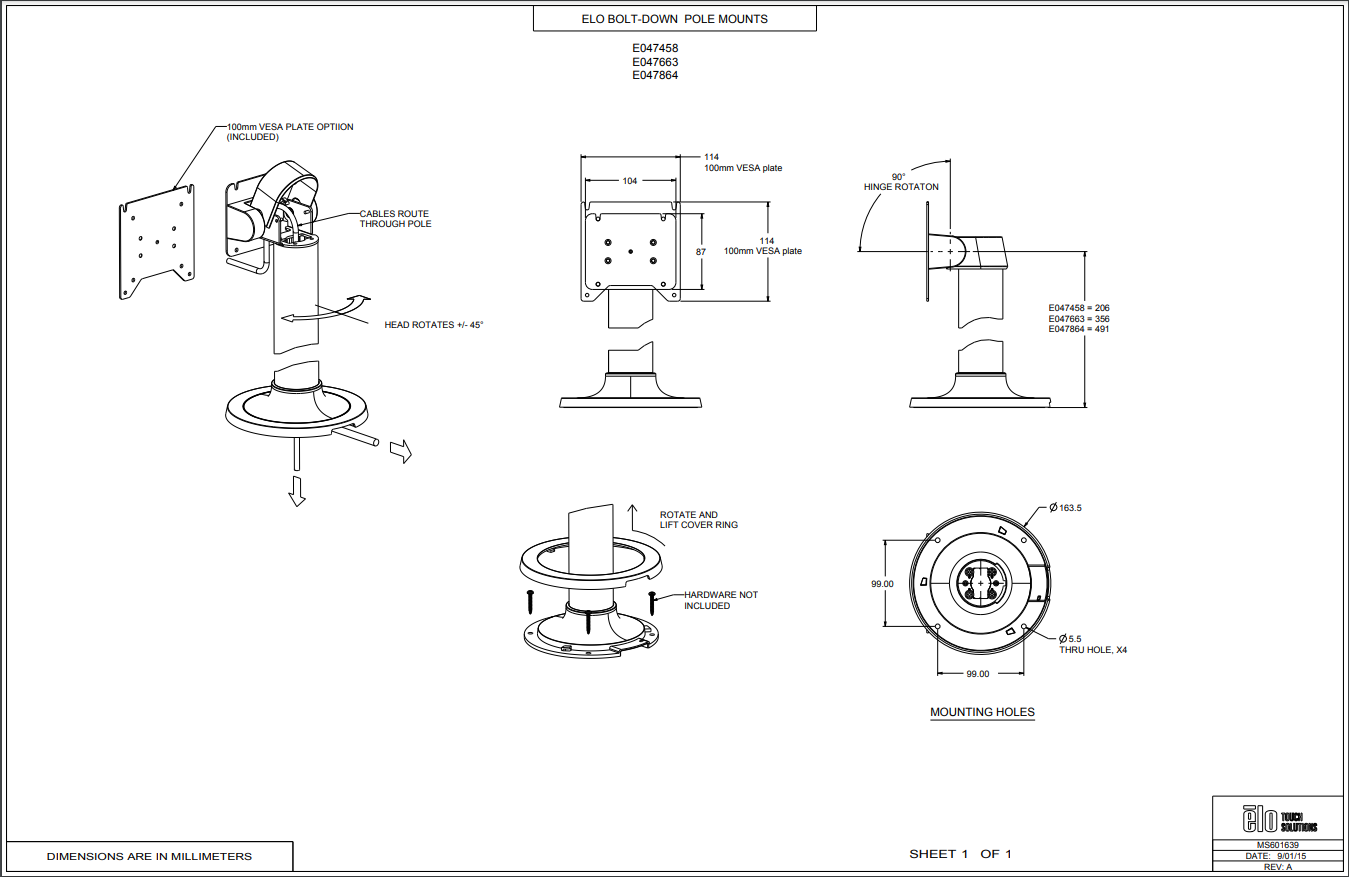

Disegni dimensionali del kit di montaggio su palo E047458 da 6 pollici

Il disegno qui sotto è anche sul sito web di Elo QUI

Richiedi un disegno CAD QUI

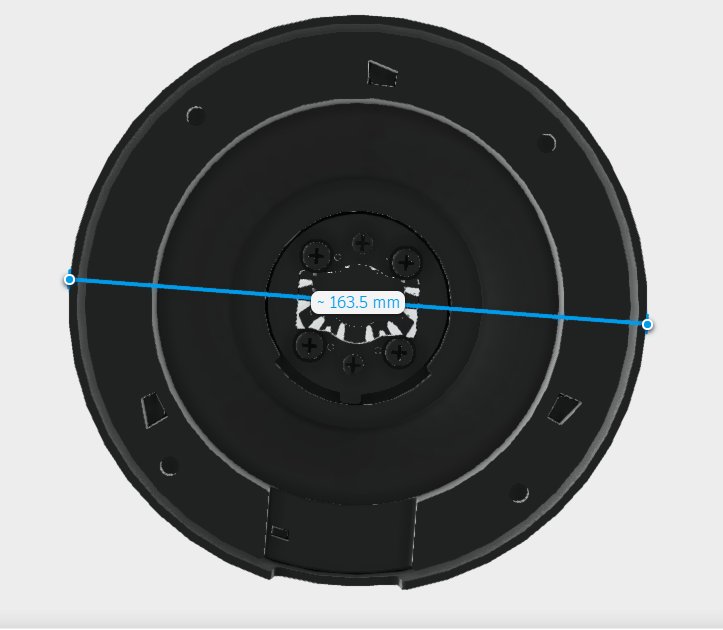

Di seguito è mostrata la misura del diametro della base del supporto = 163,5 mm
