Dove posso trovare la pinout del connettore LVDS sui moduli display Elo?

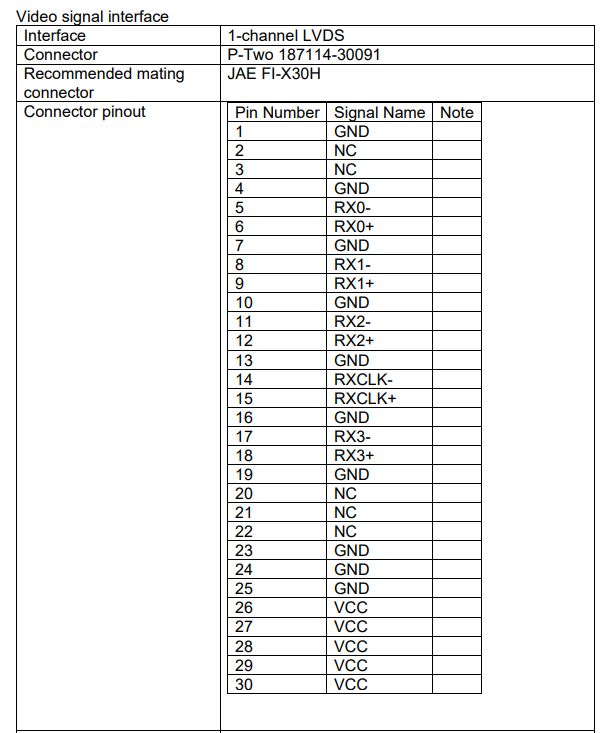

Questo articolo mostra il pin-out del connettore LVDS sul modulo display Elo da 15,6 pollici, P/N:E270963
