Benvenuto nel Supporto Elo

Driver, informazioni sui prodotti, risposte tecniche e altro ancora.

Dove posso trovare il pin-out del connettore LVDS per il modulo display Elo da 7 pollici?

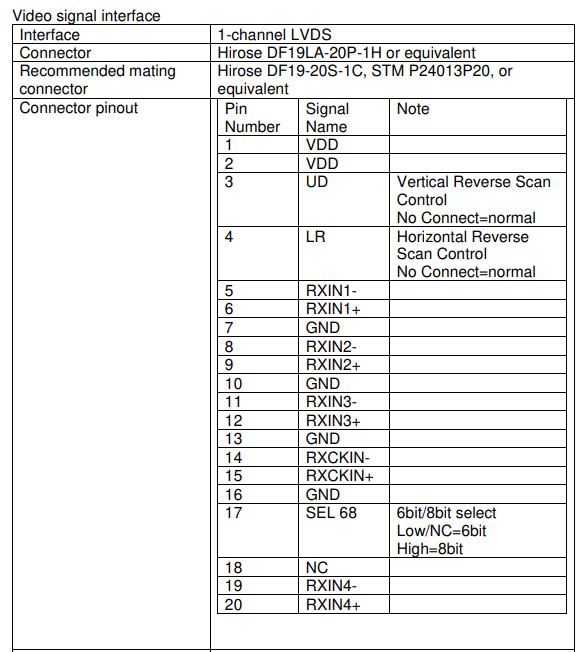

Questo articolo mostra il pin-out per il connettore LVDS sul modulo display Elo da 7 pollici, P/N:E271156



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
