Dove posso trovare le specifiche per il connettore LVDS sui moduli di visualizzazione Touchscreen

Di seguito sono riportate le specifiche per il connettore LVDS sui moduli di visualizzazione touchscreen Elo; 7 pollici, 10 pollici e 15 pollici

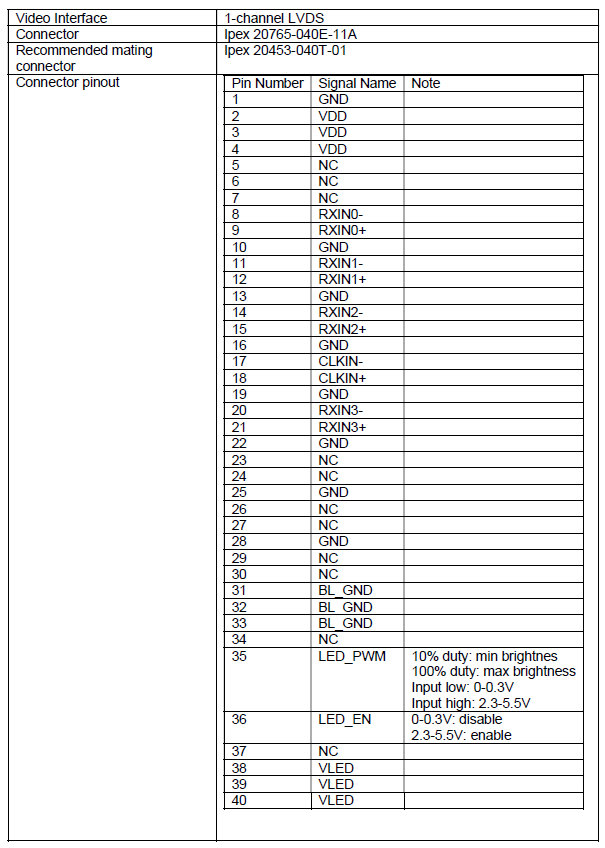

  • E271156: TDM-TP-FZW7.0-E270564-AB-R, modulo di visualizzazione touchscreen Elo TouchPro PCAP da 7 pollici

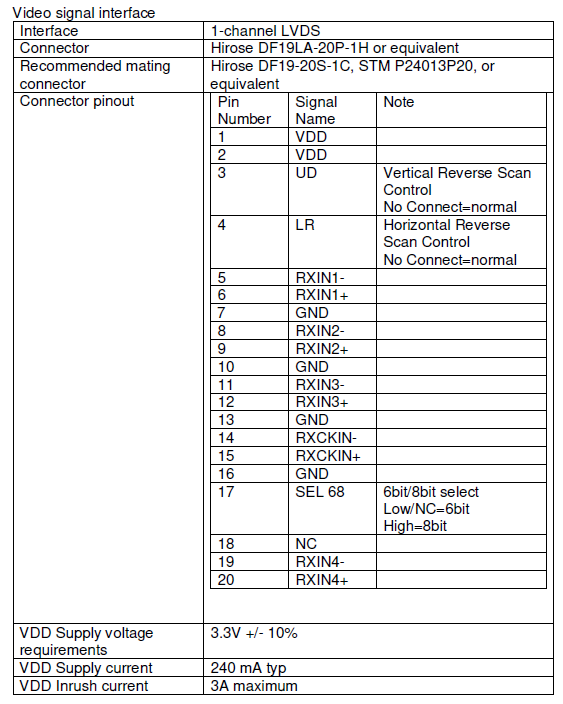

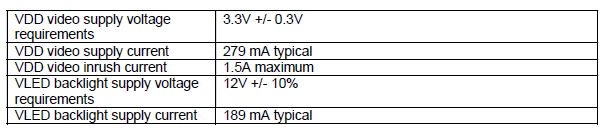

  • E270763: LCM-TP-FZW10.1-E270180-AB-R, modulo di visualizzazione touchscreen Elo TouchPro PCAP da 10,1 pollici

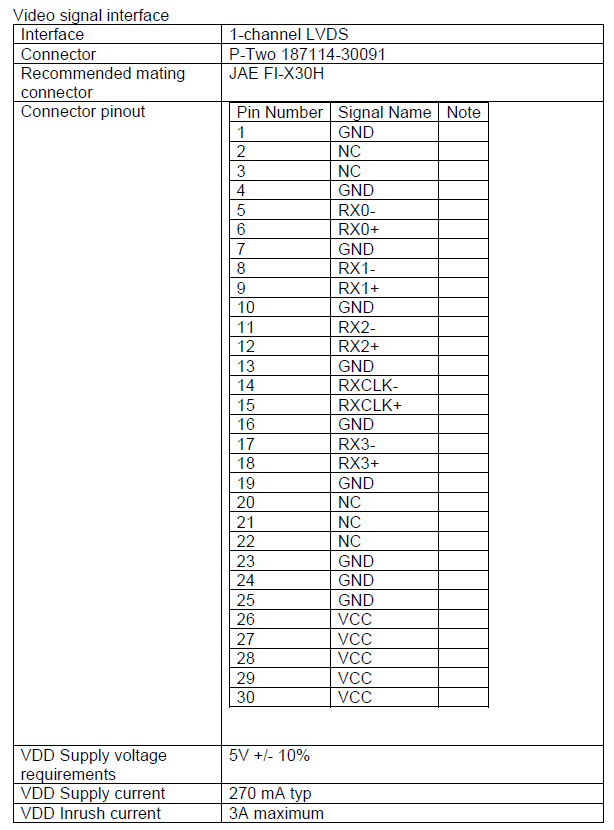

  • E270963: TDM-TP-FZW15.6-E270380-AB-R, modulo di visualizzazione touchscreen Elo TouchPro PCAP da 15,6 pollici
