EloPOSユニット用RJ45からDB9ケーブルのピン配列はどこで確認できますか？

この記事では、EloPOSユニットの箱に同梱されているRJ45からDB9へのケーブルのピン配置について説明します

部品説明: 5K.47T20.501: CABLE RJ45-RS232 900MM EA15PA0-1

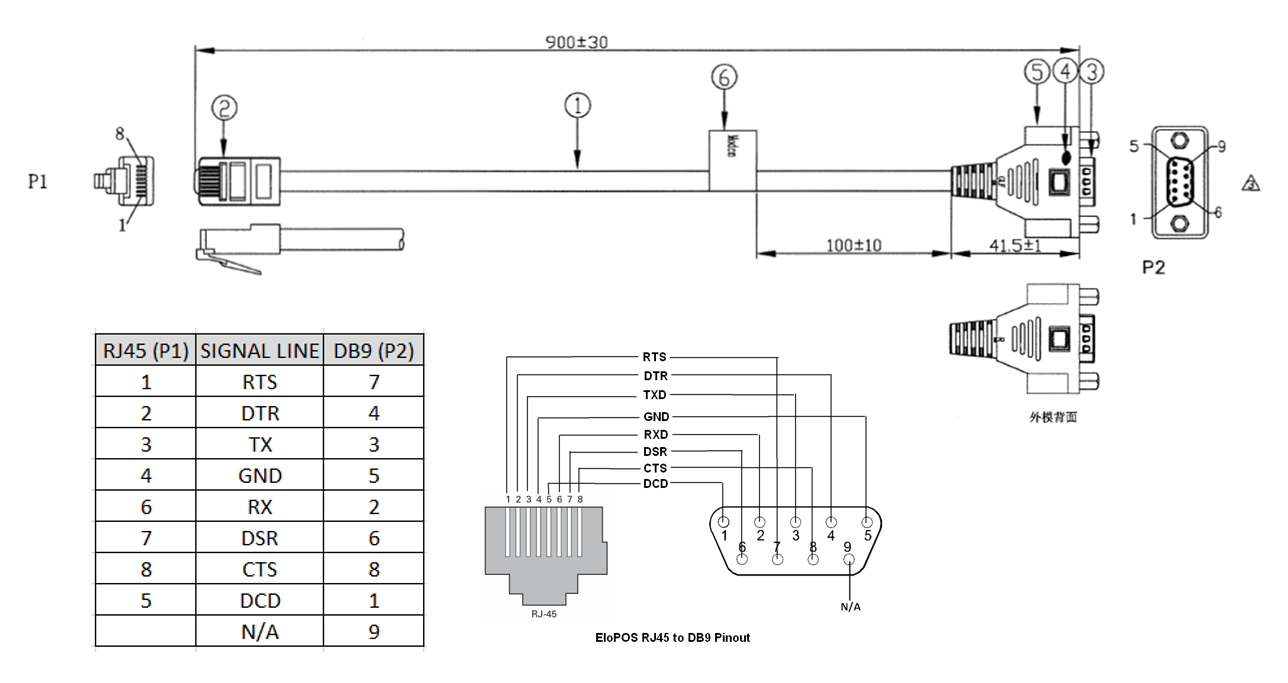

EloPOS RJ45からDB9へのピン配置

ELOPOS RJ45 TO DB9 PINOUT-BC.PNG
