E075614、0700L用USB Yケーブル（廃止）の情報はどこで見つけられますか？

この記事は、Elo部品番号: E075614、0700Lモニター用USB Yケーブルに関する詳細情報を提供します

以下は、Elo部品番号: E075614、0700Lモニター用の8フィートUSB Yケーブル（現在は製造中止）に関する情報です。

パート番号＆説明

  • E075614: CAB-USB-XT-8.2FT-R
  • CAB-KIT-2.5メートルYケーブル（0700L用）
  • 注: 0700Lに接続する端子はMini-USBです

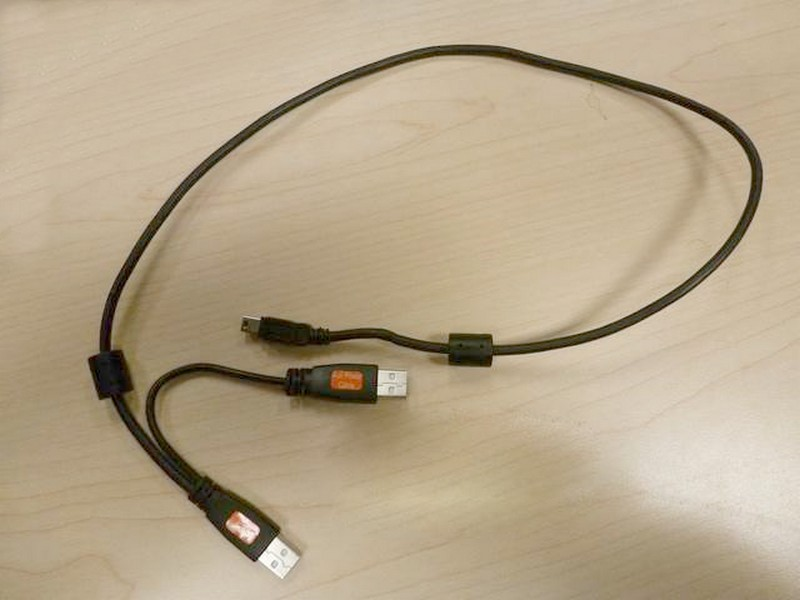

写真

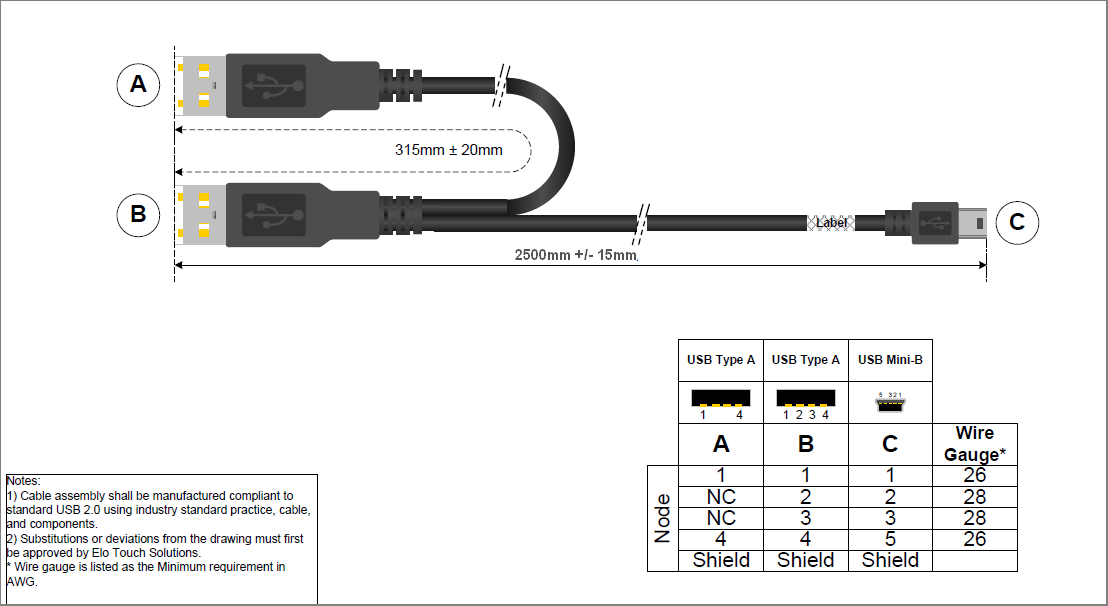

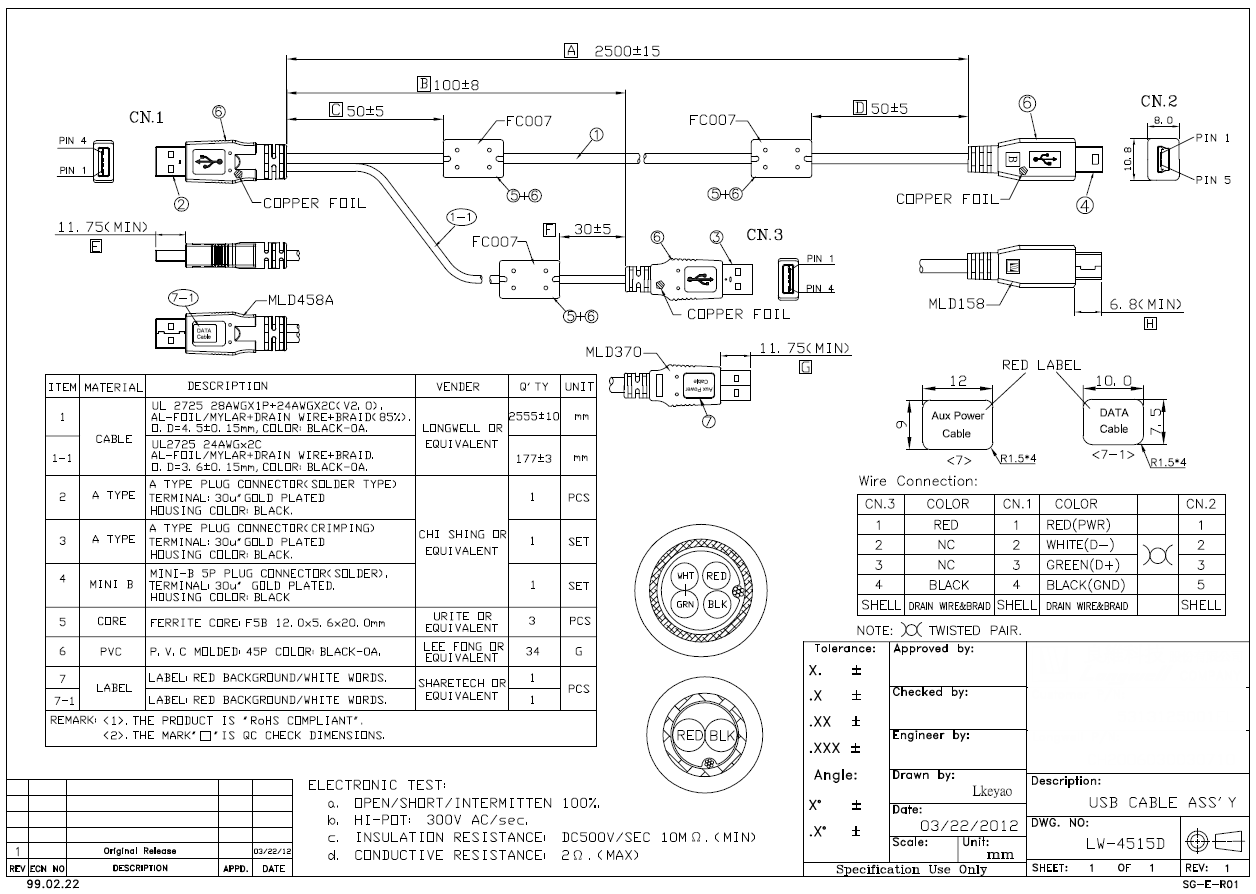

図面
