E641484: Kit, RJ45 to DB9ケーブル、EloPOSに関する情報はどこで見つけられますか？

この記事では、EloPOSシステムに含まれるE641484: Kit, RJ45 to DB9ケーブルの情報をリストします

説明

  • 長さ: 900mm
  • RJ45垂直オスからDB9垂直オス (ストレートスルーケーブルタイプ)

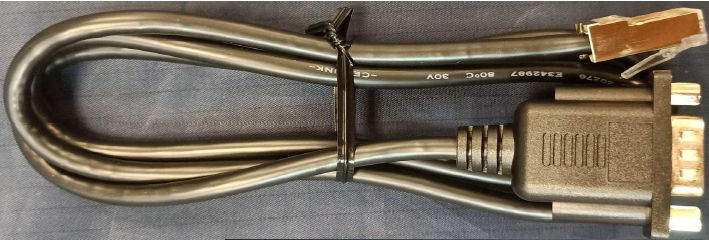

写真

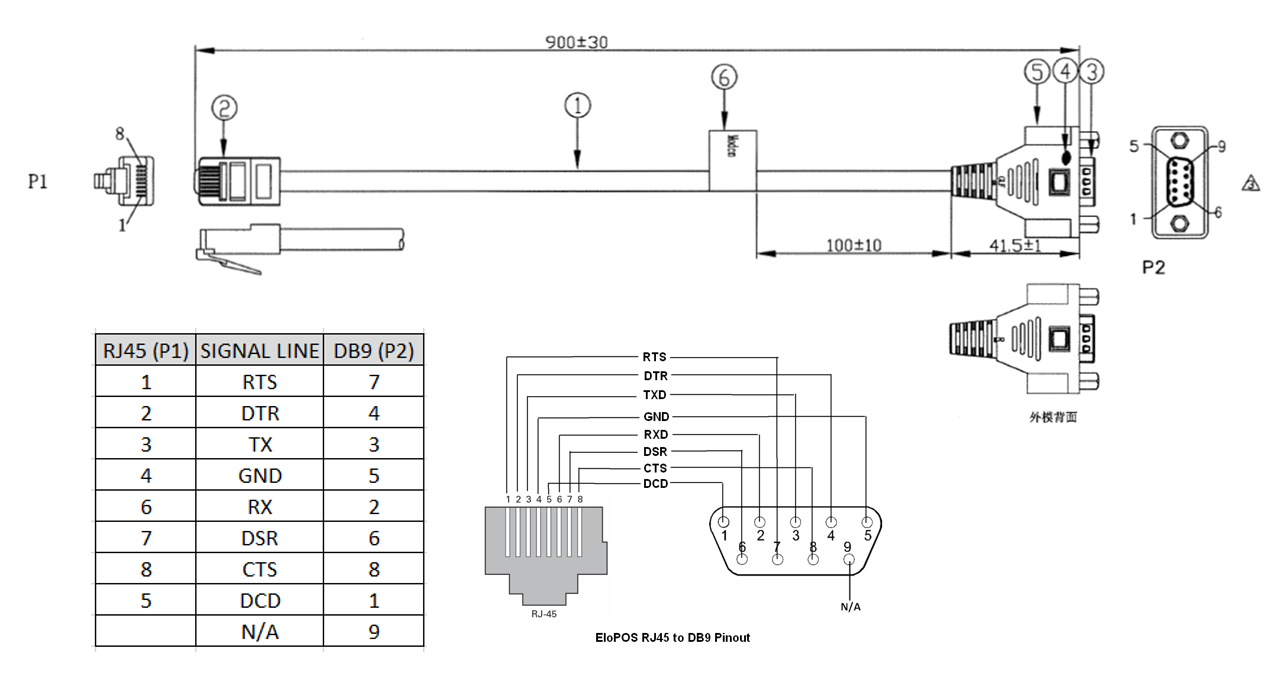

図面とピンアウト
