Elo 기술 지원에 오신 것을 환영합니다

드라이버, 제품 정보, 기술 문의 답변 등.

70 시리즈 OSD 메뉴에 대한 정보는 어디에서 찾을 수 있나요?

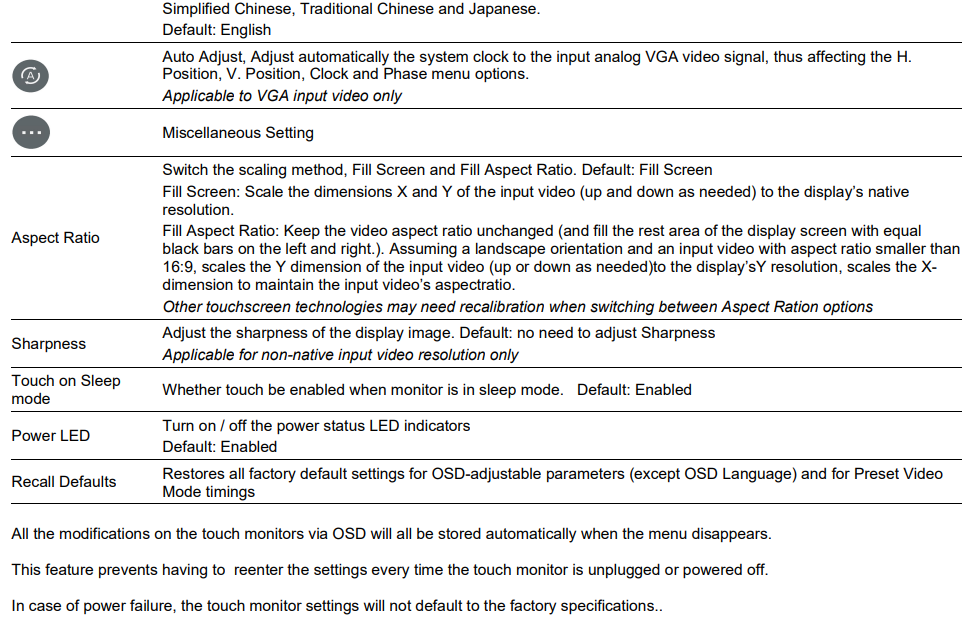

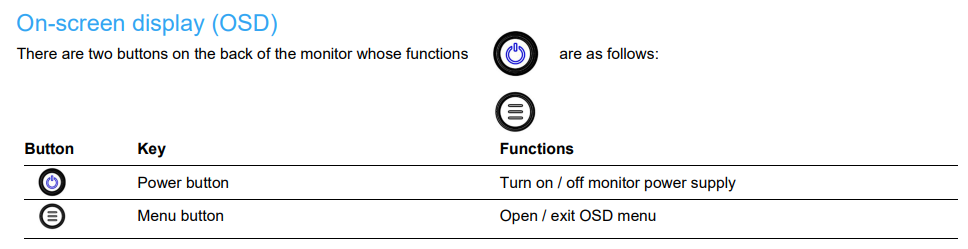

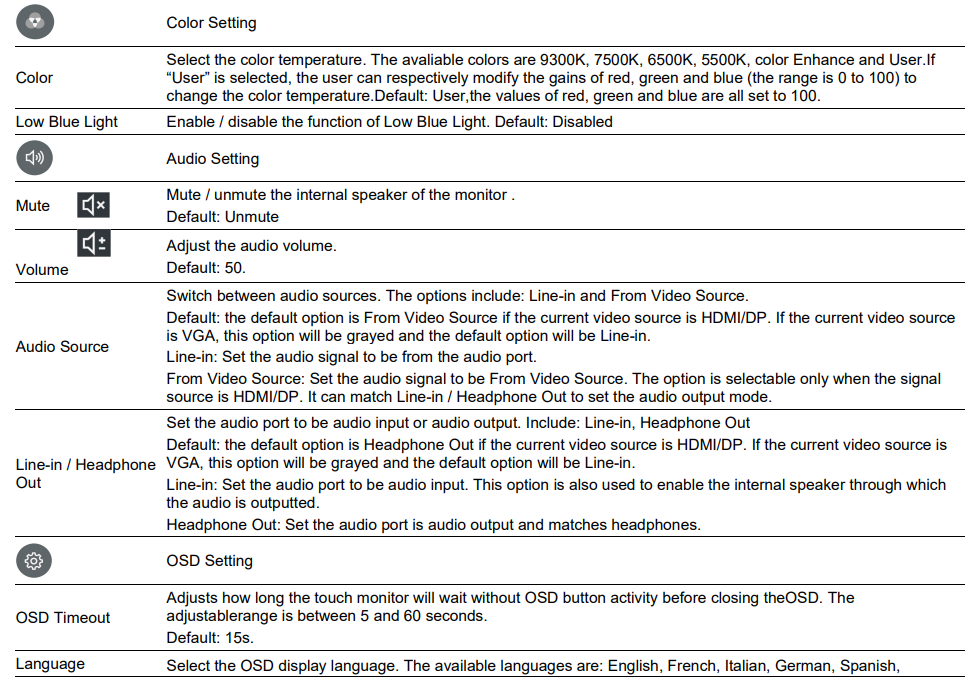

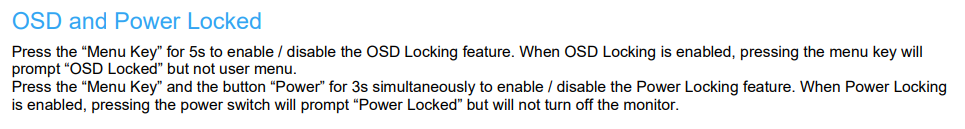

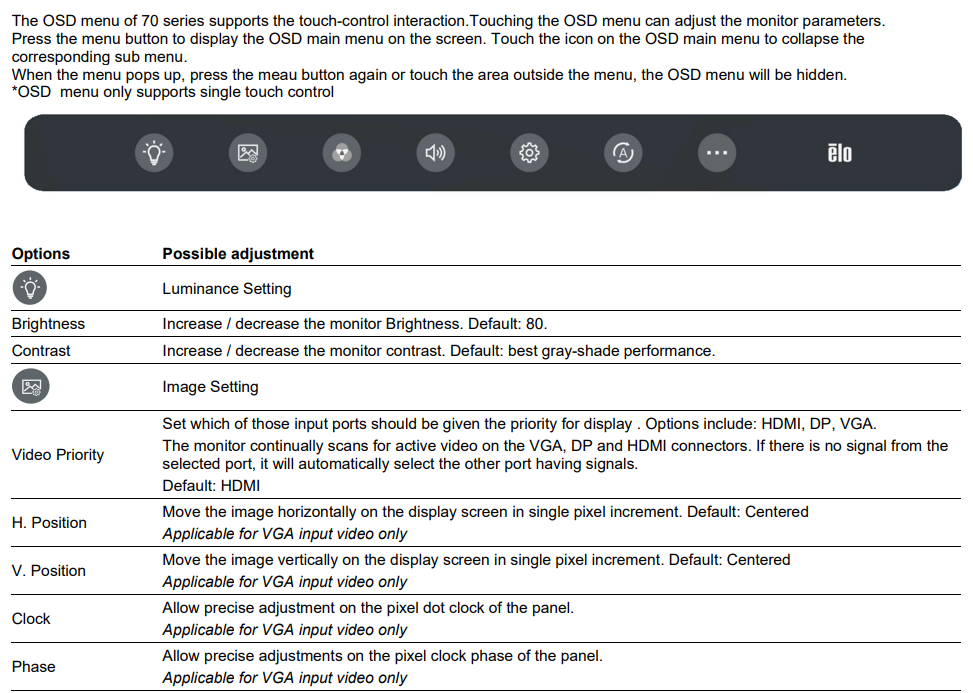

이 문서에서는 70 시리즈 터치 모니터(2270L, 2470L, 2770L)에 내장된 OSD 메뉴를 설명합니다.

이 정보는 70 시리즈 사용자 매뉴얼에서도 확인할 수 있습니다.
