Welkom bij Elo Support

Drivers, productinfo, technische antwoorden en meer.

Waar kan ik informatie vinden over P/N: E038989 Achterwaarts gericht Polmontering voor de X-Series?

Dit artikel biedt informatie over P/N: E038989 wandmontage met achterwaartse kijkrichting voor de X-Series

hieronder vindt u informatie over Elo P/N: E038989 Achterwaartse Wandmontage voor X-Series AIO TouchComputer.

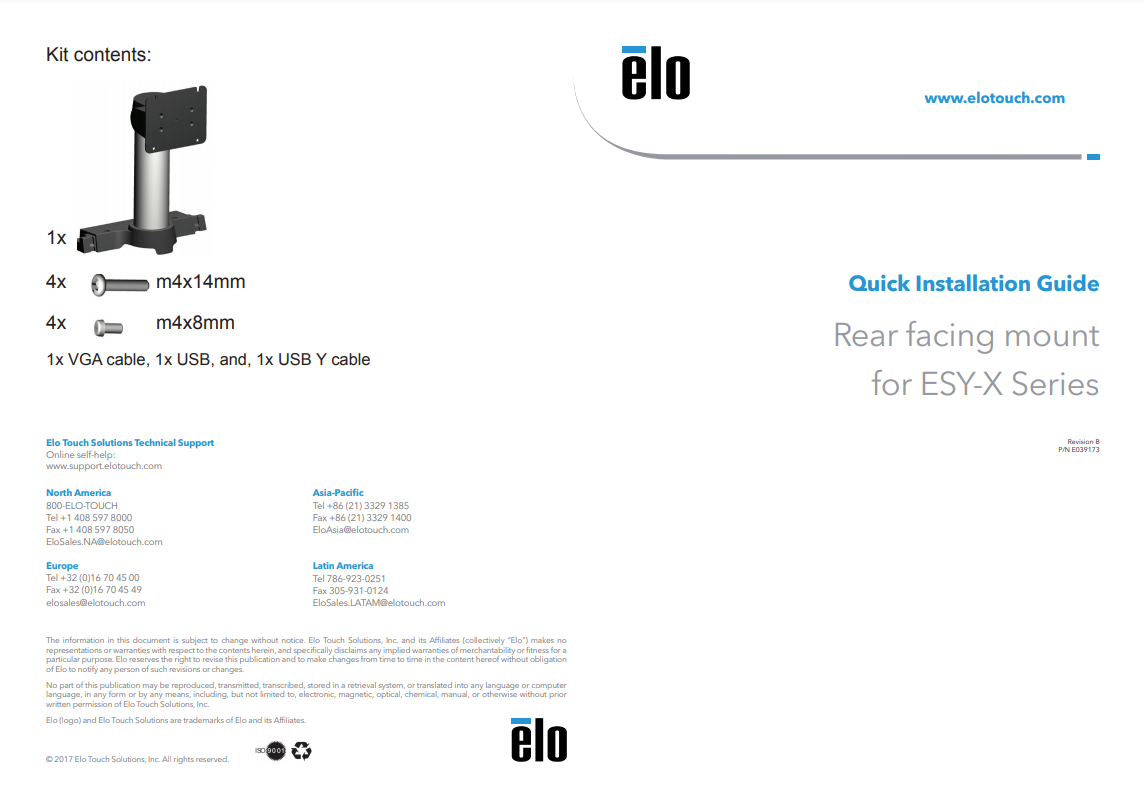

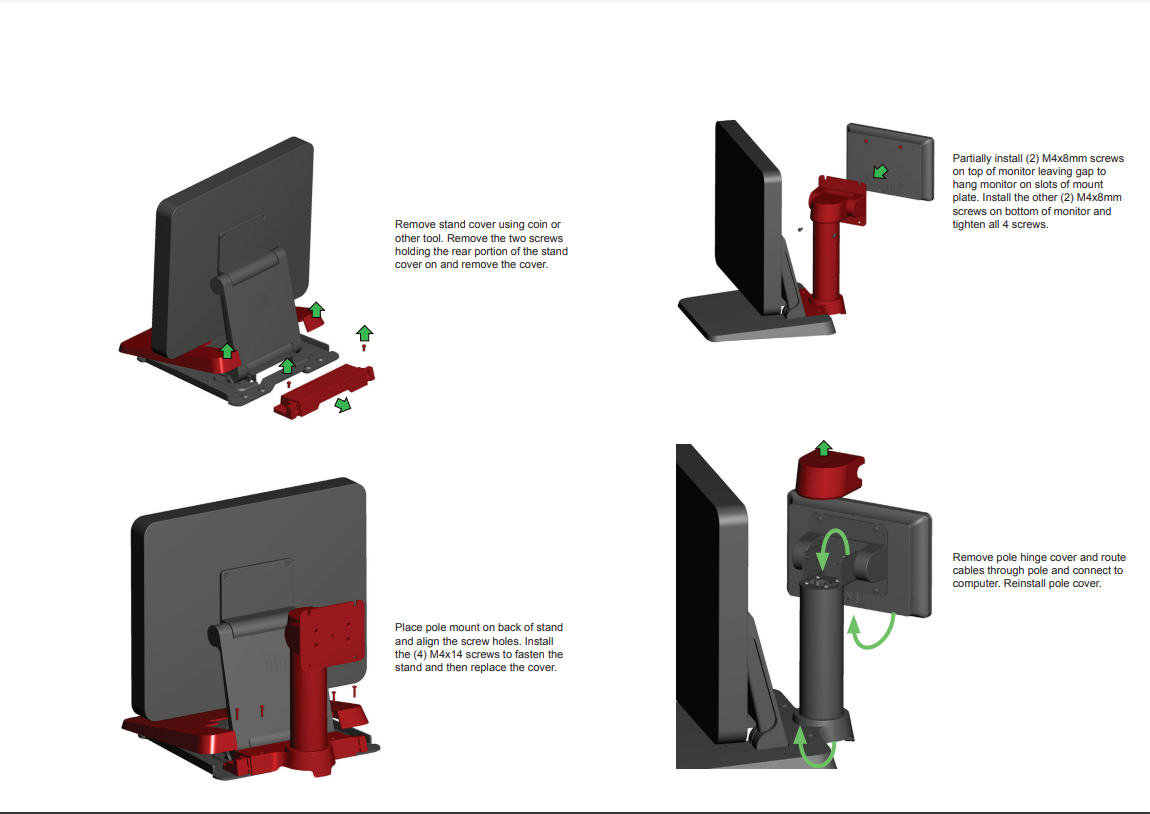

Snel Installatiegids:

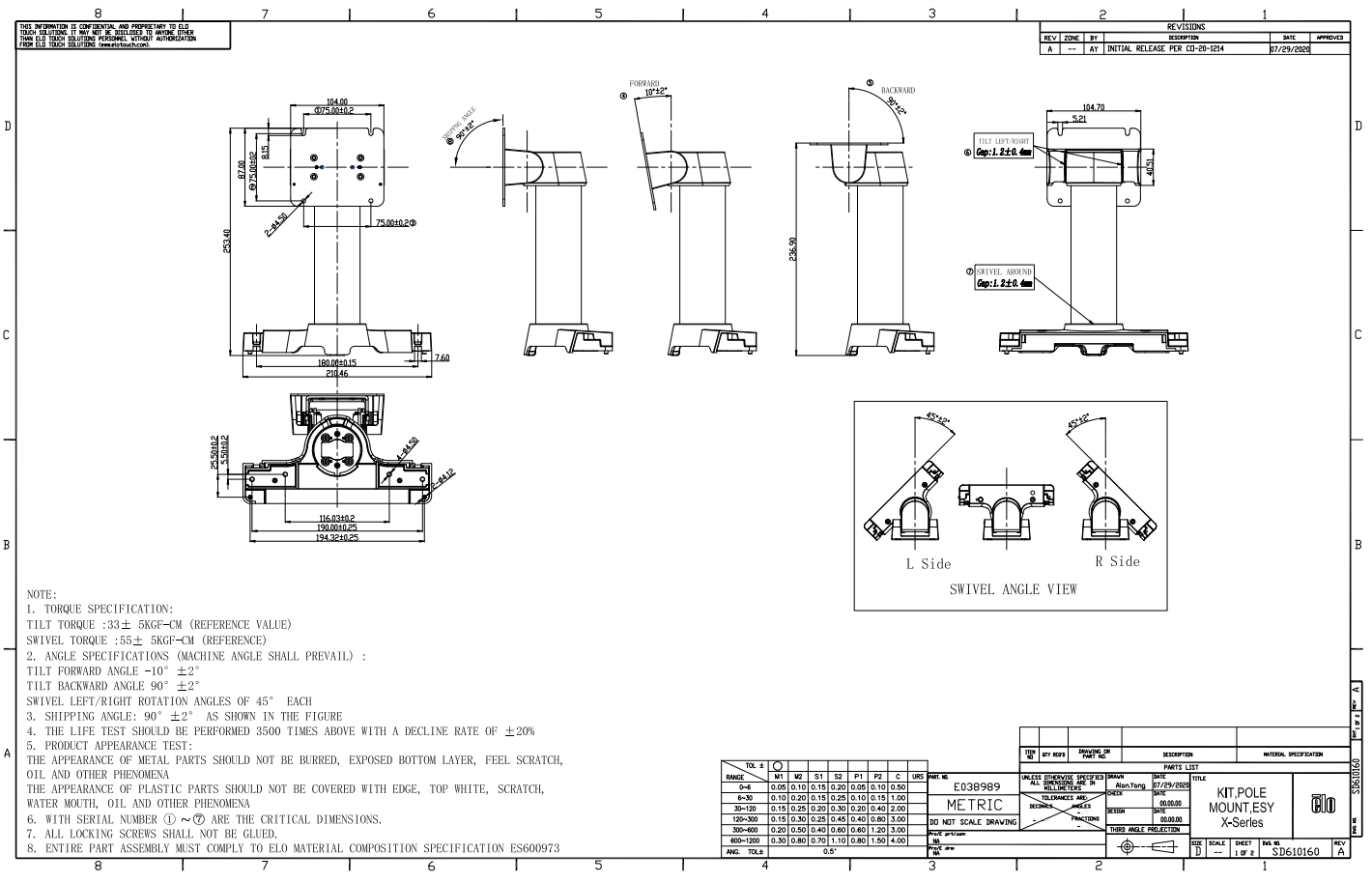

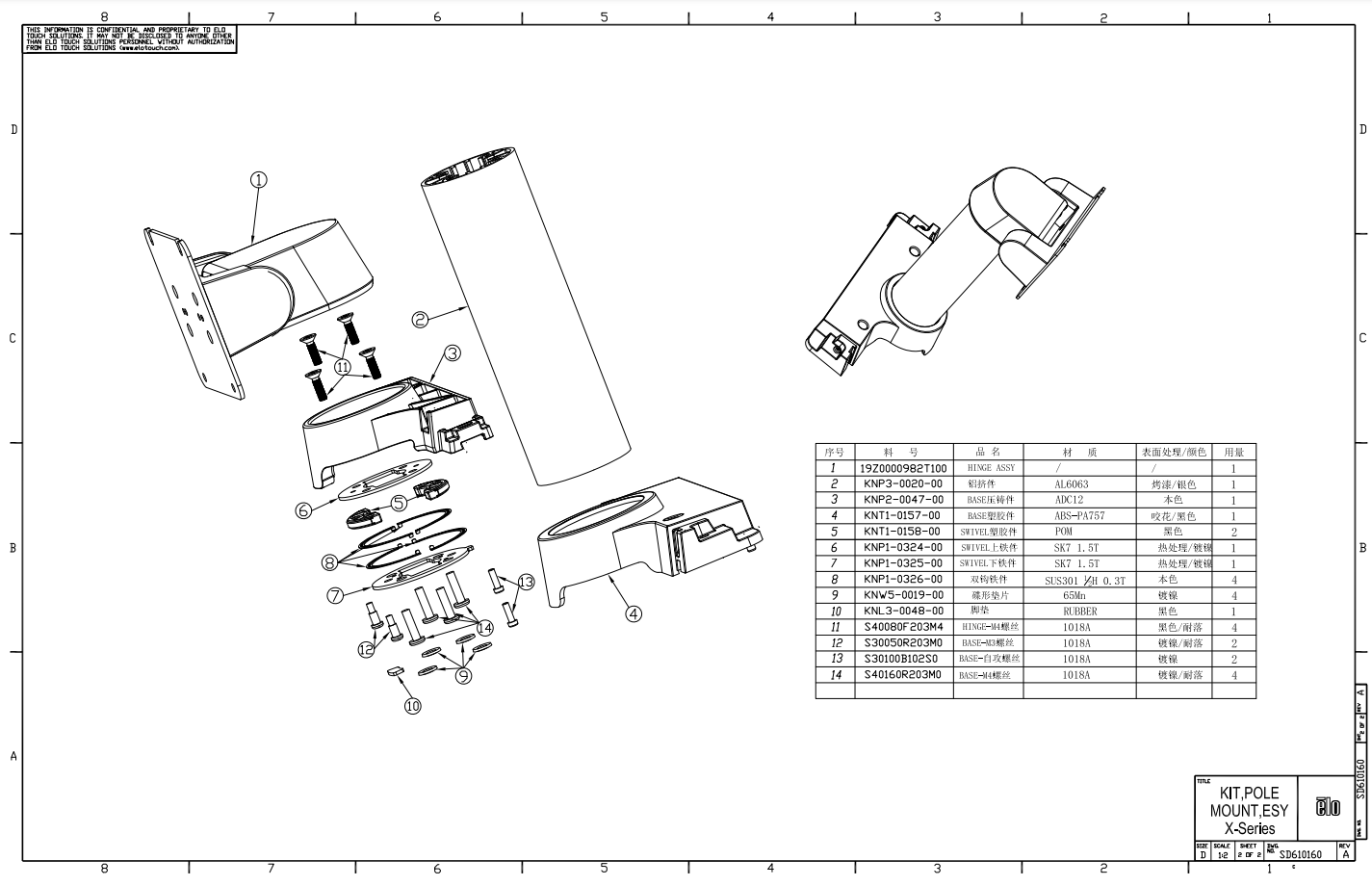

Dimensionale Tekeningen:

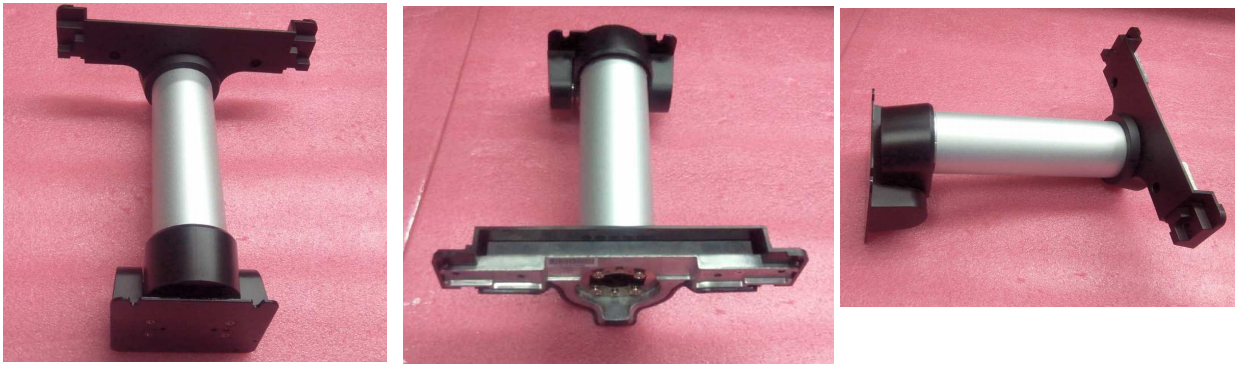

Foto's:
