Waar kan ik de dimensionale tekeningen van de E047458, 6-Inch Pole Mount Kit vinden?

Dit artikel biedt de E047458, 6-Inch Pole Mount Kit dimensionale tekeningen als afbeelding

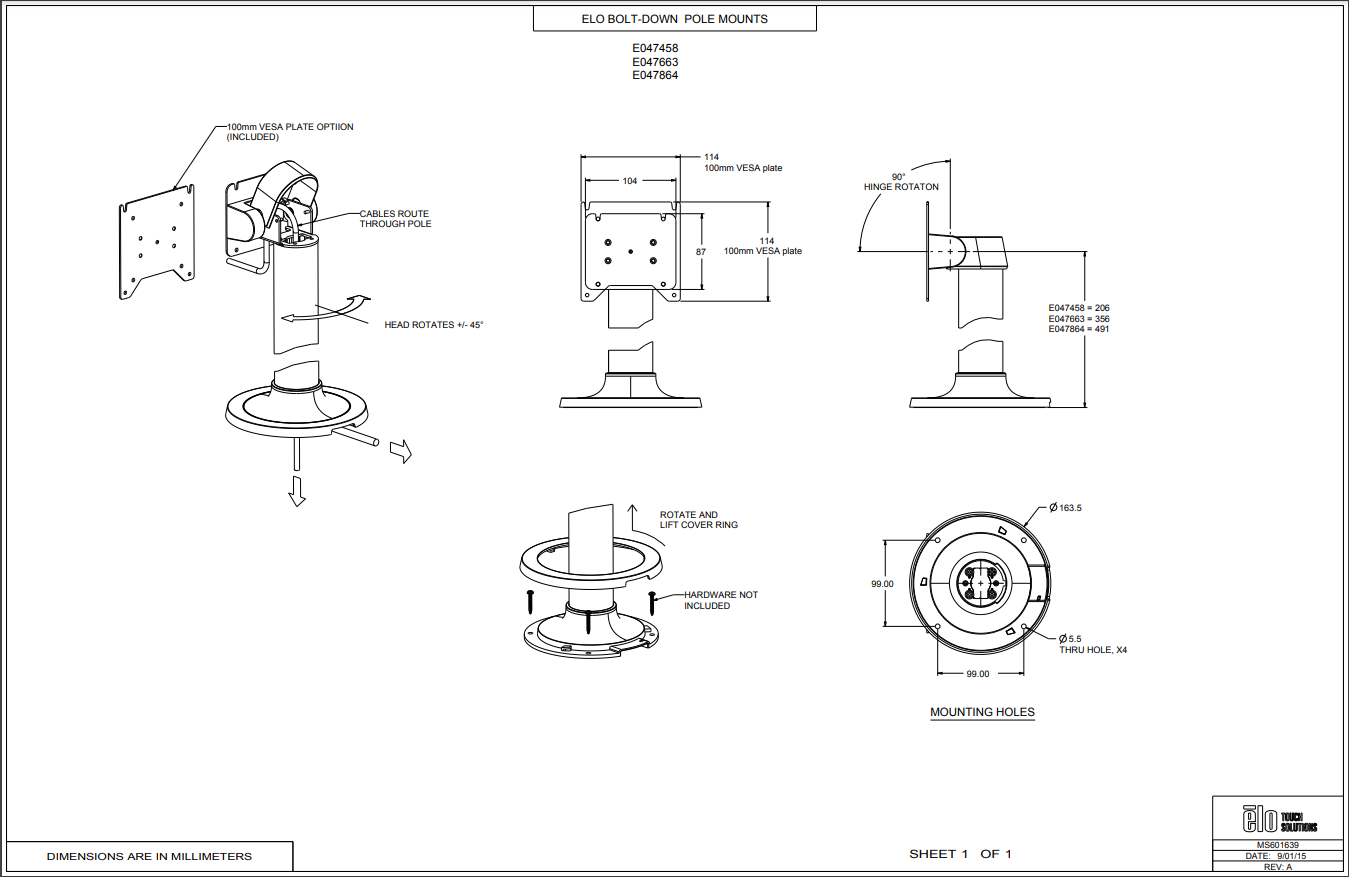

E047458, 6-Inch Pole Mount Kit dimensionale tekeningen

De onderstaande tekening is ook te vinden op de Elo-website HIER

Vraag een CAD-tekening aan HIER

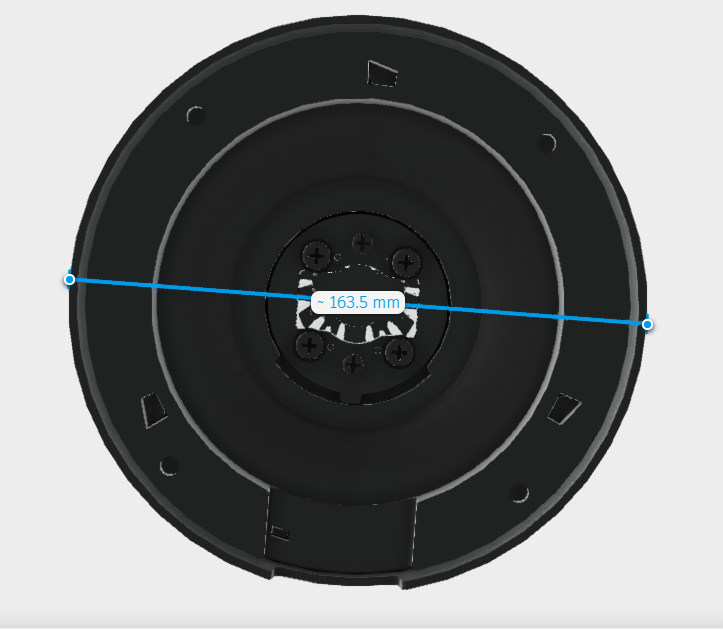

Hieronder staat de basisdiameter van de standaard = 163,5 mm
