Waar kan ik een pinout vinden voor de LVDS-connector op de Elo 10-inch Display Module?

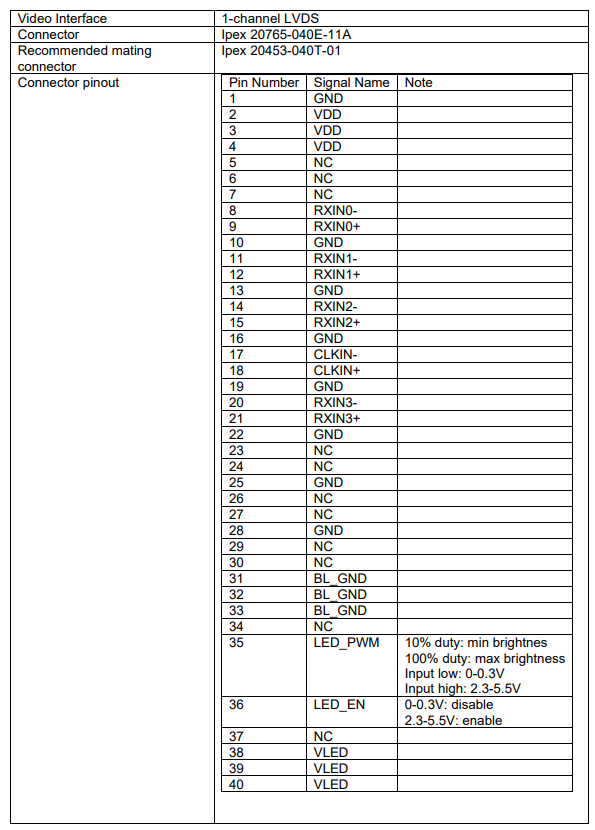

Dit artikel toont de pin-out op de Elo 10,1-inch Display Module LVDS-connector, P/N:E270763



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
