Waar kan ik een pinout van de LVDS-connector op de Elo Display Modules vinden?

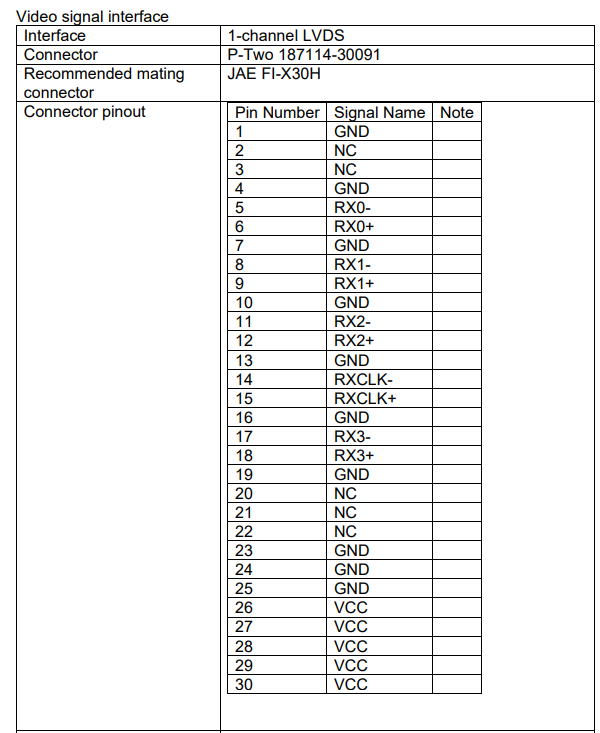

Dit artikel toont de pin-out van de LVDS-connector op de Elo 15,6-inch Display Module, P/N:E270963
