Waar kan ik een pinout van de LVDS-connector voor de Elo 7-inch Display Module vinden?

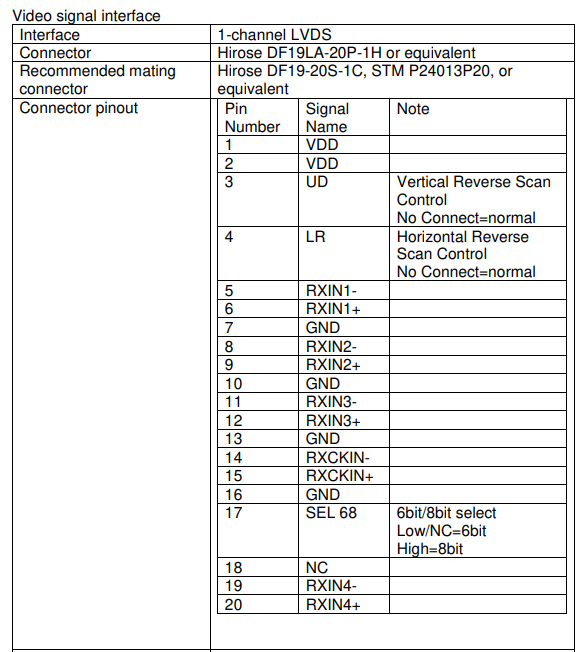

Dit artikel toont de pinout voor de LVDS-connector op de 7-Inch Elo Display Module, P/N:E271156



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
