Welkom bij Elo Support

Drivers, productinfo, technische antwoorden en meer.

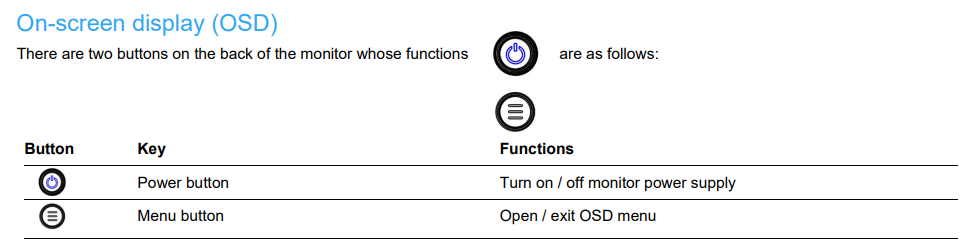

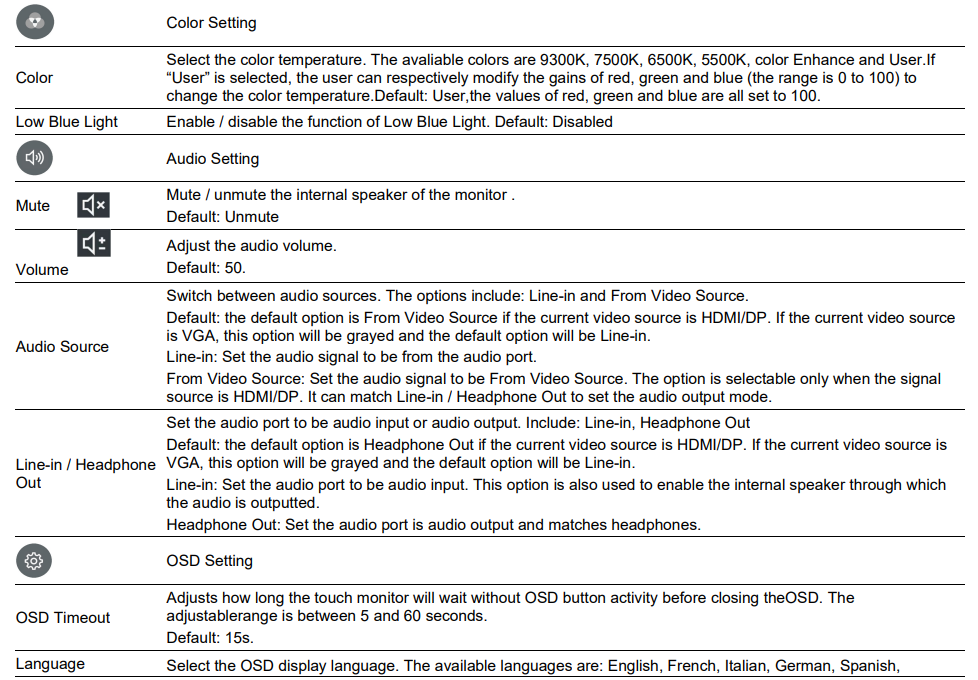

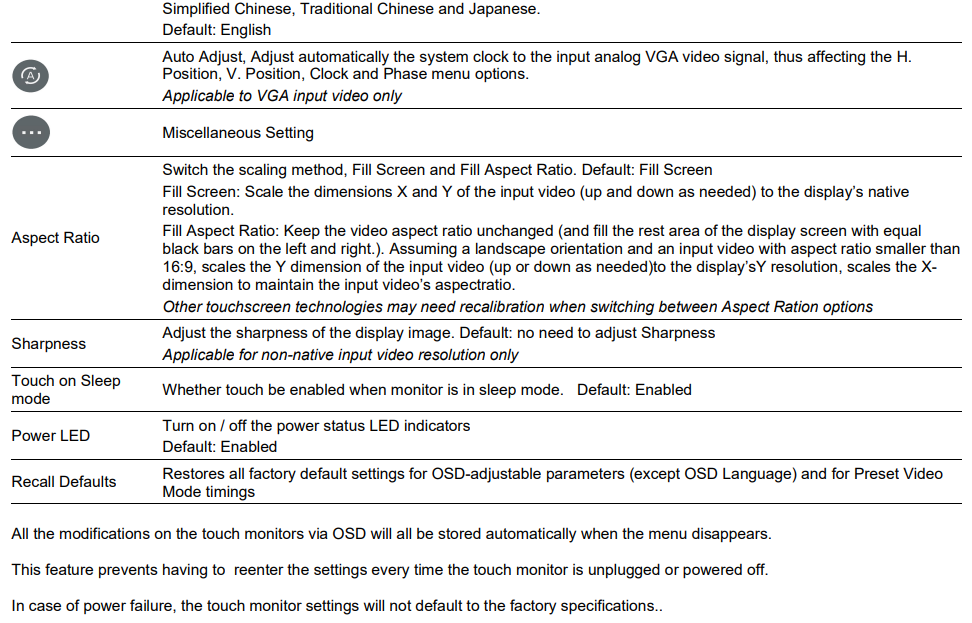

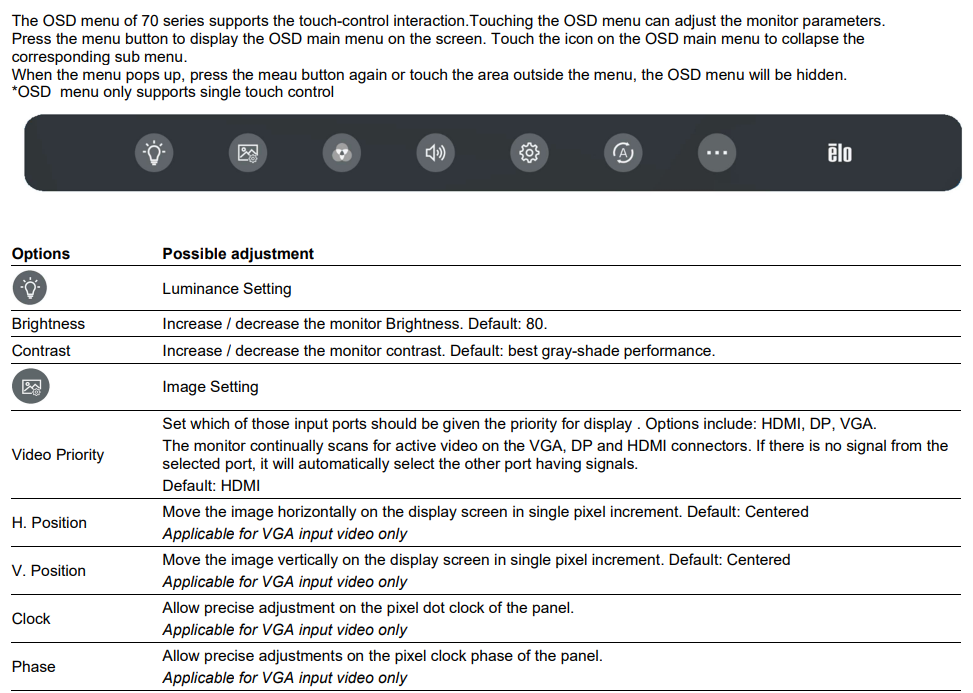

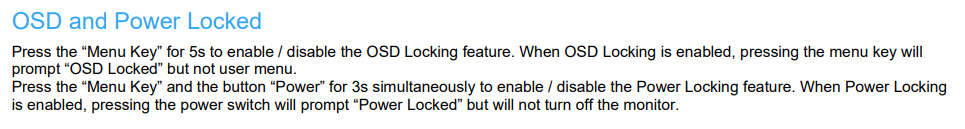

Waar kan ik informatie vinden over het 70-Series OSD-menu?

Dit artikel beschrijft het OSD-menu dat is ingebouwd in de 70-Series touchmonitors (2270L, 2470L, 2770L)

Deze informatie is ook te vinden in de 70-Series Gebruikershandleiding


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
