Hoe installeer ik de flush mount brackets op de 3263L / 4363L monitor?

Dit artikel laat zien hoe je de flush mount beugels installeert op de 63-Series Open Frame Monitoren (3263L, 4363L)

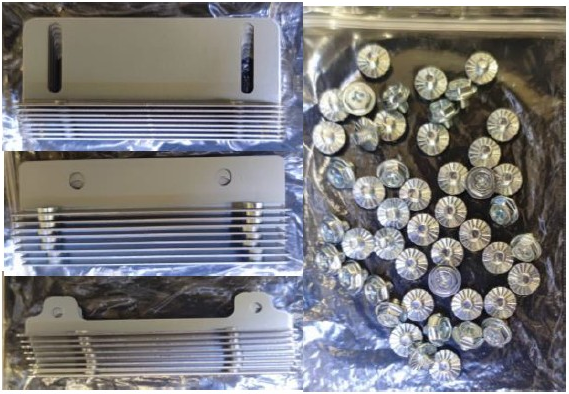

Monitoren omvatten 8 sets Flushmount Beugels 48 stuks Schroeven

  • Vervangende beugelsets kunnen apart worden aangeschaft

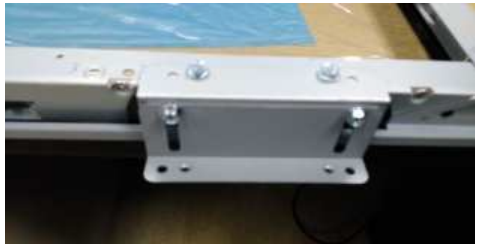

Voorbeeld van geassembleerde beugels op monitor:

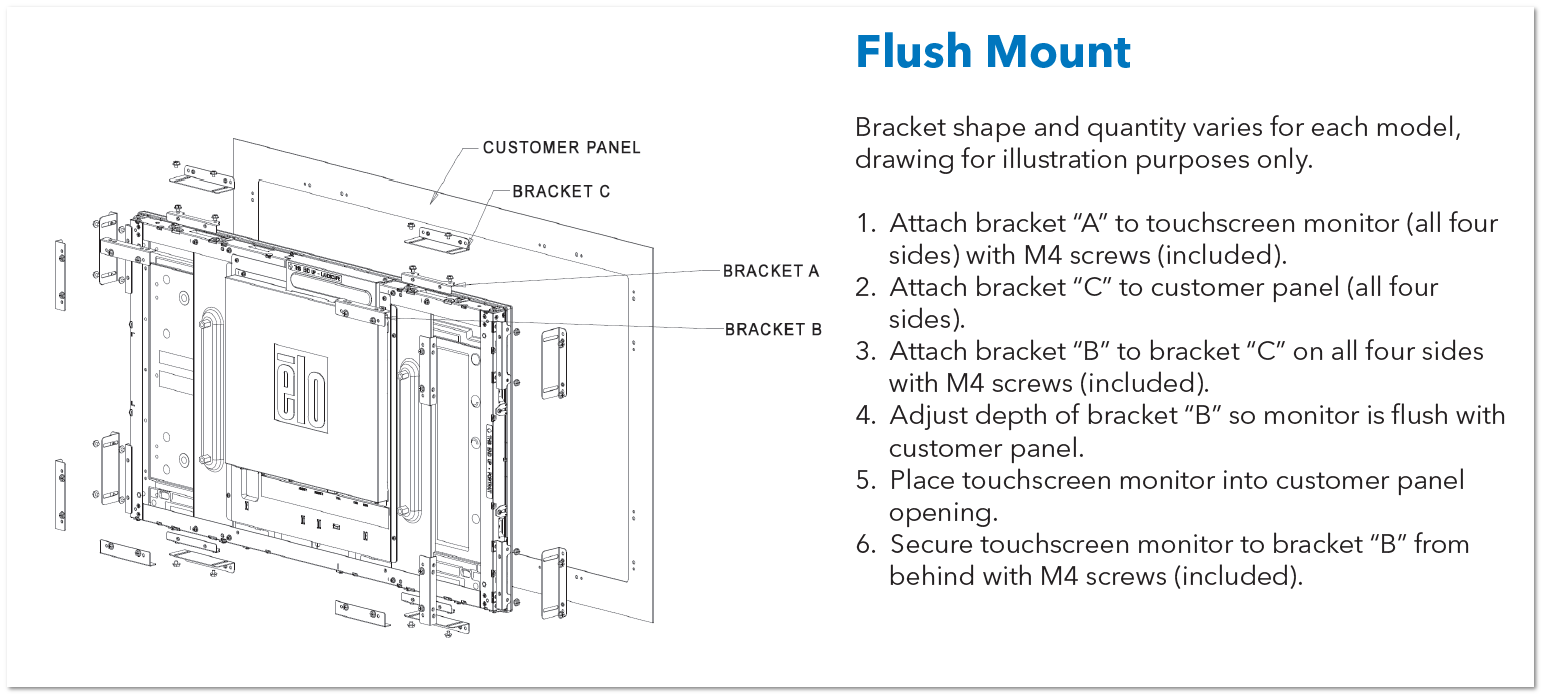

Uit de QIG

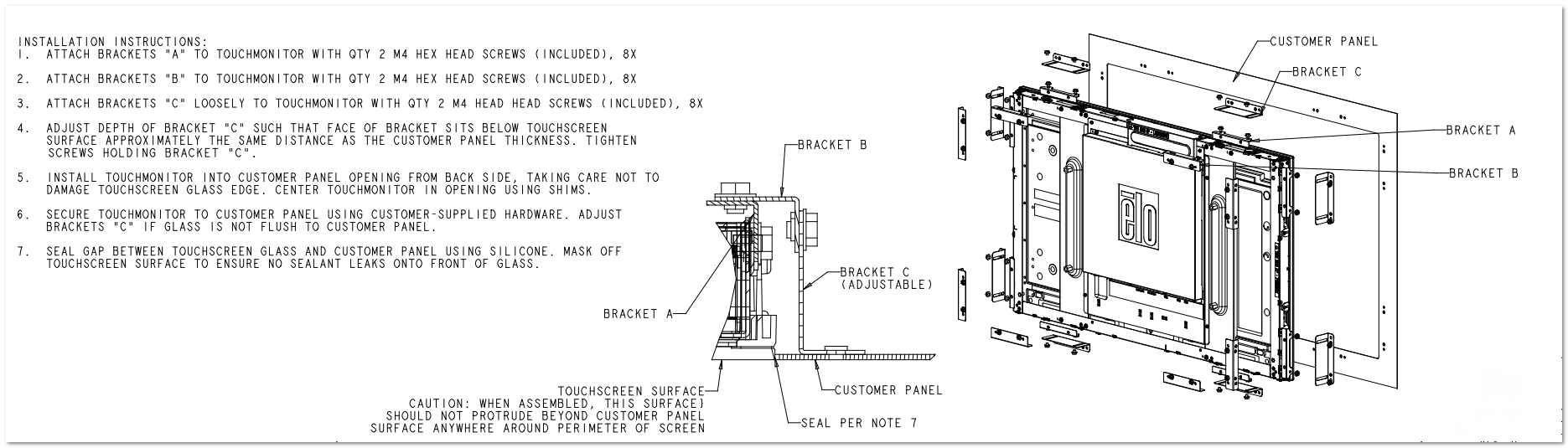

Uit de Dimensional Drawing 3263L:

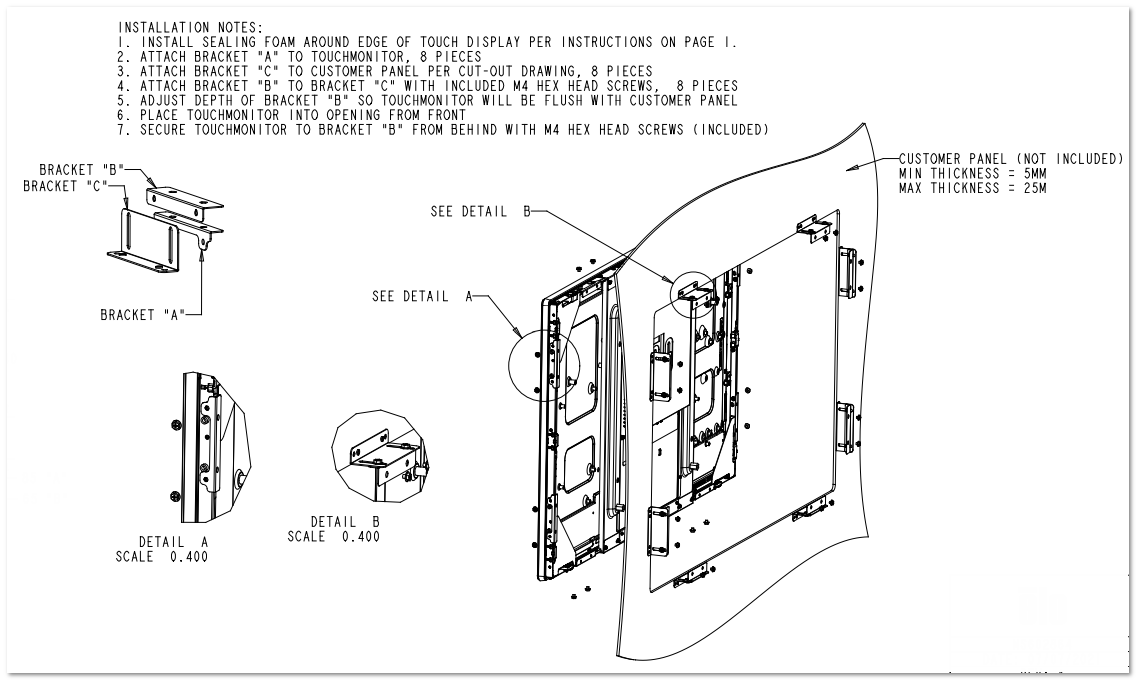

Uit de Dimensional Drawing 4363L:
