Witamy w Dziale Wsparcia Elo

Sterowniki, informacje o produktach, odpowiedzi techniczne i nie tylko.

Gdzie mogę znaleźć rysunek wymiarowy urządzenia E-Series 2?

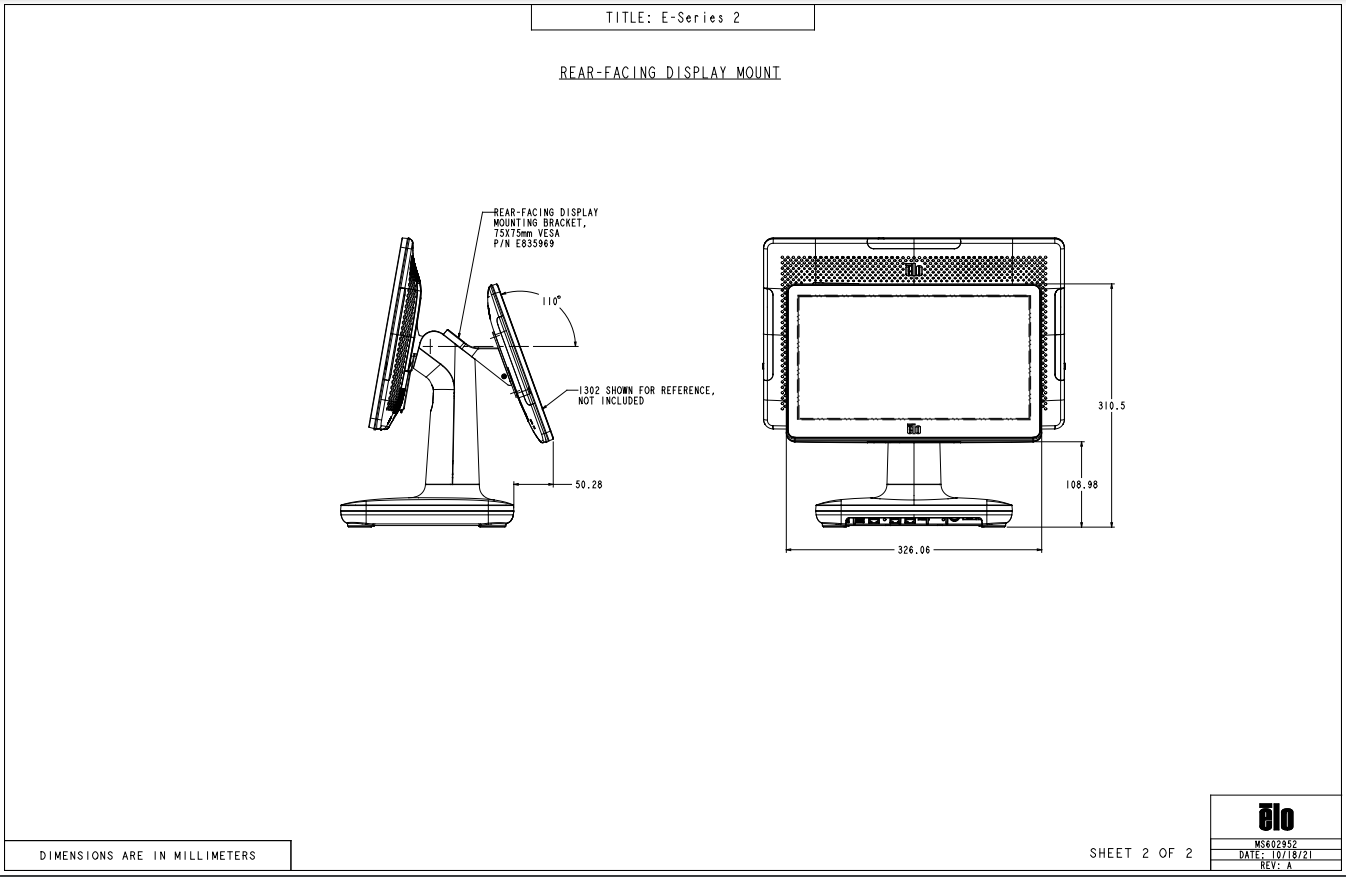

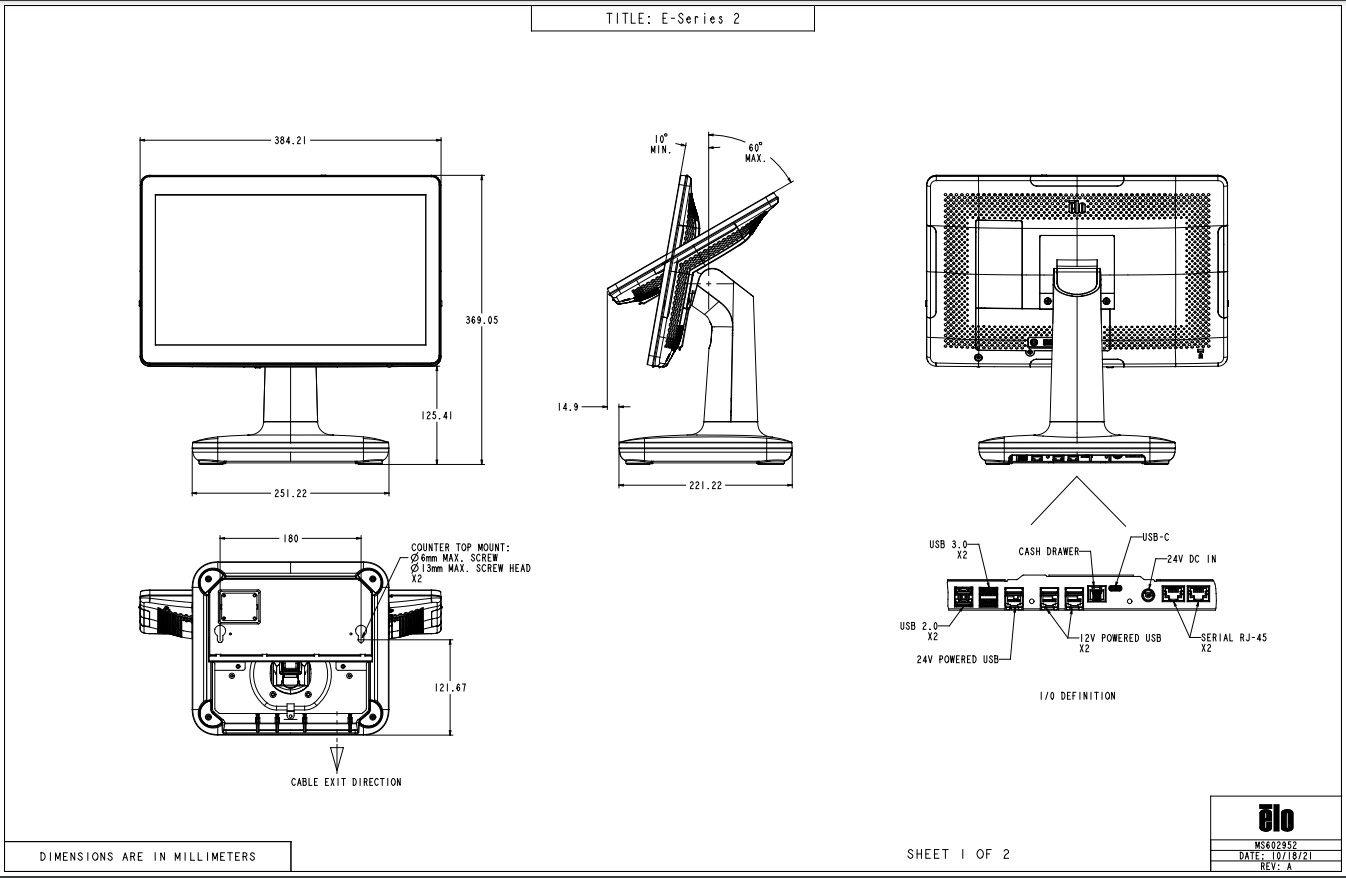

Artykuł ten zawiera rysunek wymiarowy dla komputera dotykowego E-Series 2 AIO.

Rysunek można również pobrać ze strony Elo
