Witamy w Dziale Wsparcia Elo

Sterowniki, informacje o produktach, odpowiedzi techniczne i nie tylko.

Gdzie mogę znaleźć trójwymiarowe rysunki serii E?

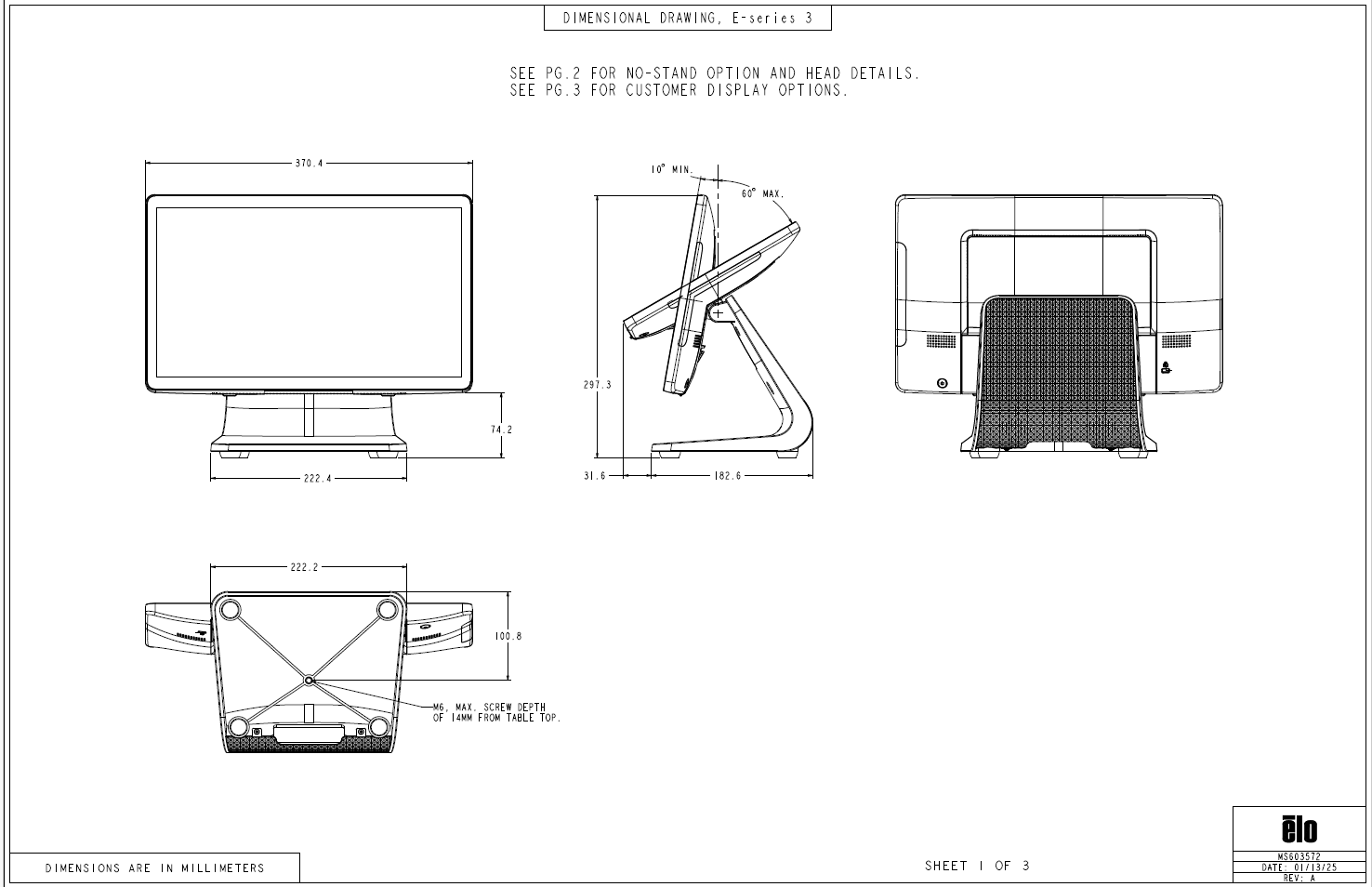

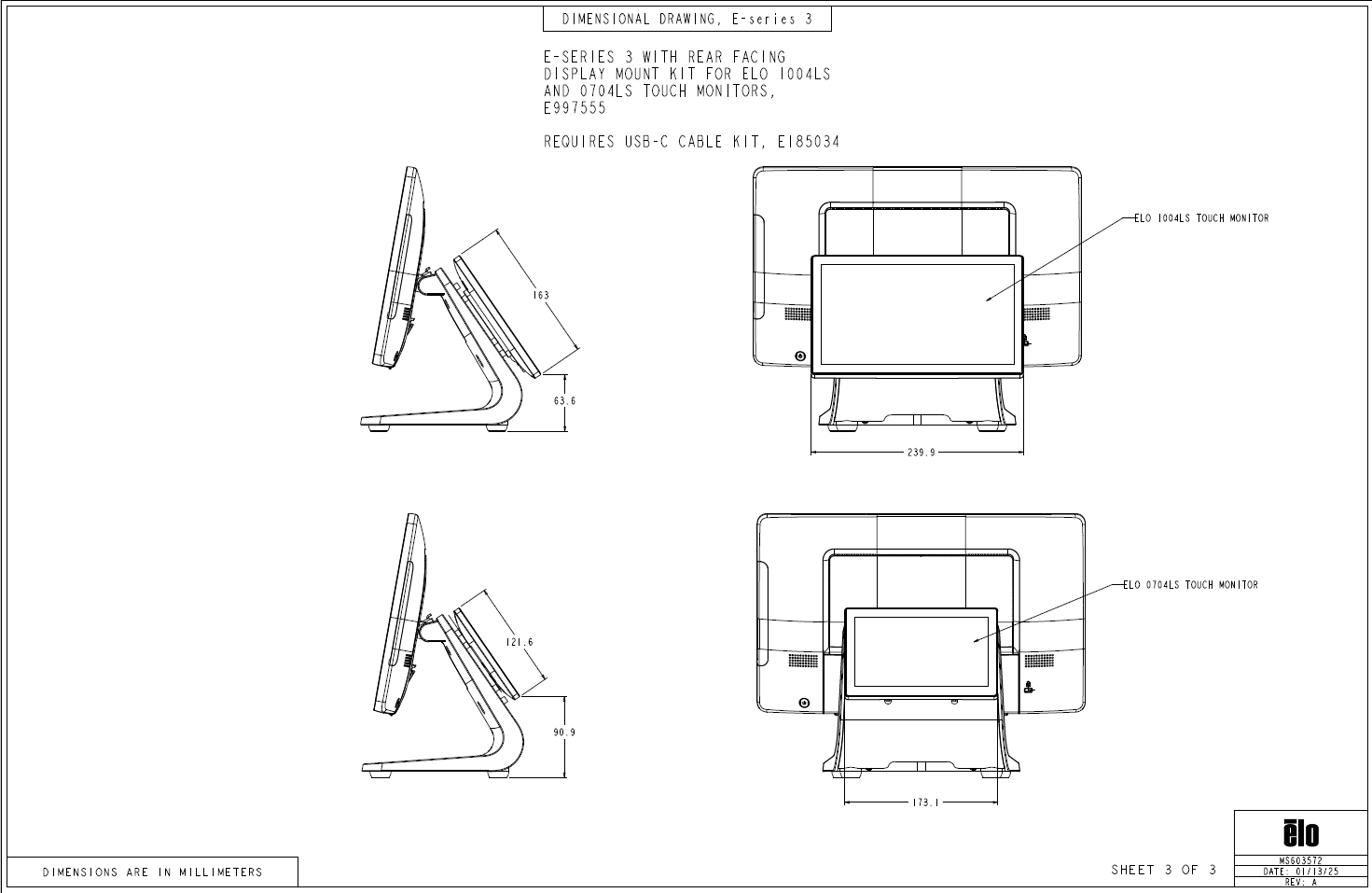

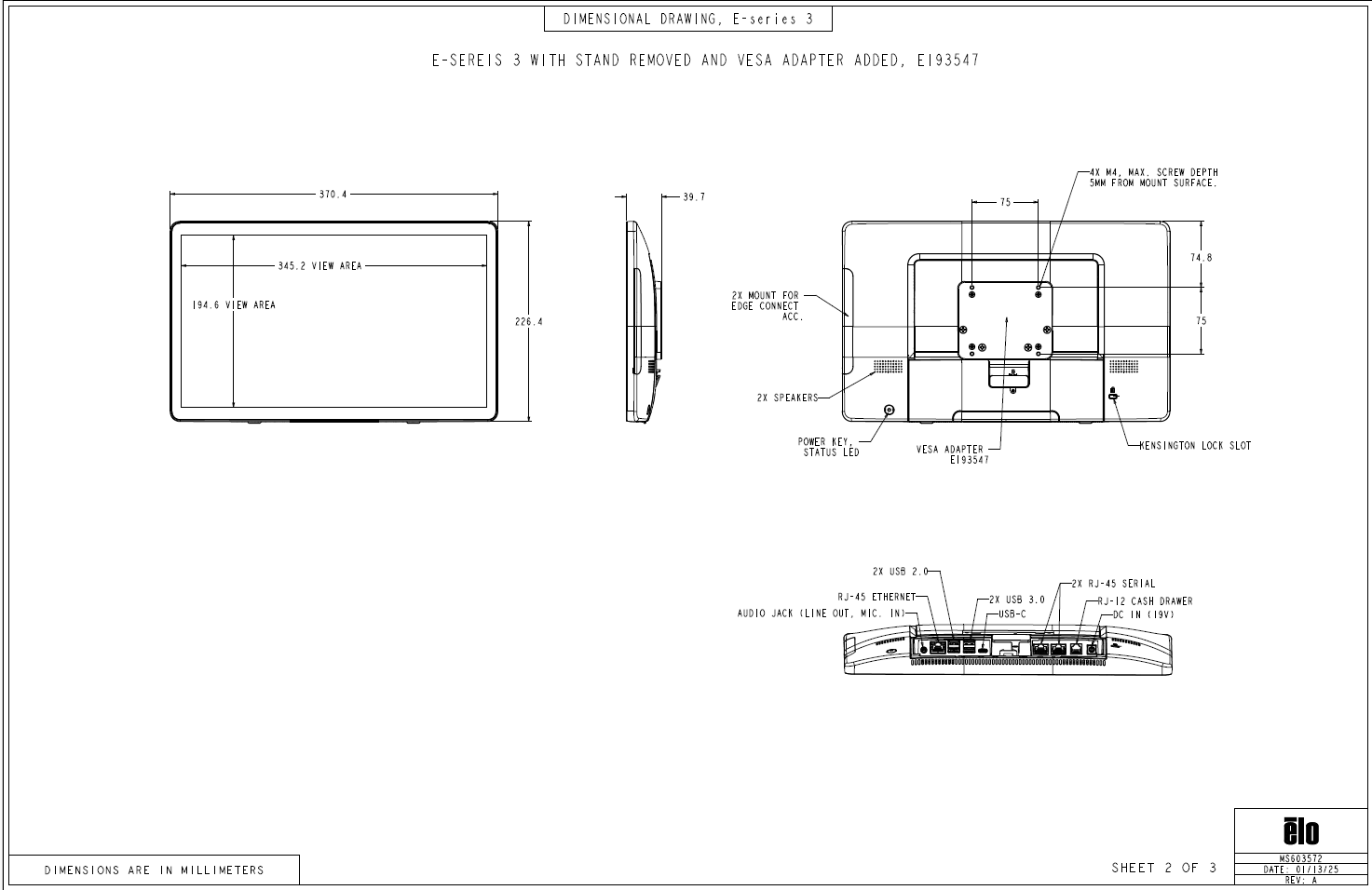

Artykuł ten zawiera rysunki wymiarowe dla E-Series 3 AIO

Obowiązujące numery części:

  • Brak systemu operacyjnego, 8GB RAM, 128GB SSD, WiFi - E850098
  • Win 11, 8GB RAM, 128GB SSD, WiFi - E849902
  • Brak systemu operacyjnego, 8GB RAM, 128GB SSD - E850312
  • Win 11, 8GB RAM, 128GB SSD - E849711
  • Brak systemu operacyjnego, 16GB RAM, 256GB SSD, WiFi - E153661
  • Win 11, 16GB RAM, 256GB SSD, WiFi - E153259

Pobierz powyższy rysunek
