Witamy w Dziale Wsparcia Elo

Sterowniki, informacje o produktach, odpowiedzi techniczne i nie tylko.

Gdzie mogę znaleźć informacje na temat E193547, Zestaw, Adapter VESA, E-Series 3, 75mm?

Artykuł ten zawiera informacje o E193547, Zestaw, Adapter VESA, E-Series 3, 75mm.

Ten adapter VESA został zaprojektowany specjalnie dla komputera dotykowego Elo E-Series 3 AIO.

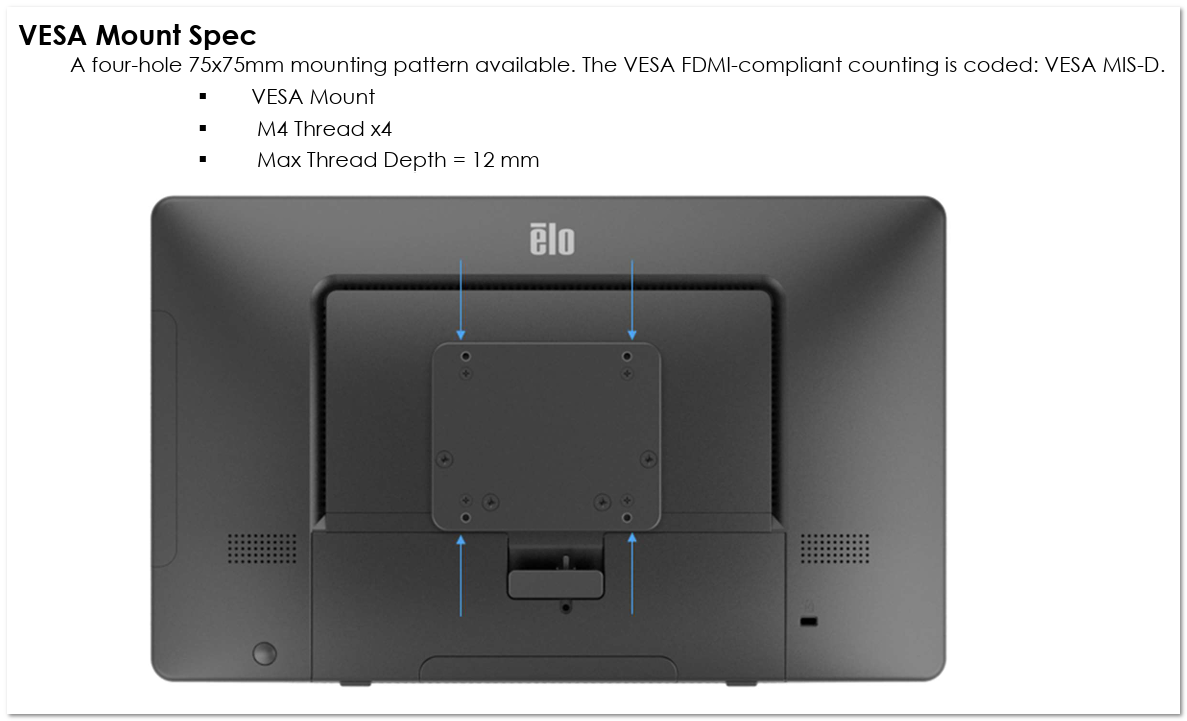

Rysunek CAD

Zawartość zestawu E193547:

  • 1 adapter VESA

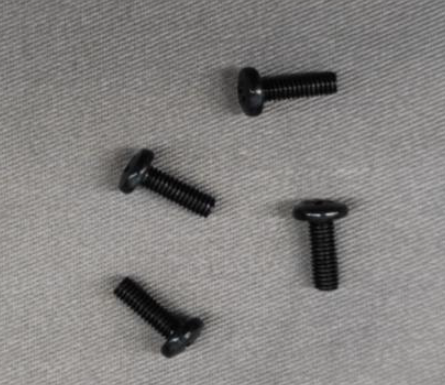

  • 4 śruby, M4 X 12mm Długie
  • 1 instrukcja szybkiego montażu

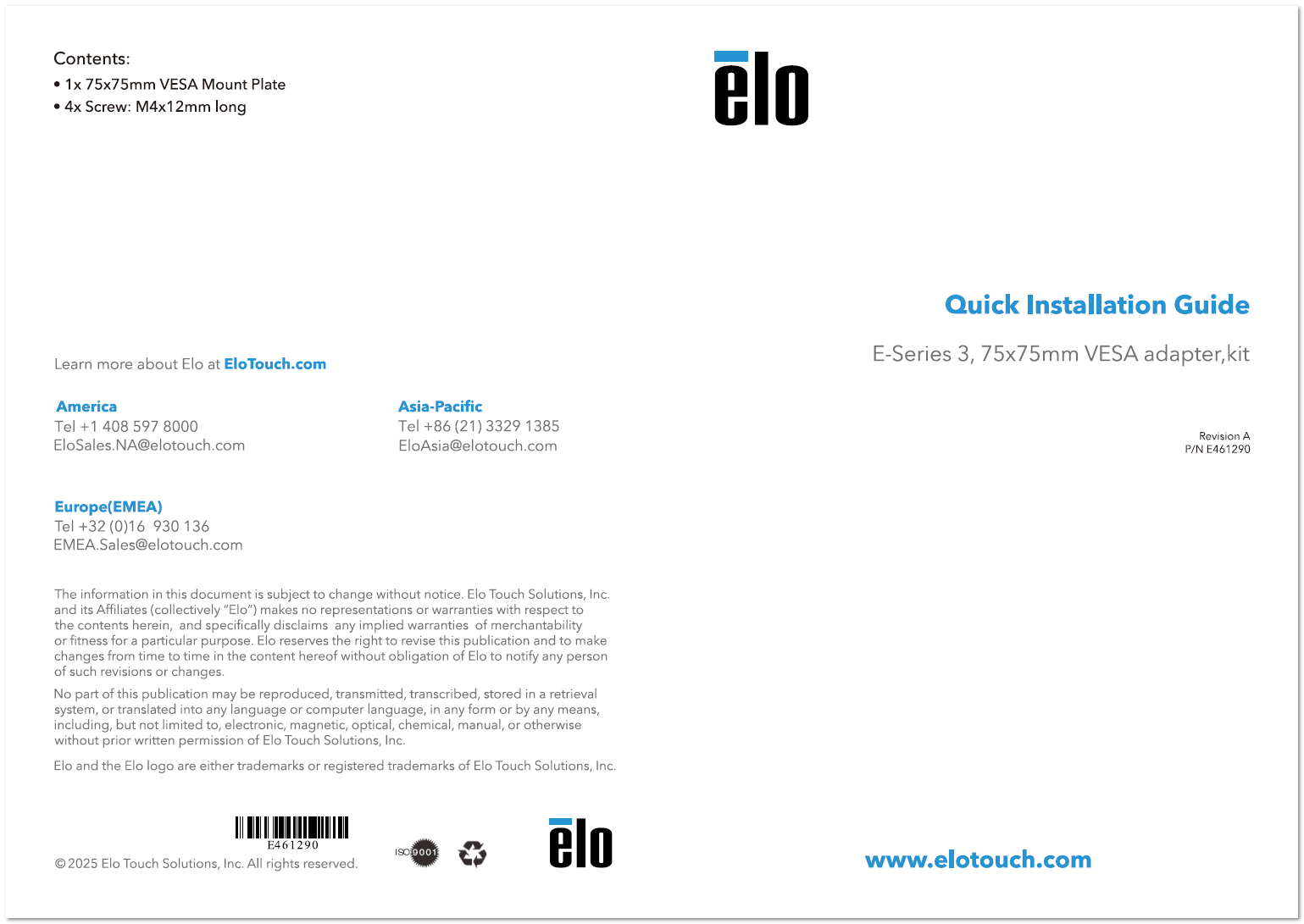

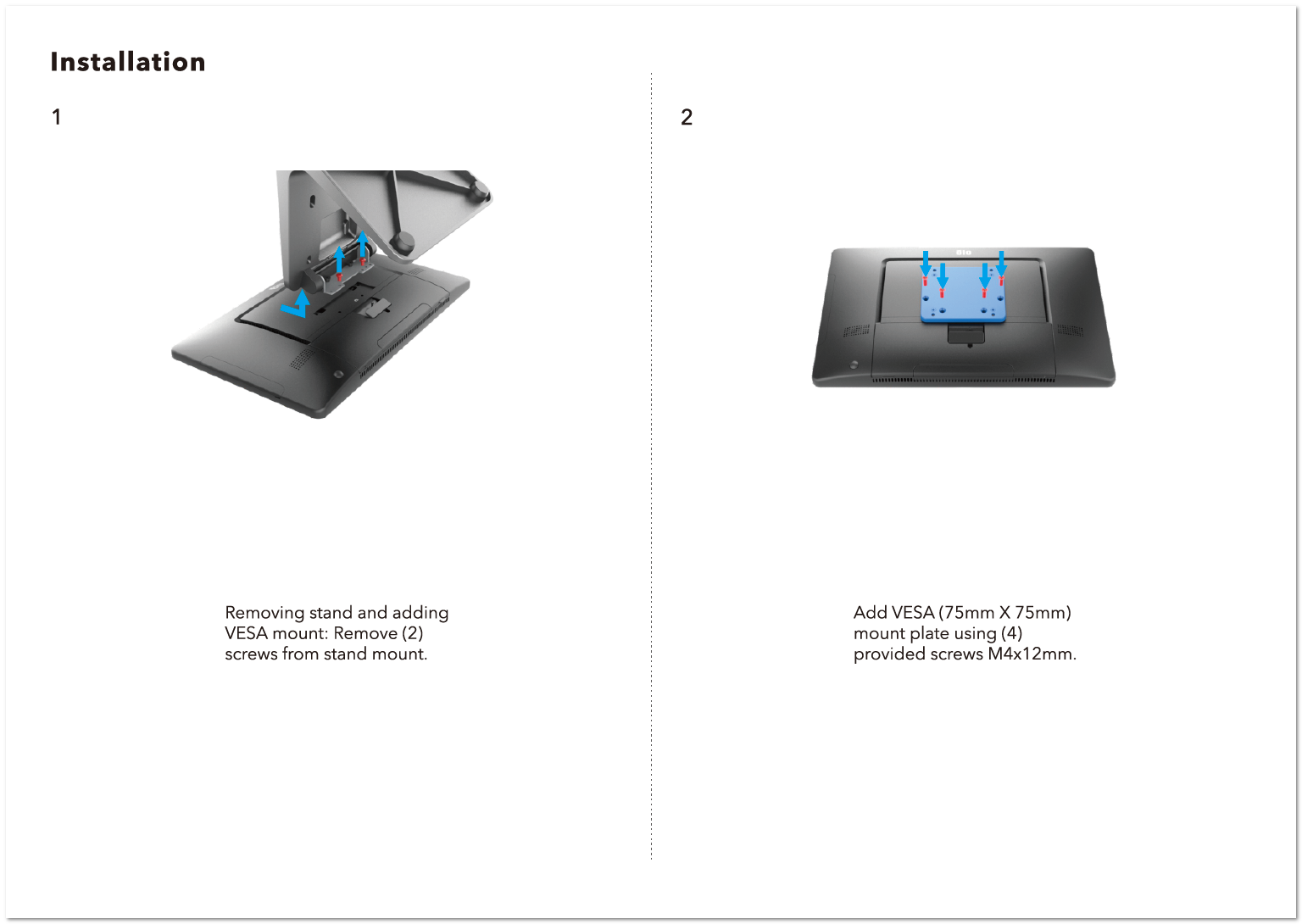

Instrukcja szybkiego montażu

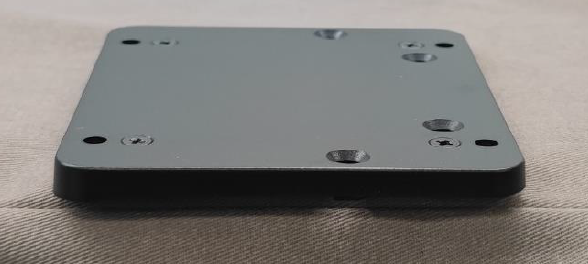

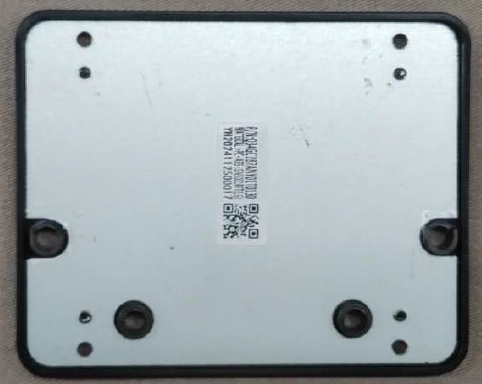

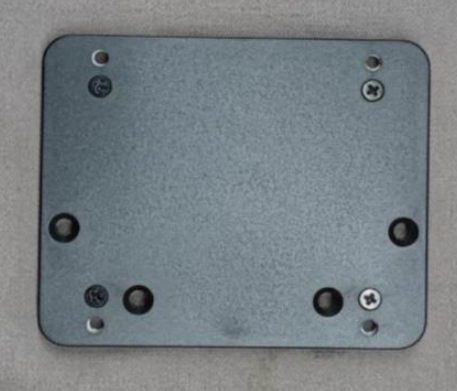

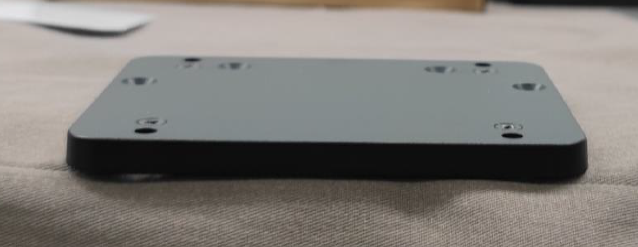

Zdjęcia:



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
