Jak zainstalować uchwyty do montażu na równo w monitorze 3263L / 4363L?

Artykuł ten pokazuje, jak zainstalować uchwyty montażowe na płasko w monitorach z serii 63 (3263L, 4363L)

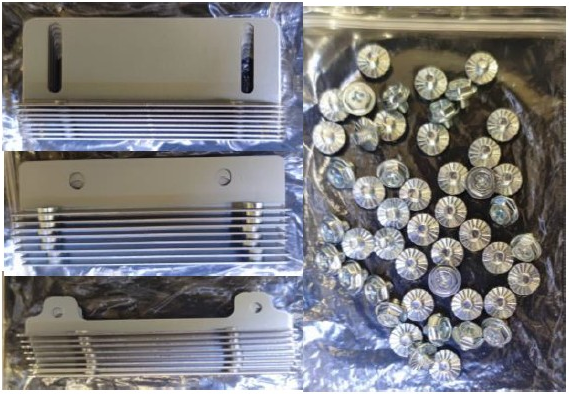

Monitory zawierają 8 zestawów uchwytów montażowych oraz 48 sztuk śrub

  • Zestawy uchwytów do wymiany można zakupić oddzielnie

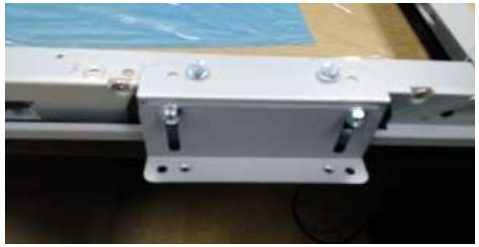

Przykład zamontowanych uchwytów na monitorze:

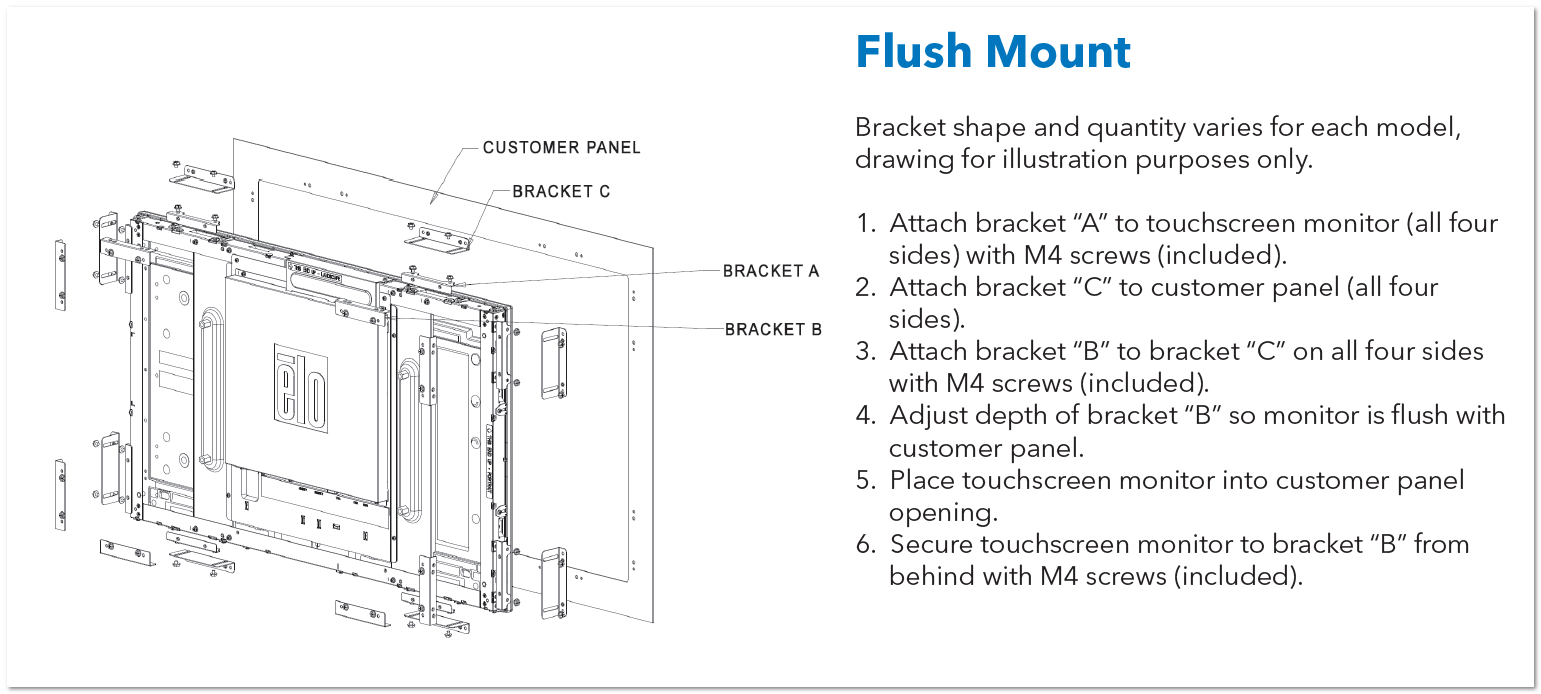

Z QIG

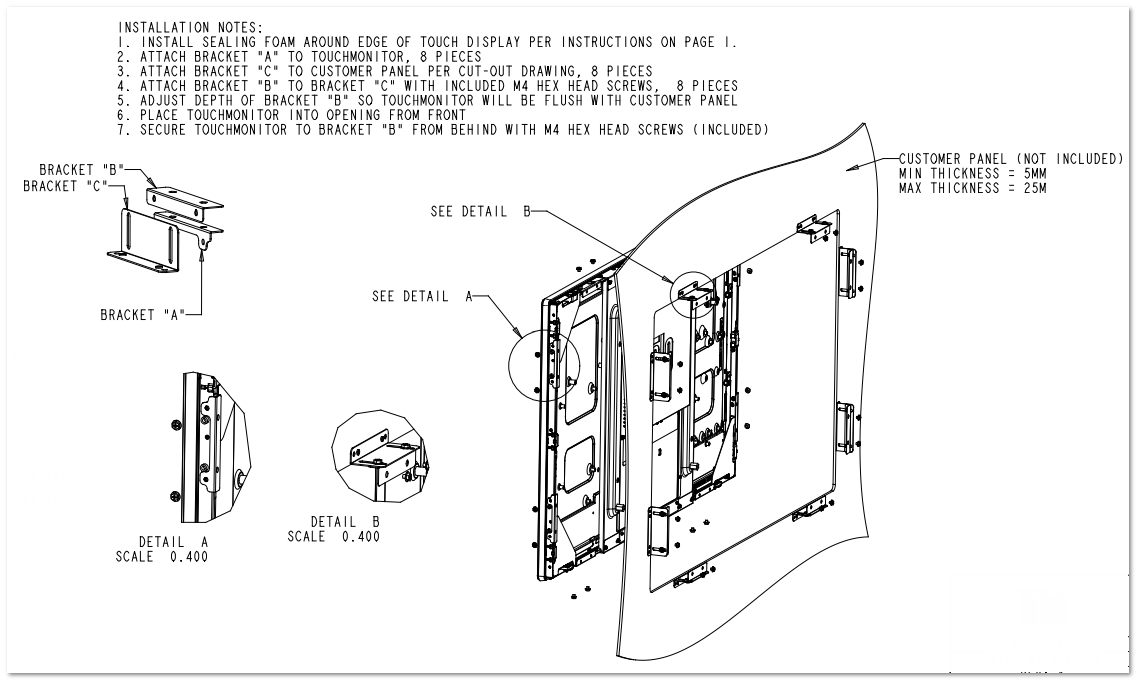

Z rysunku wymiarowego 3263L:

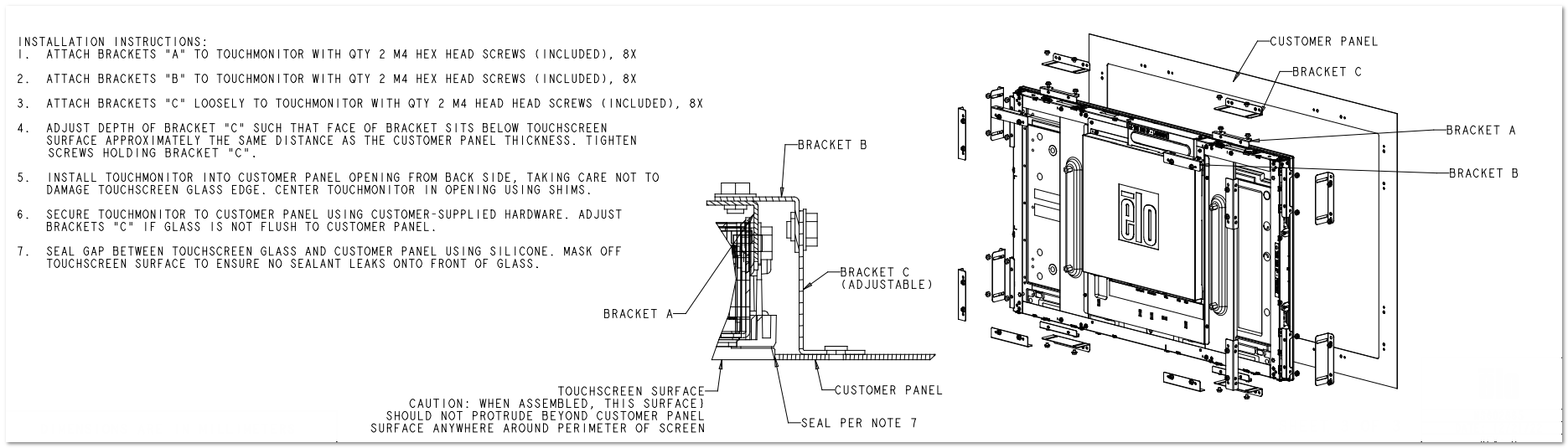

Z rysunku wymiarowego 4363L:
