Bem-vindo ao Suporte Elo

Drivers, informações do produto, respostas técnicas e muito mais.

Onde posso encontrar informações sobre P/N: E038989 Suporte de Poste de Montagem Traseira para a Série X?

Este artigo fornece informações sobre P/N: E038989 suporte de montagem traseiro para a série X

Abaixo estão informações sobre o P/N: E038989 Suporte de Montagem Traseiro para o TouchComputer AIO da Série X.

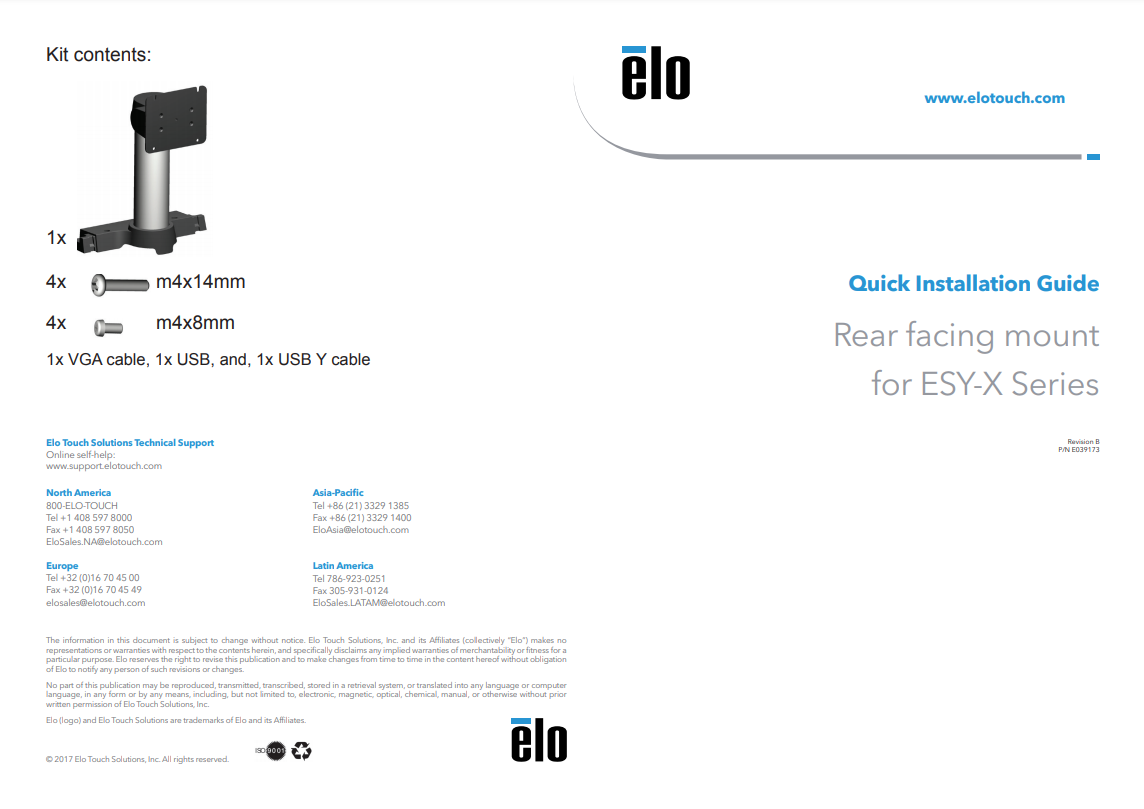

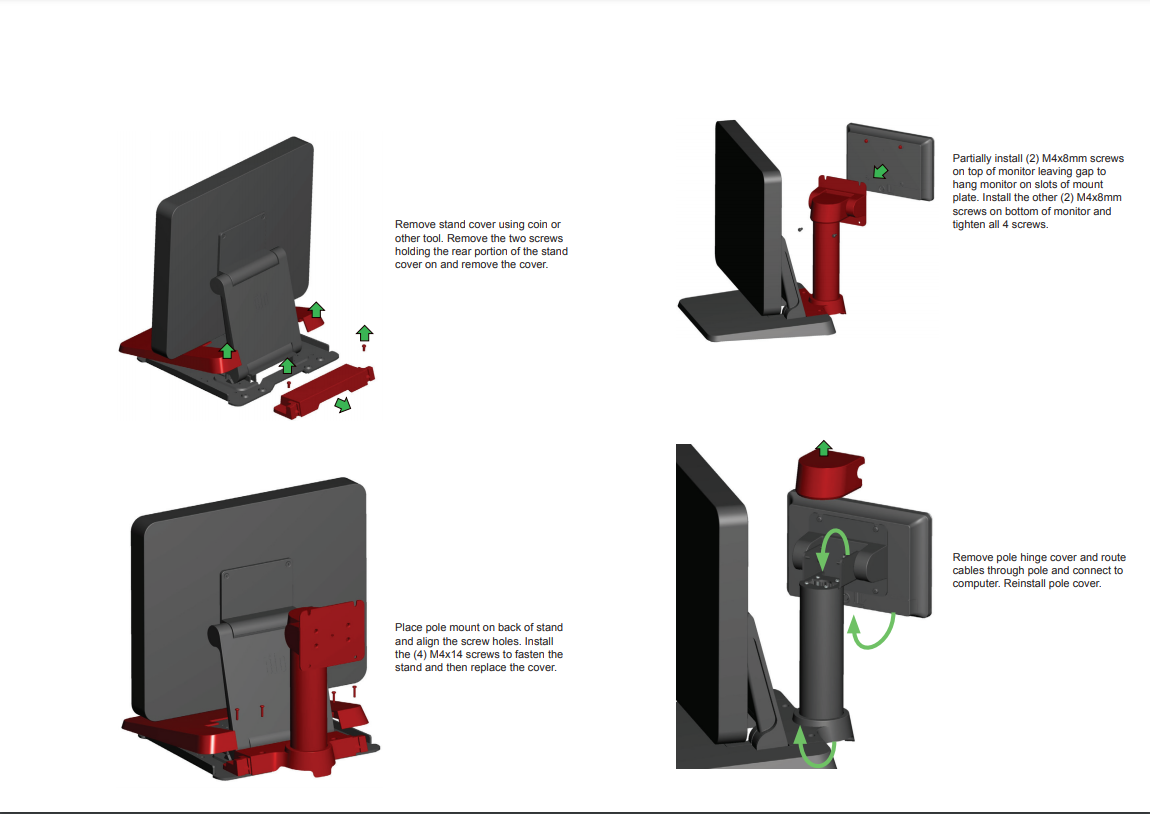

Guia de Instalação Rápida:

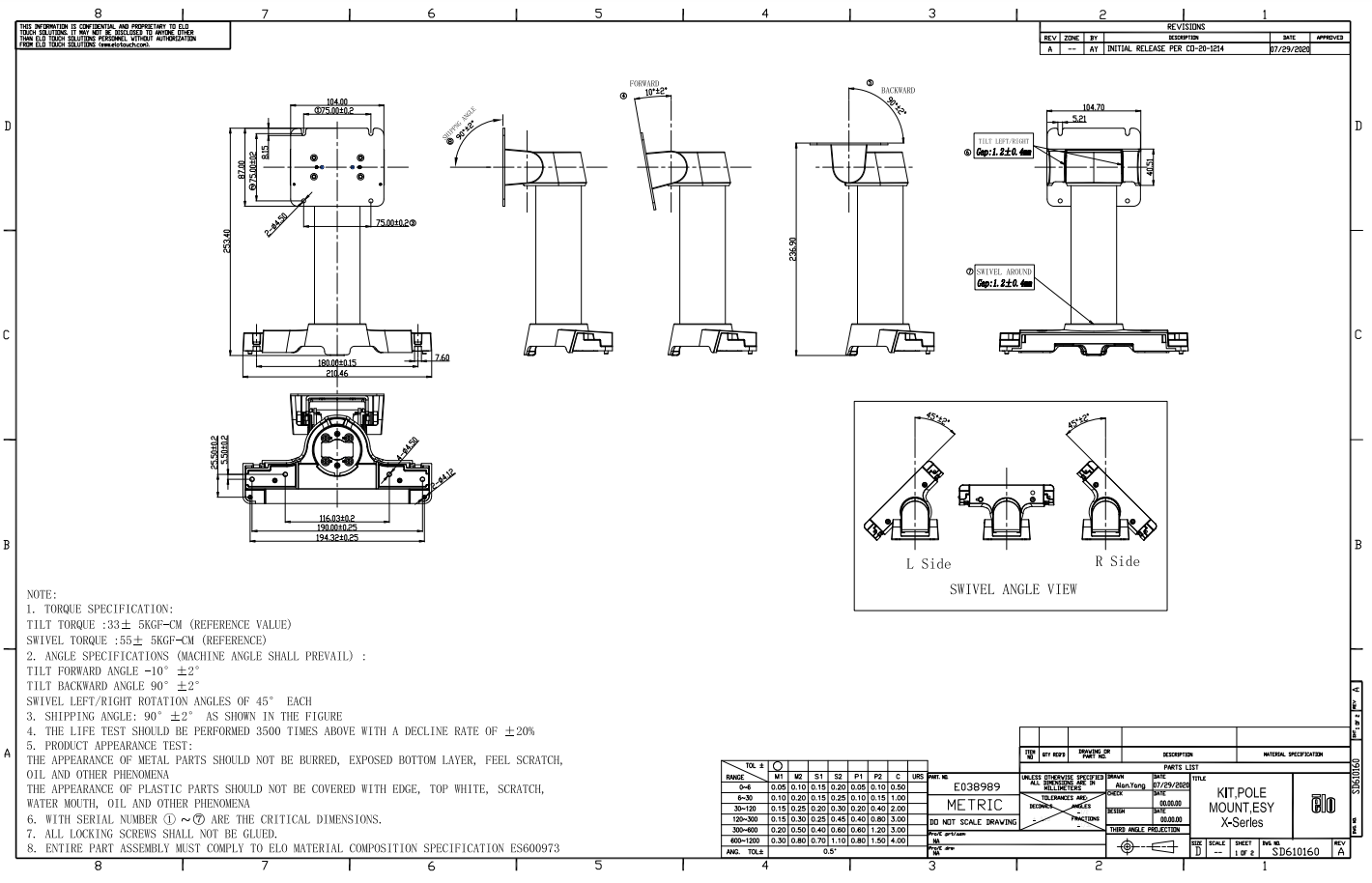

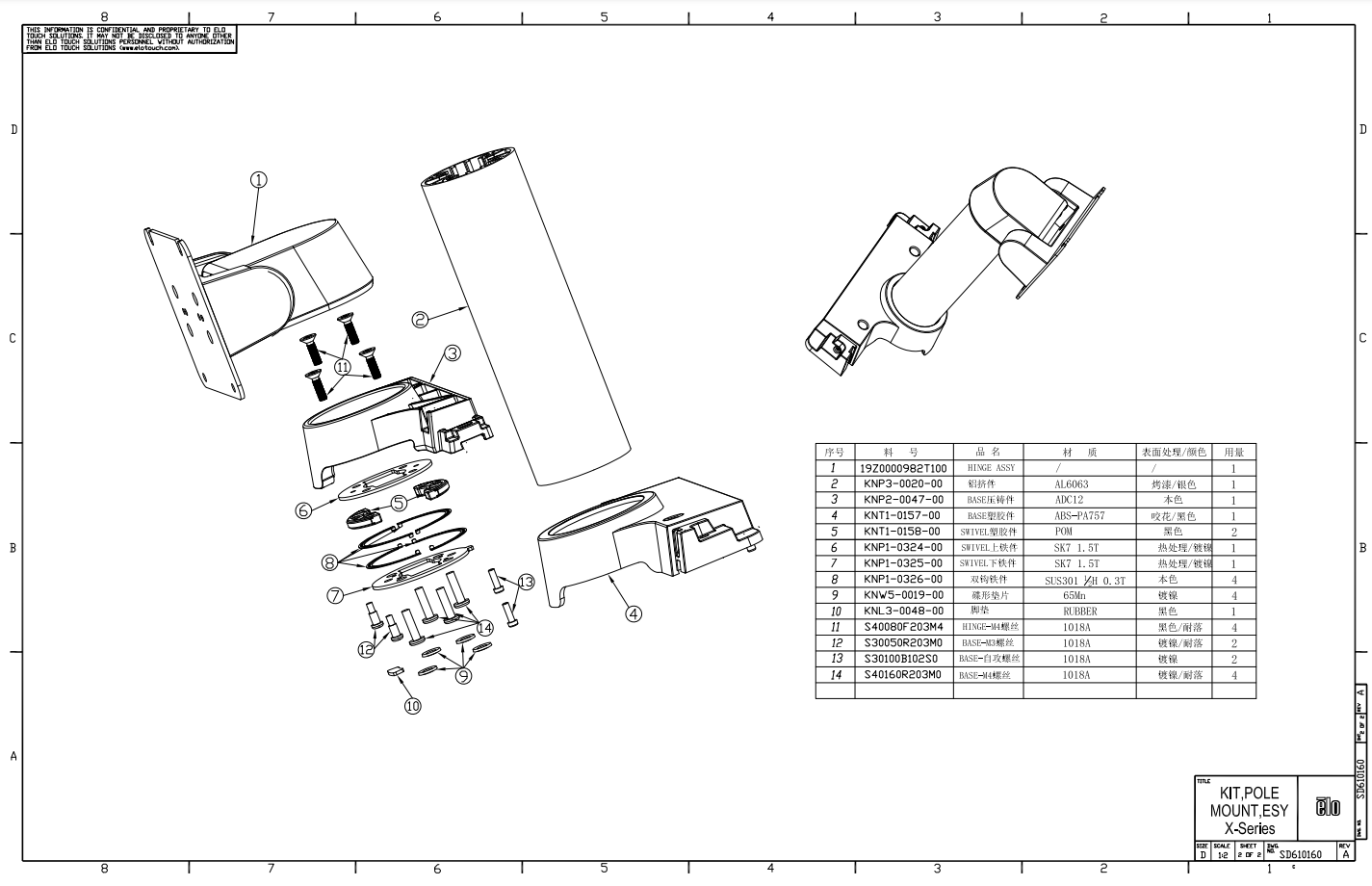

Desenhos Dimensionais:

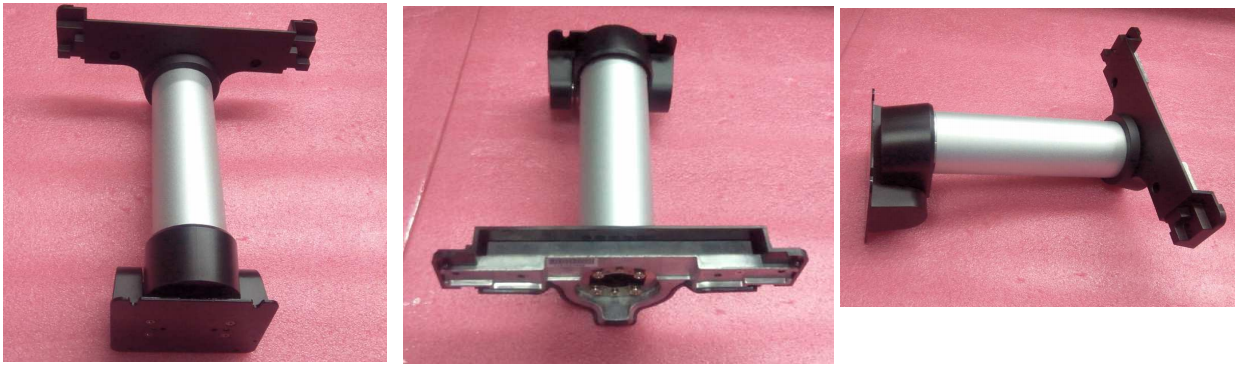

Fotos:


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
