Onde posso encontrar os desenhos dimensionais do Kit de Montagem em Poste de 6 Polegadas E047458?

Este artigo fornece os Desenhos Dimensionais do Kit de Montagem em Poste E047458 de 6 Polegadas como uma imagem

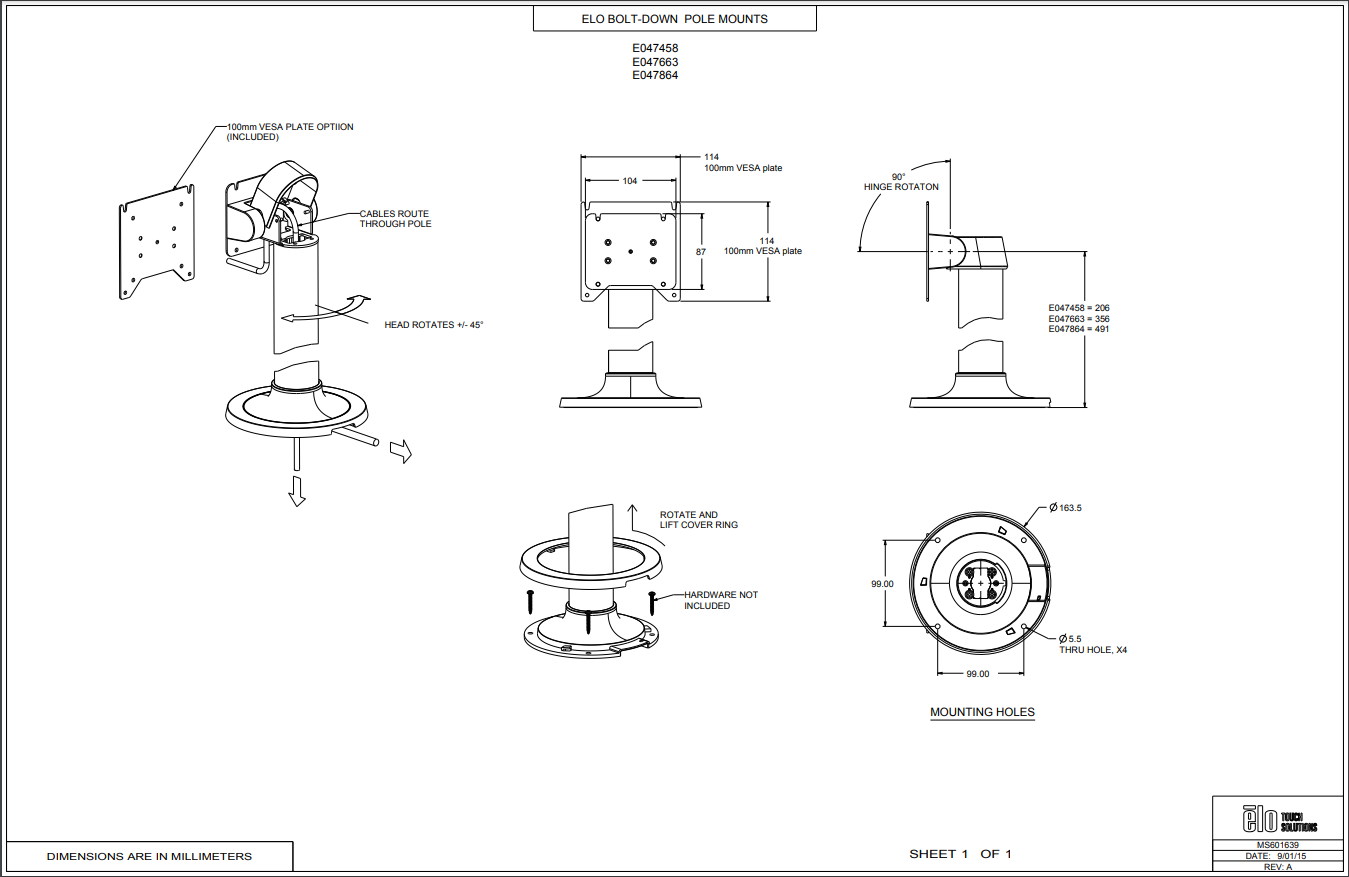

Desenhos Dimensionais do Kit de Montagem em Poste E047458 de 6 Polegadas

O desenho abaixo também está no site da Elo AQUI

Solicitar um desenho CAD AQUI

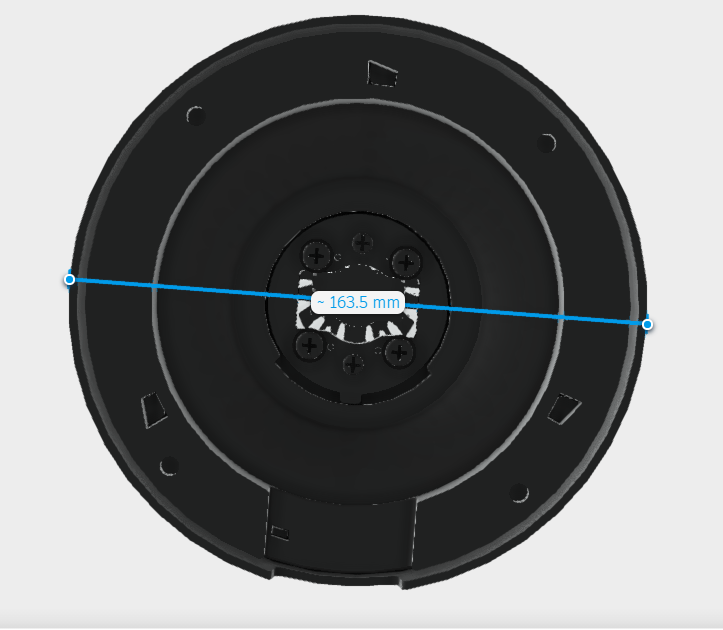

Abaixo mostra a medida do diâmetro da base do suporte = 163,5mm
