Добро пожаловать в службу поддержки Elo

Драйверы, информация о продуктах, технические ответы и многое другое.

Где я могу найти информацию о меню OSD 70-Series?

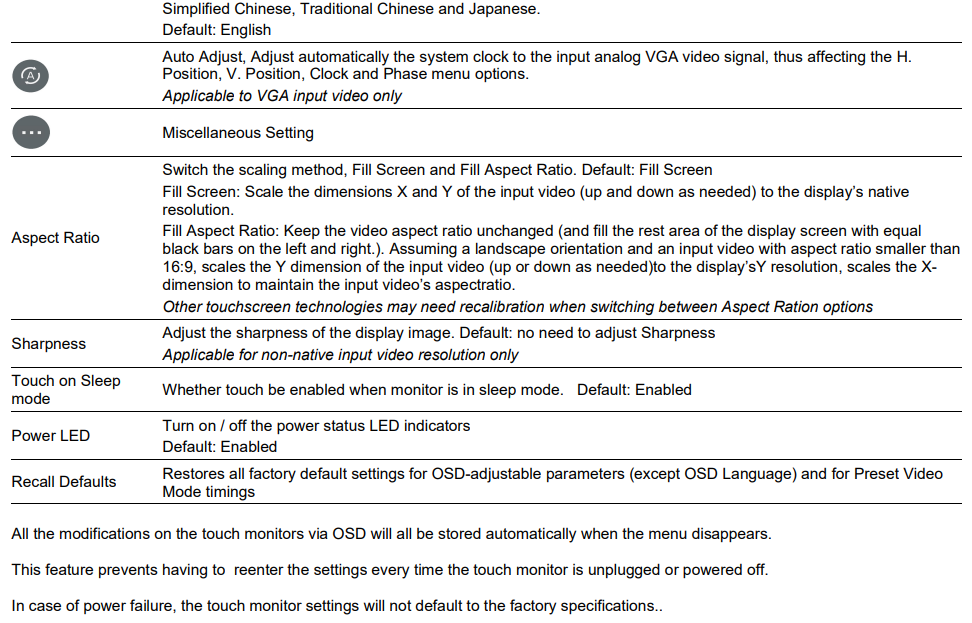

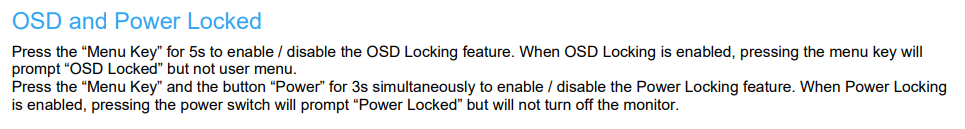

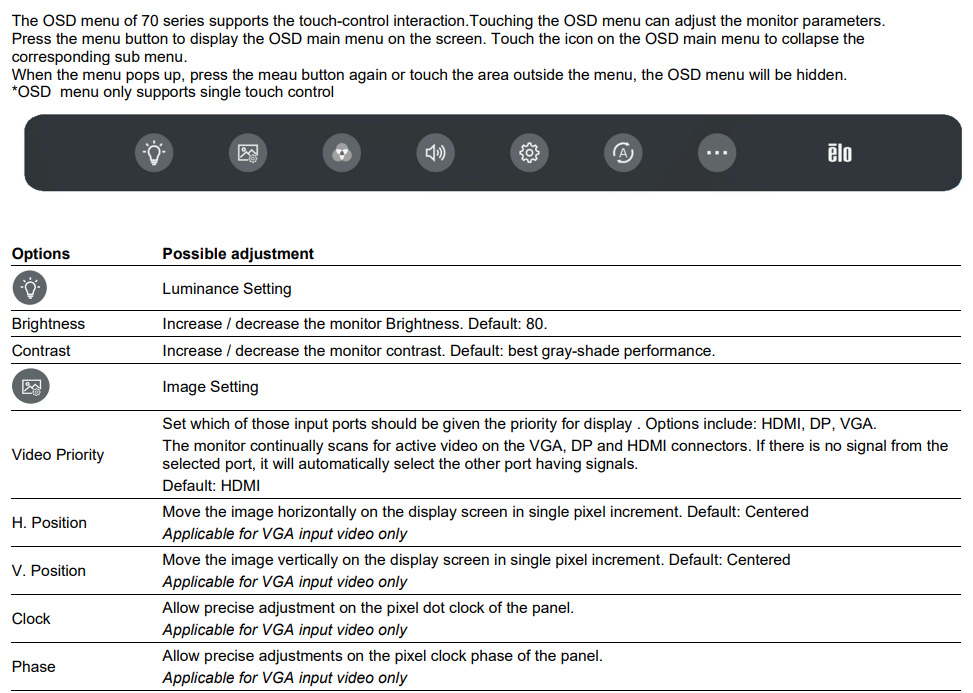

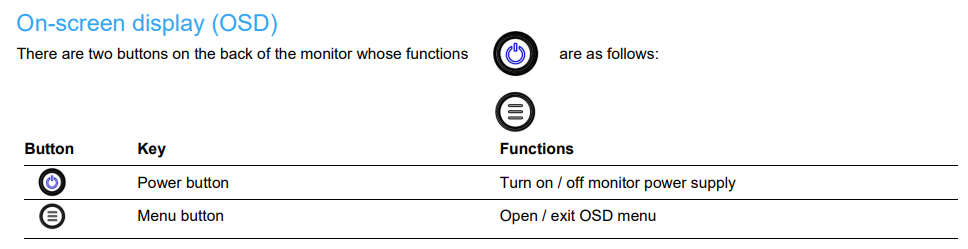

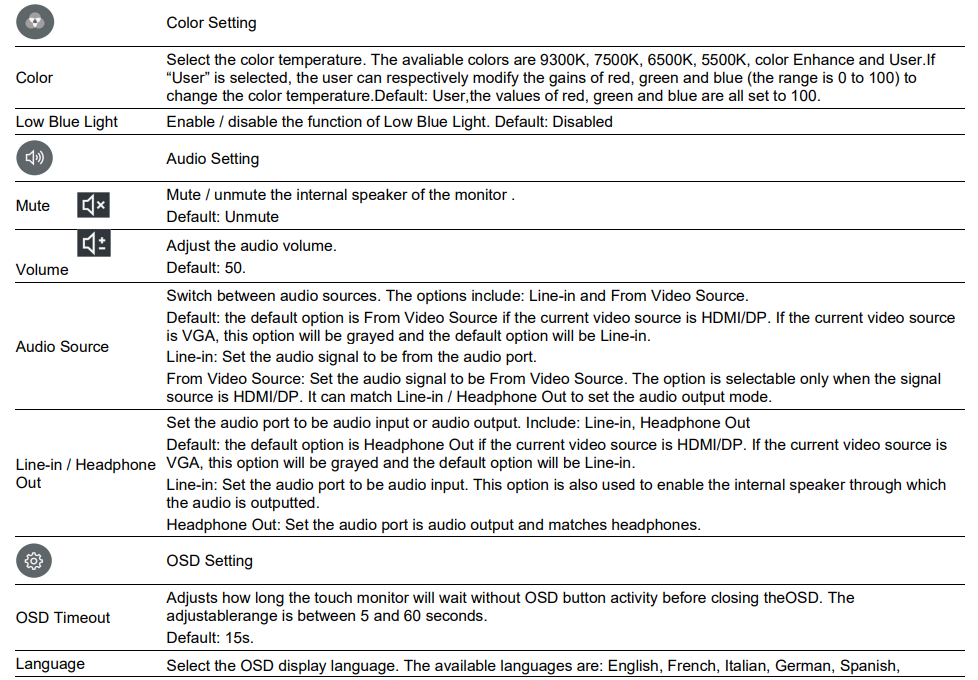

В этой статье описано меню OSD, встроенное в сенсорные мониторы серии 70 (2270L, 2470L, 2770L)

Эту информацию также можно найти в Руководстве пользователя серии 70


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
