我在哪里可以找到 P/N: E050243 电源套件尺寸图和电源规格？

本文提供有关P/N: E050243电源套件尺寸图和电源规格的更多信息

E050243电源套件尺寸图和电源规格如下所示。该套件包含电源适配器P/N: E903320

电源规格

  • 输出：48W（满负载）
  • 有效输入功率：55.39W @ 230Vac
  • 总输入电流：0.55894 Arms @ 230Vac
  • 50Hz电流：0.24212 Arms @ 230Vac

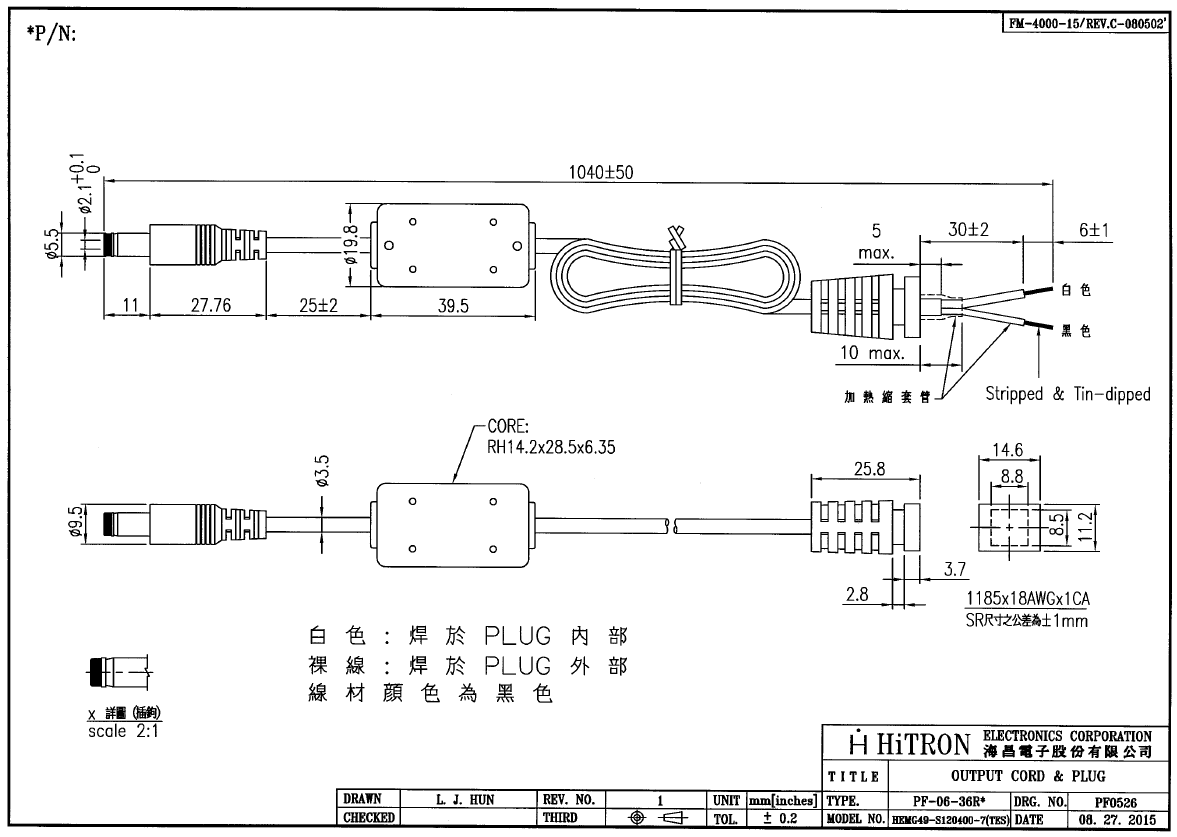

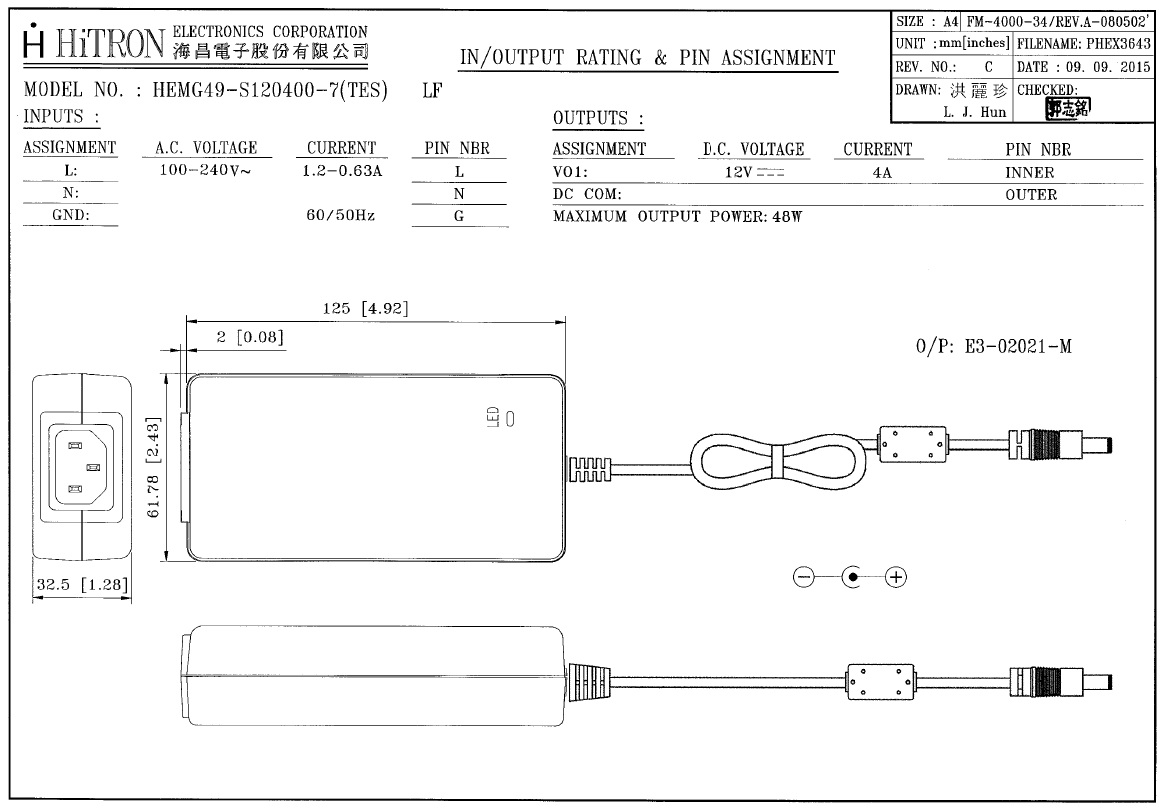

图纸
