欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

哪里可以找到 P/N: E323104 电源图纸和电源规格？

本文提供有关P/N: E323104电源图纸和电源规格的更多信息

E323104电源图纸和电源规格如下所示。

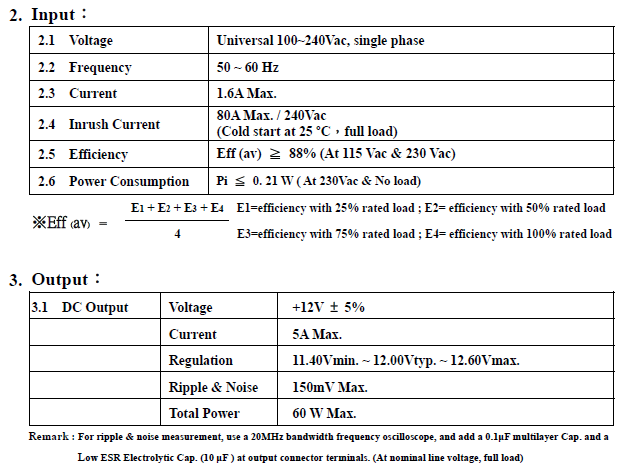

电源规格

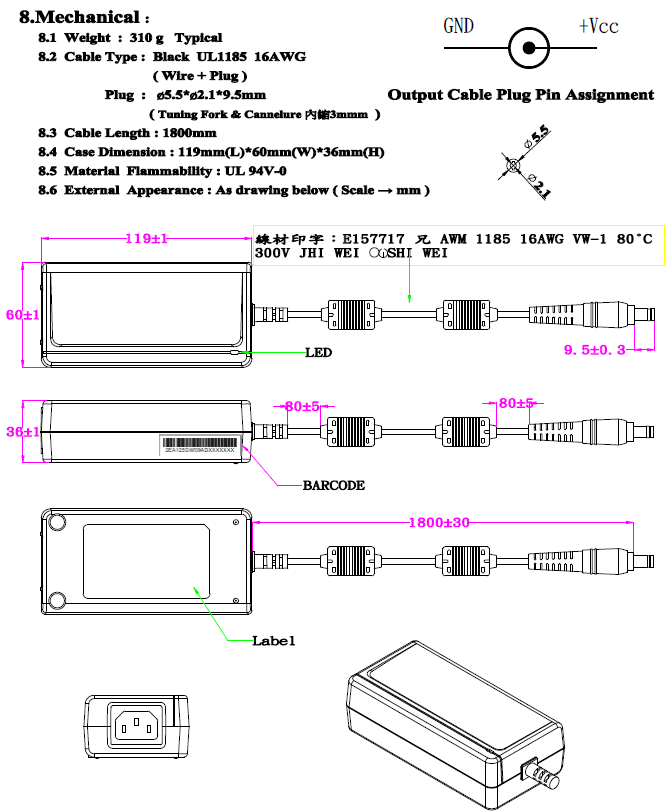

图纸
