欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

在哪里可以找到 E194757 壁挂电源适配器的尺寸图？

本文提供了E194757墙挂电源砖的尺寸图

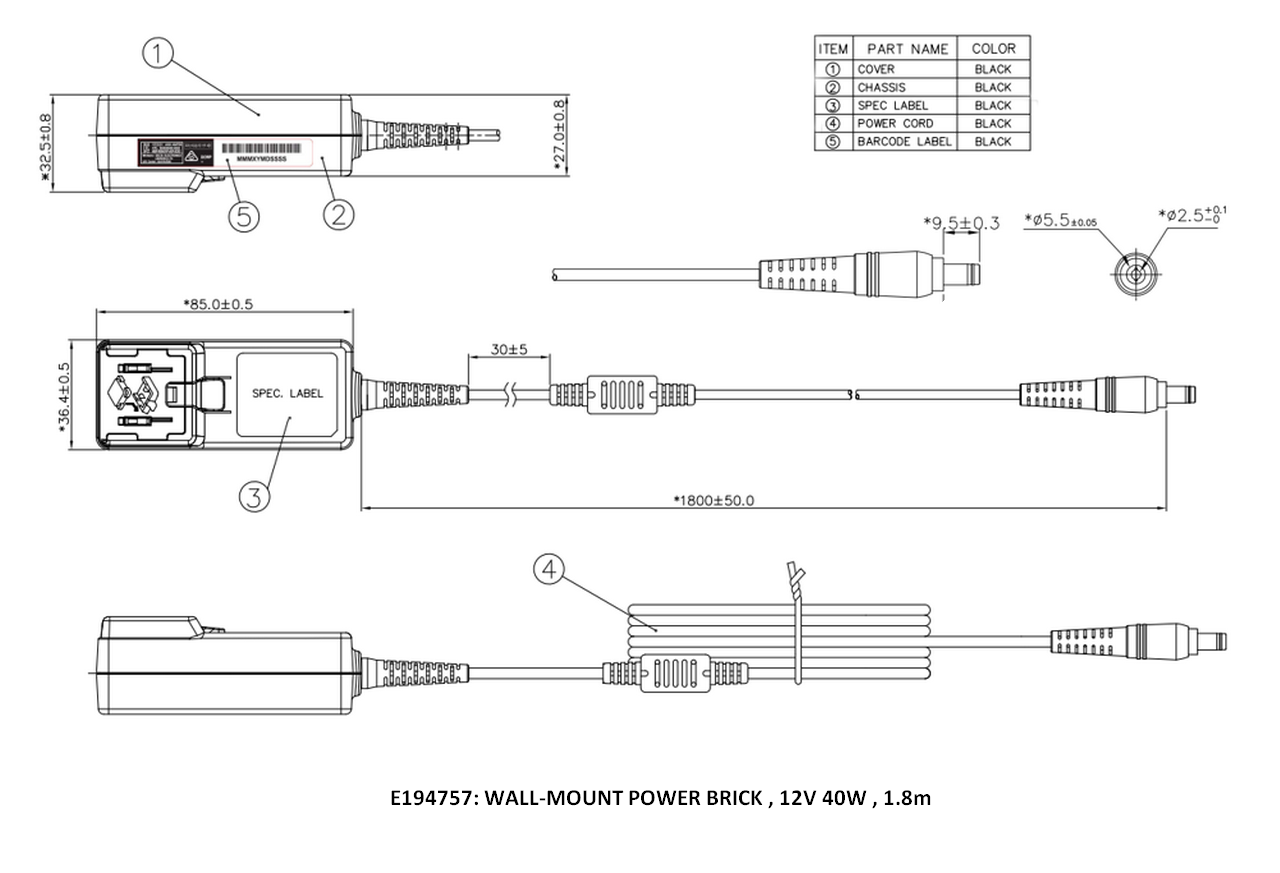

请参见下方Elo P/N:E194757: 墙挂电源砖，12V 40W，1.8米的图纸
