欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

我在哪里可以找到有关 E181106 的信息，1502LM 医疗监视器的电源适配器？

本文提供关于Elo部件号：E181106，1502LM的电源适配器的更多信息

以下是Elo部件号：E181106，ET1502LM医疗监视器的60W电源适配器的信息。

部件号及描述

  • E181106: Elo-Pwr-Adapt-1502LM-60W
  • Elo电源砖套件 - 仅60W适配器，02LM系列医疗监视器

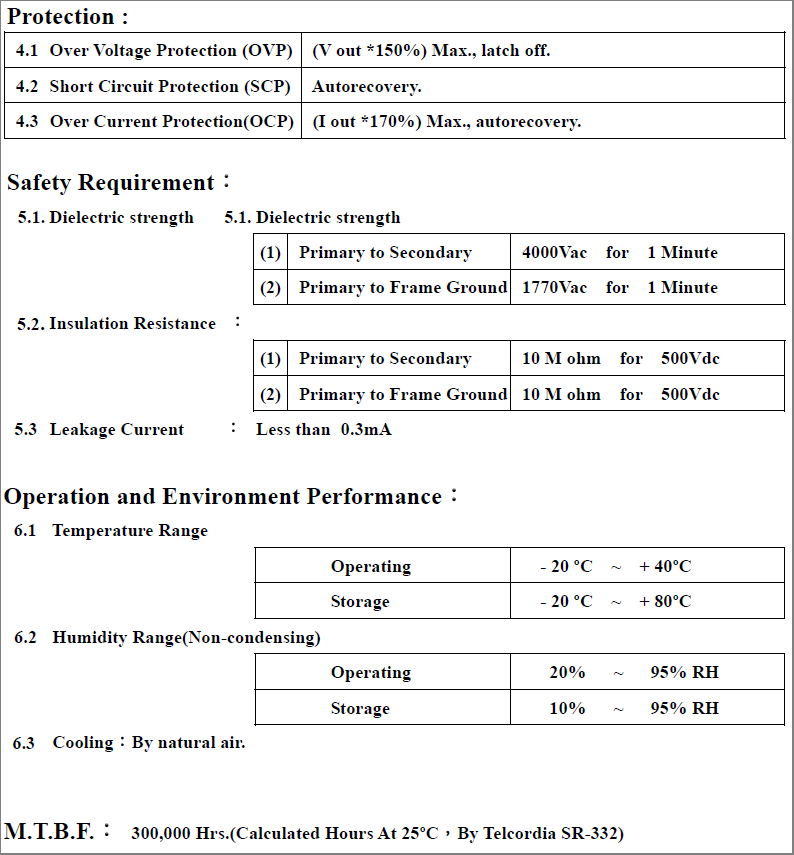

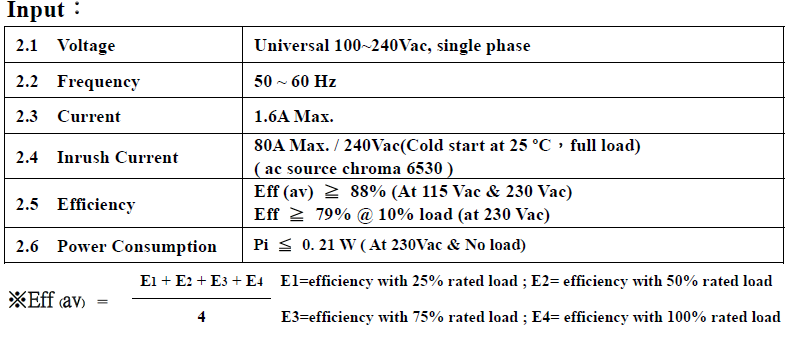

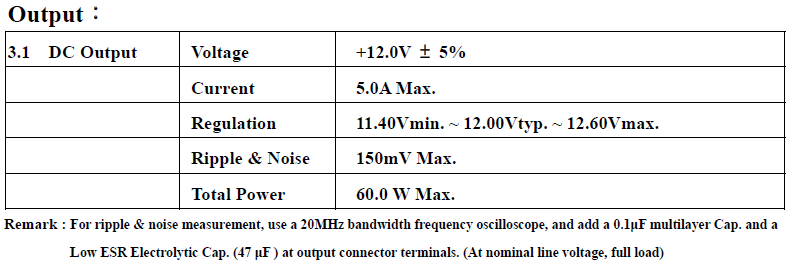

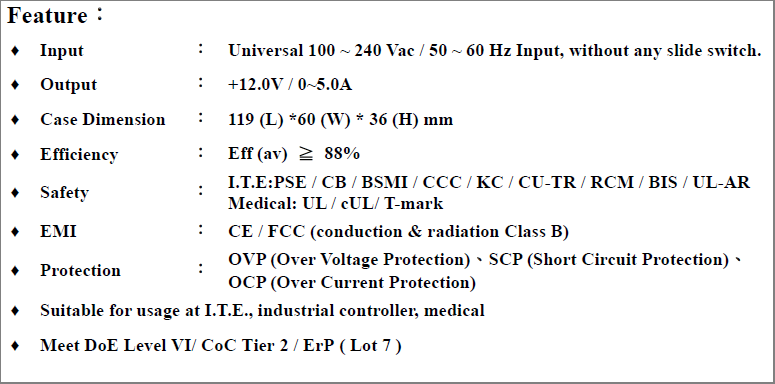

规格

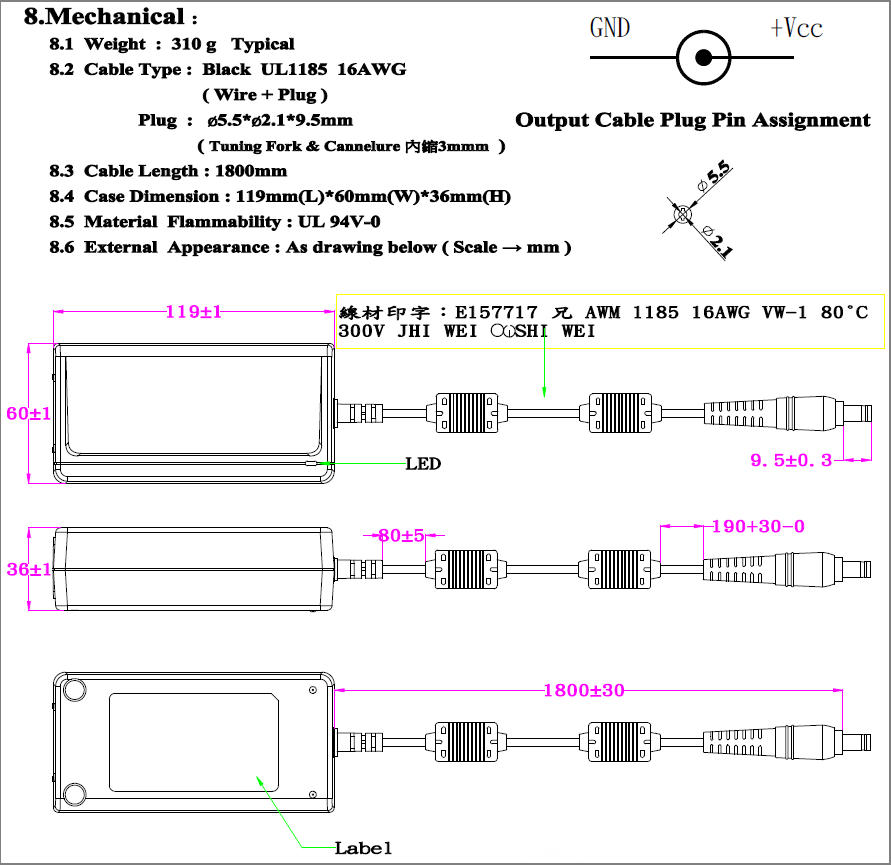

图纸

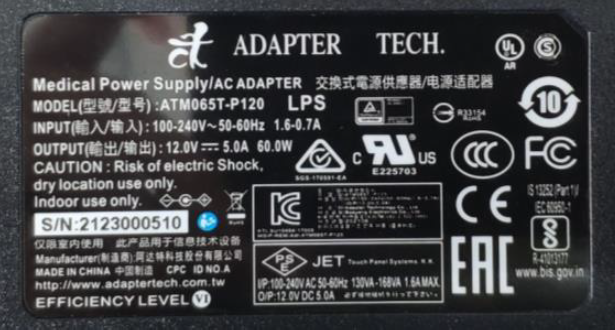

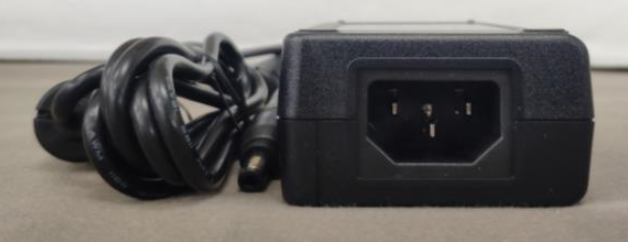

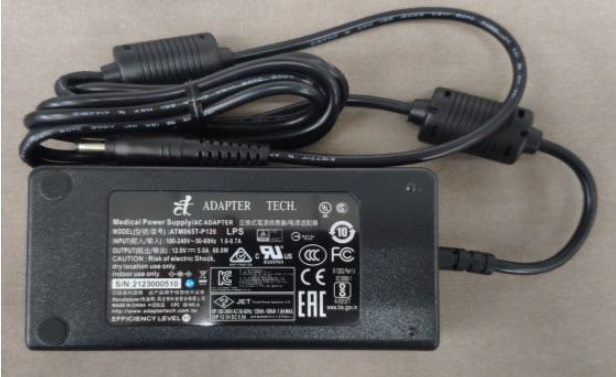

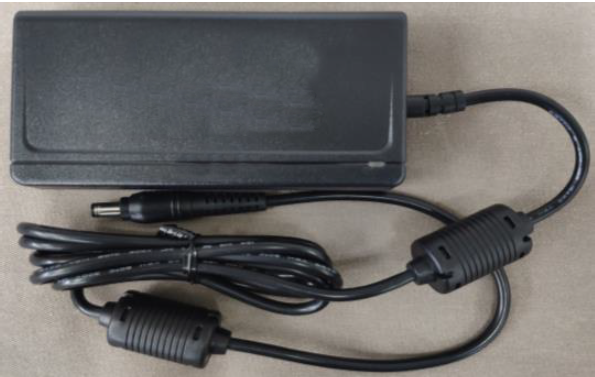

照片
