Dieser Artikel enthält das serielle Protokoll und die Pin-Belegung für den RS232 TRS-Anschluss des Elo 5553L Monitors

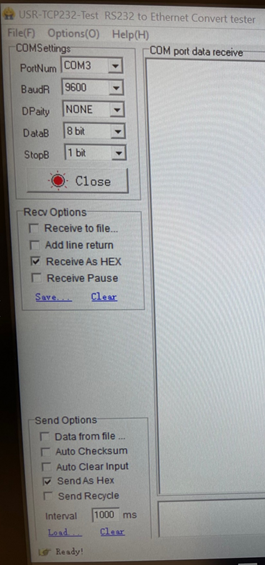

Das RS232 serielle Protokoll, das auf den Elo 5553L/6553L IDS Monitoren verwendet wird, ist unten aufgeführt.
- BUAD Rate = 9600
- Parity = NONE
- Datenbits = 8
- Stoppbits = 1

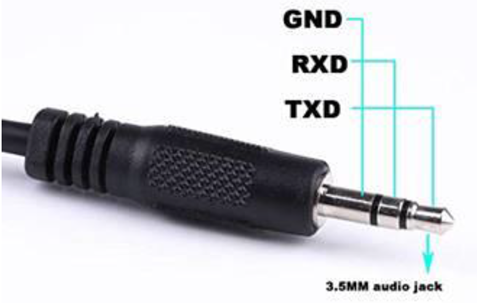

Die Pin-Belegung und das Diagramm des 3,5 mm TRS-Anschlusses für Serial RS232 sind unten dargestellt.
