Wo finde ich eine Pinbelegung für den LVDS-Anschluss des Elo 10-Zoll-Displaymoduls?

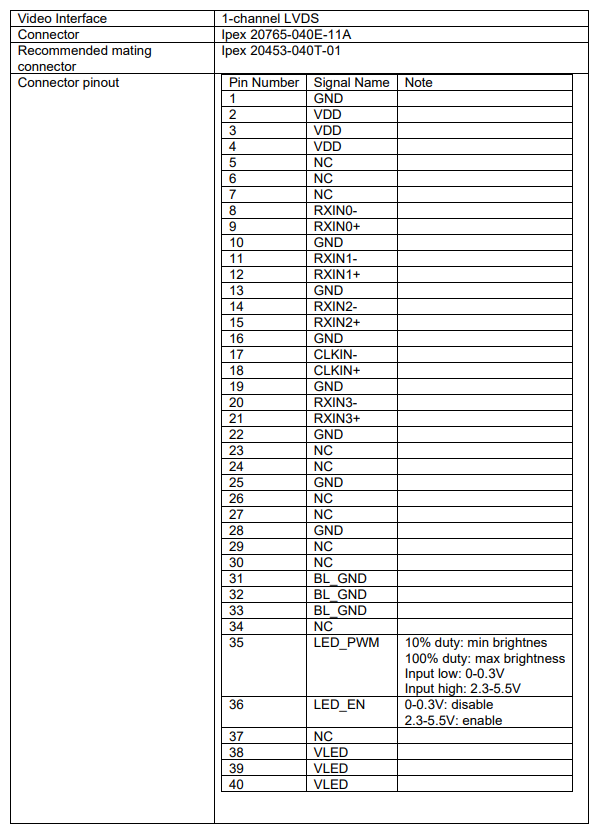

Dieser Artikel zeigt die Belegung des LVDS-Anschlusses des Elo 10,1-Zoll-Displaymoduls, P/N:E270763
