Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

Wo finde ich die Spezifikationen für den LVDS-Anschluss auf Touchscreen-Display-Modulen

Nachfolgend sind die Spezifikationen für den LVDS-Anschluss der Elo Touchscreen-Displaymodule; 7 Zoll, 10 Zoll und 15 Zoll

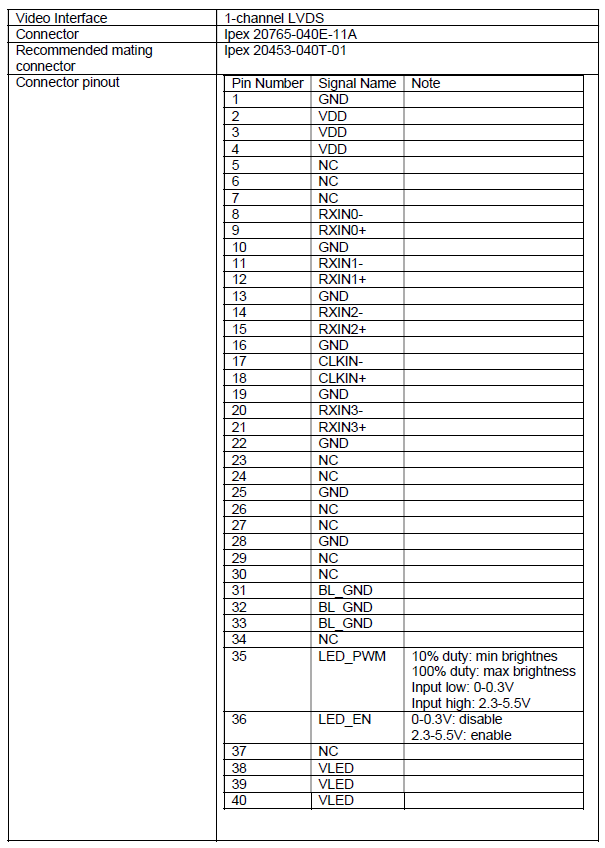

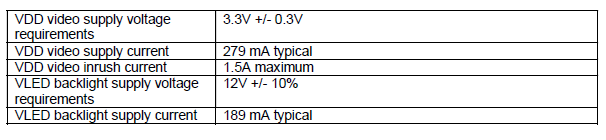

  • E271156: TDM-TP-FZW7.0-E270564-AB-R, Elo 7-Zoll TouchPro PCAP Touchscreen-Displaymodul

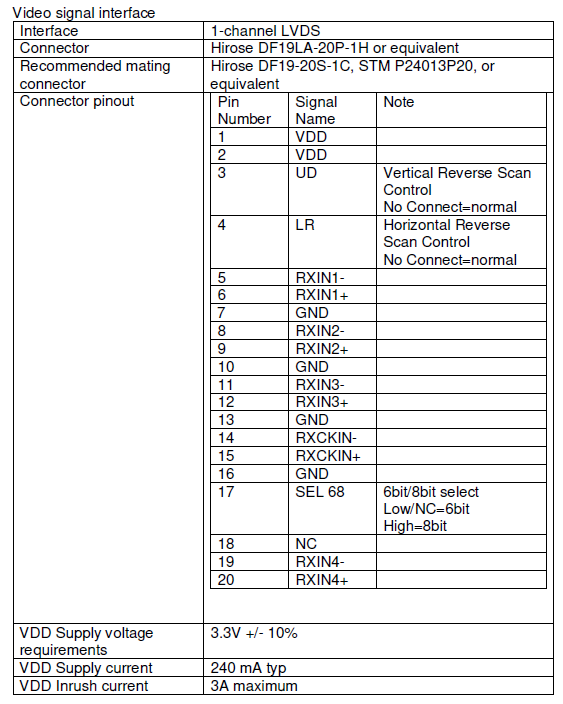

  • E270763: LCM-TP-FZW10.1-E270180-AB-R, Elo 10,1-Zoll TouchPro PCAP Touchscreen-Displaymodul

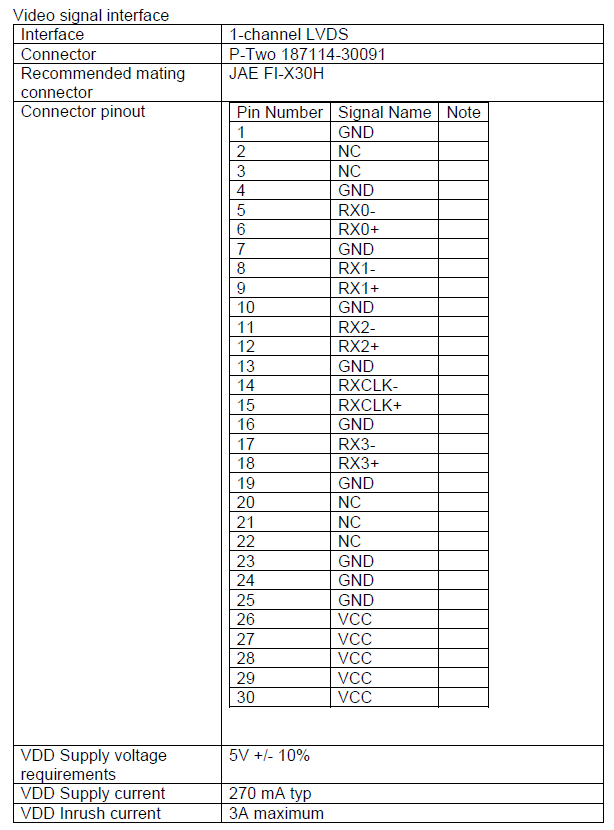

  • E270963: TDM-TP-FZW15.6-E270380-AB-R, Elo 15,6-Zoll TouchPro PCAP Touchscreen-Displaymodul





Bitte melden Sie fehlerhafte Links per E-Mail an support@elotouch.com und geben Sie einen Link zum Wissensartikel an

Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
