Wo finde ich ein Pinout des LVDS-Anschlusses an den Elo Display-Modulen?

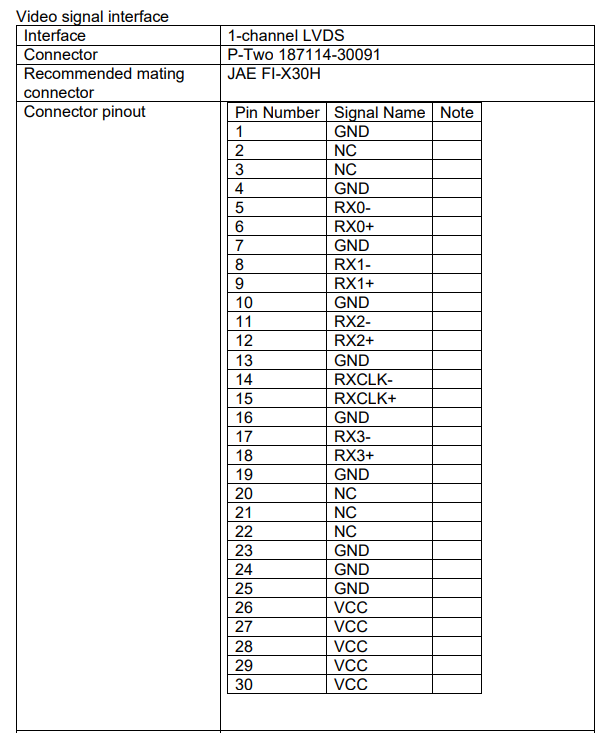

Dieser Artikel zeigt den Pinout des LVDS-Steckers am Elo 15,6-Zoll-Display-Modul, P/N:E270963
