Wo finde ich eine Pinbelegung des LVDS-Anschlusses für das Elo 7-Zoll-Displaymodul?

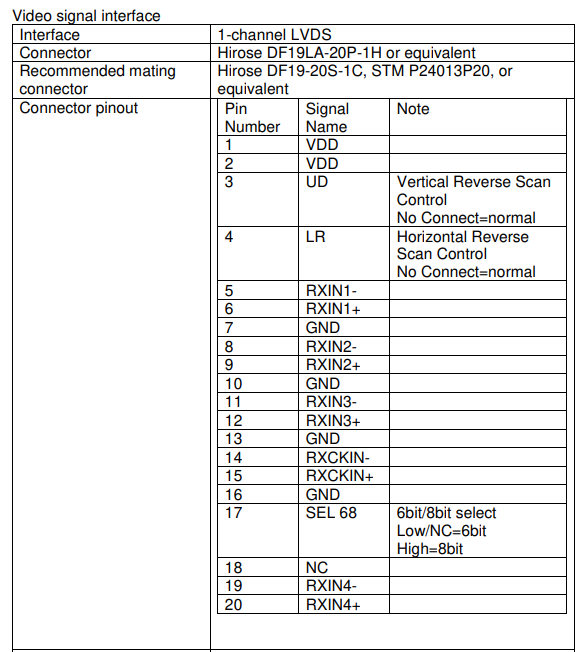

Dieser Artikel zeigt die Pinbelegung für den LVDS-Anschluss am 7-Zoll Elo Display Modul, P/N:E271156
