E514304 is the part number for the 65W replacement power supply kit for the Android i-Series 2.0, 3.0, and 4.0 devices. These can be purchased from any of our resellers. Below are specifications.
Contents
The following is included in the kit:

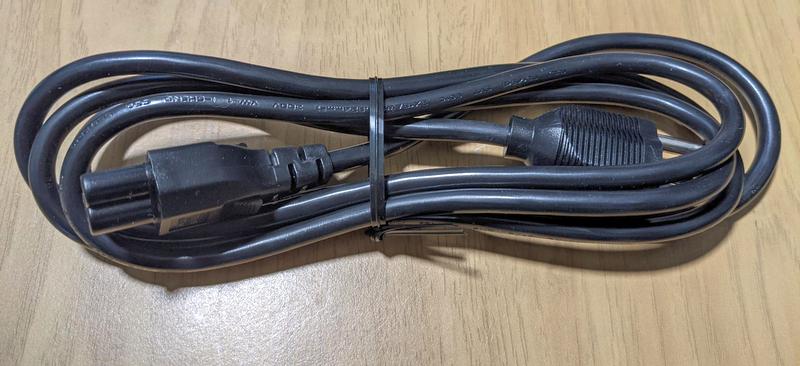

- E512363 - IEC-C5 CAB-PWR-US-3 LOBE-1.8M-BLK-R

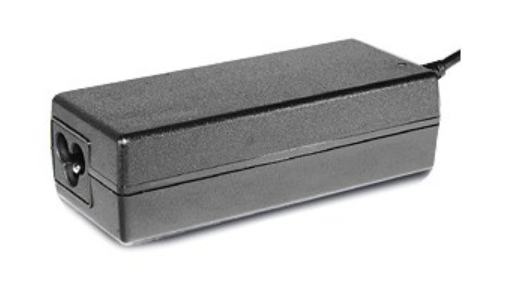

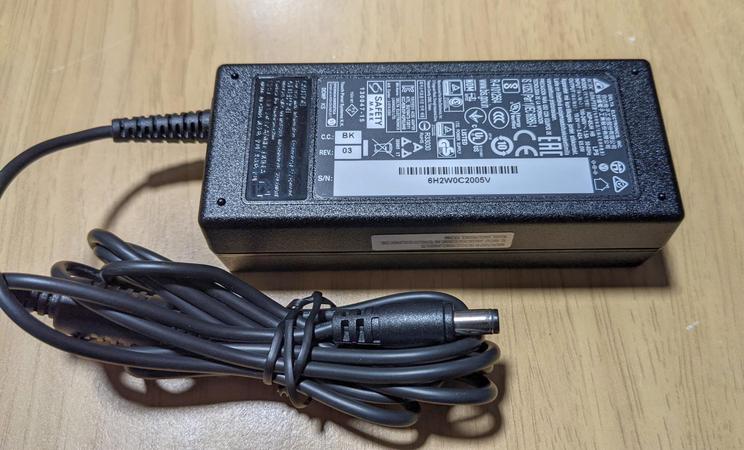

- E153026 = Power Brick, 19V/65W, Delta ADP-65JH, short plug
Specifications for Power Brick
Input
- Efficiency：84% Min. at nominal input voltage, maximum load and measured at the end of DC cable
- The wide AC input voltage range shall be 90 – 264 Vac, 47 – 63 Hz.
- The operating AC input voltage range shall be 100 – 240 Vac, 47 – 63 Hz.
- Input current, 1.5A max @ 100-240Vac and DC output full-load.
- Earth leakage current, 250uA max @ 264Vac, 47Hz
Output
- Output Power：65W
- Output Volts/Amps：19.0V/3.42A
- Leakage current:：Less than 75μA when adapter is connected to 240Vac/50Hz at normal condition
- Output ripple and noise：300 mV peak to peak

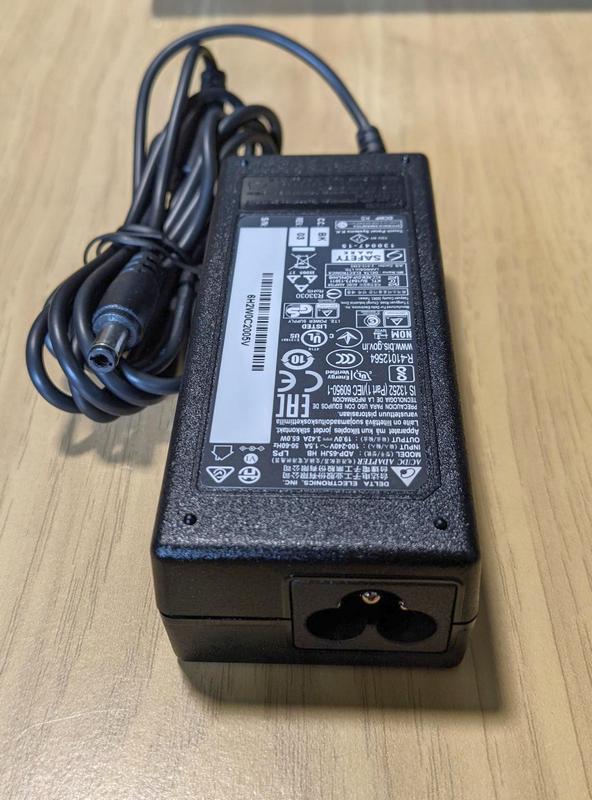

- AC Inlet Type: IEC 60320 AC Socket C6 type

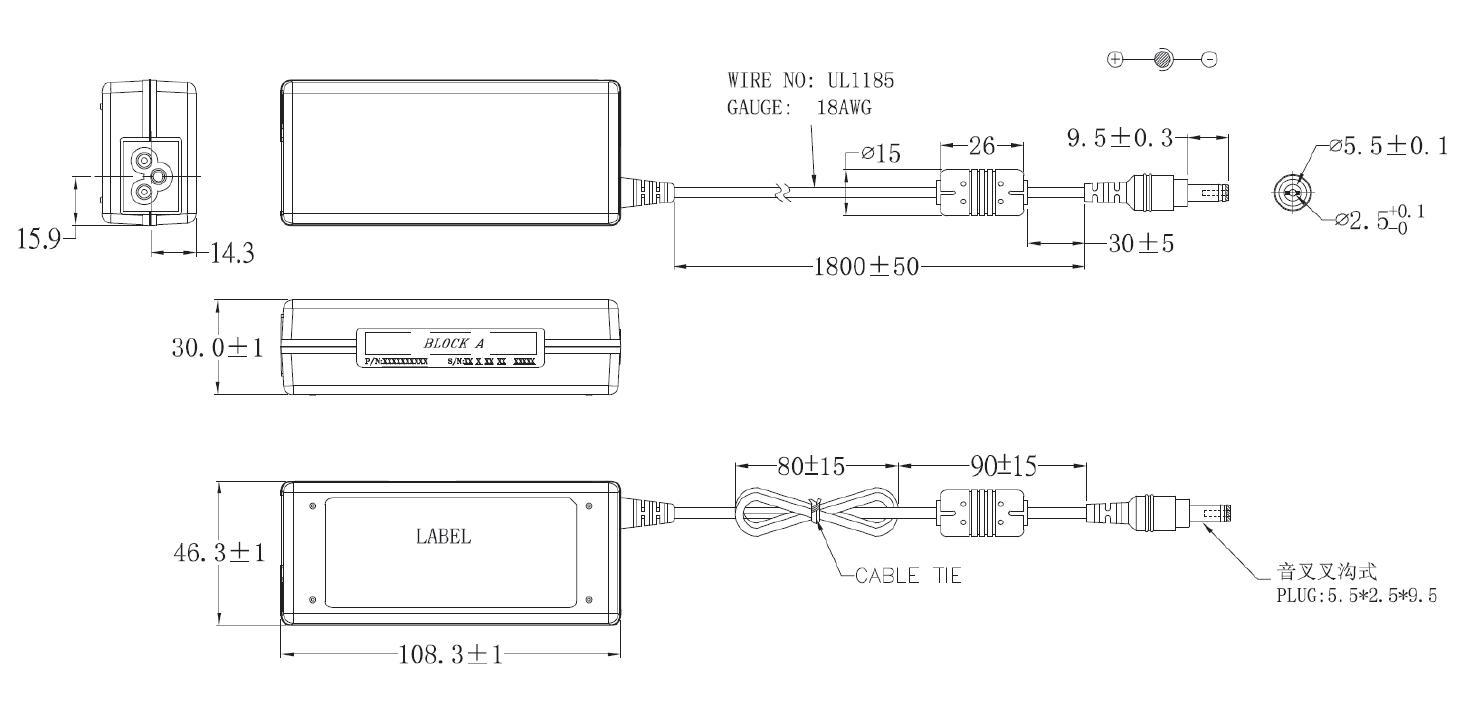

Dimensions (mm)
- L108.0 x W46.0 x H29.5
- DC Cable Length: 1800mm +/-50mm, UL1185 #18 AWG
- DC Plug Specification: ¢2.5*5.5

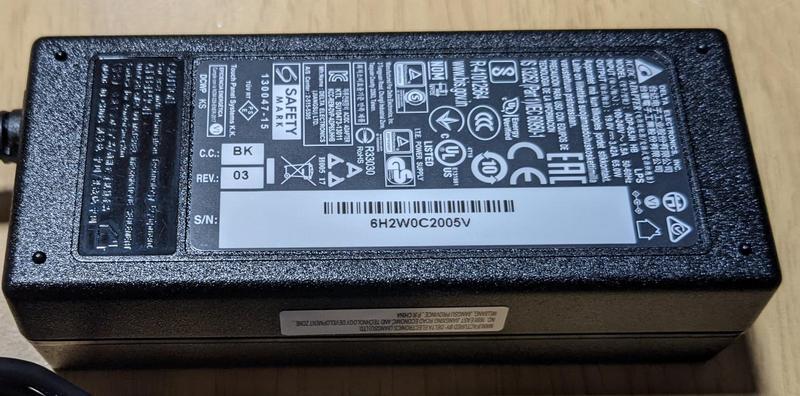

Regulatory Approvals and Certifications
The Delta ADP-65JH 65W power adapter included in kit E514304 carries multiple international safety, EMC, and energy-efficiency certifications for global deployment.
| Approval / Mark | Region | Description |
|---|---|---|
| BIS | India | India BIS certification under IS 13252 / IEC 60950-1 |
| CCC | China | China Compulsory Certification |
| CE | European Union | EU conformity for safety, EMC, and environmental directives |
| cULus / UL Listed | United States / Canada | UL safety certification for I.T.E. power supplies |
| EAC | Eurasian Economic Union | Compliance for Russia and Eurasian markets |
| Efficiency Level VI | Global | External power supply energy efficiency compliance |
| GS / TÜV Rheinland | Germany | Independent German product safety testing and GS certification |
| KC / KCC | South Korea | Korean EMC and electrical safety certification |
| NOM | Mexico | Mexican safety certification |
| PSE | Japan | Japan DENAN electrical safety certification |
| RCM | Australia / New Zealand | Regulatory Compliance Mark |
| RoHS | Global | Restriction of hazardous substances compliance |
| Singapore Safety Mark | Singapore | Singapore consumer product safety approval |
