This article provides technical information about P/N: E695530, 18W USBC PD Charger w/ (US, EU, UK) Plug Options.
This Power Adapter ships with the Elo Pay 7-inch device.
Power Adapter Specifications – Billion Part No. BQ018-090200CXXMEW0
Output Voltage Ratings
5V / 3A
9V / 2A
5.9V / 3A
11V / 2A
Electrical Specifications
Input Requirements
Input Voltage
Operation Range: 100 – 240 VAC
Design Range: 90 – 264 VAC
Input Line Frequency
Operation Range: 50 – 60 Hz
Design Range: 47 – 63 Hz
Input Current
Maximum: 0.6 A at full load with 230 VAC
Inrush Current
Maximum: 70A at 230 VAC (cold start, full load, 25 ℃)
Input interruption sufficient to drop below regulation will reset inrush limiting.
Power Consumption
< 0.075 W at 115/230 VAC input with 5V output
Efficiency
Measured at 25%, 50%, 75%, and 100% load with 115/230 VAC input (60/50Hz), after 30 minutes burn-in.
| Output | DOE VI | CoC V5 Tier II |
|---|---|---|
| 5V / 3A | 81.39% | 81.84% |
| 9V / 2A | 85.00% | 85.45% |
| 5.9V / 3A | 82.39% | 82.92% |
| 11V / 2A (18W max) | 85.00% | 85.45% |
Output Requirements
Output Rating Voltage
PD Mode:
| Output | Voltage Regulation | Load Range |
|---|---|---|
| 5.0V | 4.75V – 5.25V | 0A – 3A |
| 9.0V | 8.55V – 9.45V | 0A – 2A |
PPS Mode:
| Output | Voltage Regulation | Load Range |
|---|---|---|
| 3.3V – 5.9V | 3.135V – 6.195V | 0A – 3A ±150mA |
| 3.3V – 11V | 3.135V – 11.55V | 0A – 2A ±150mA (18W max) |
Peak Load
At 5V output: 6.0A / 1ms at 115/230 VAC input conditions.

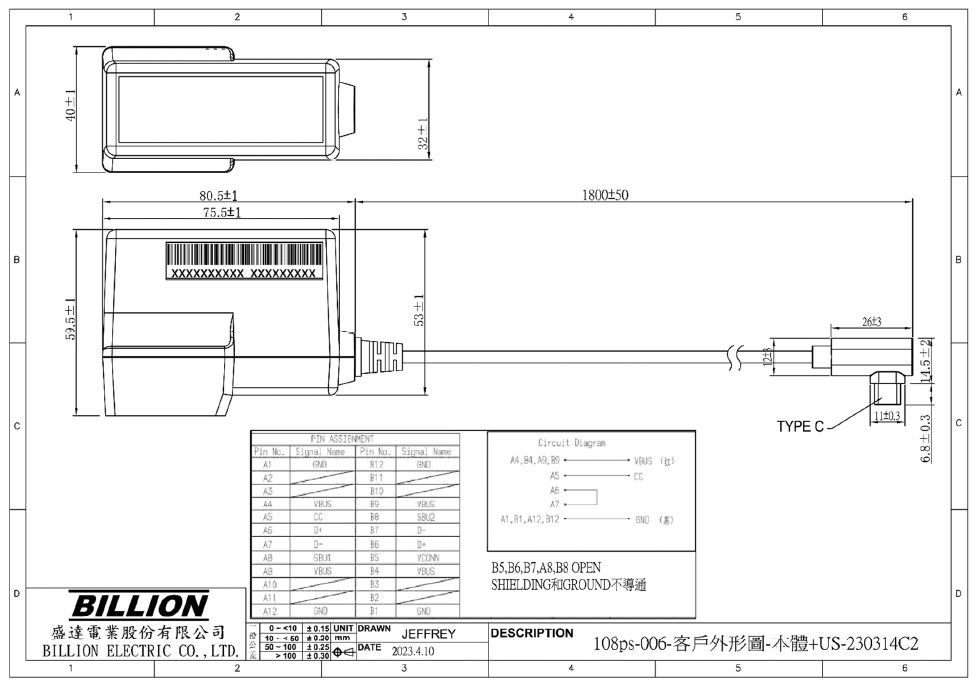

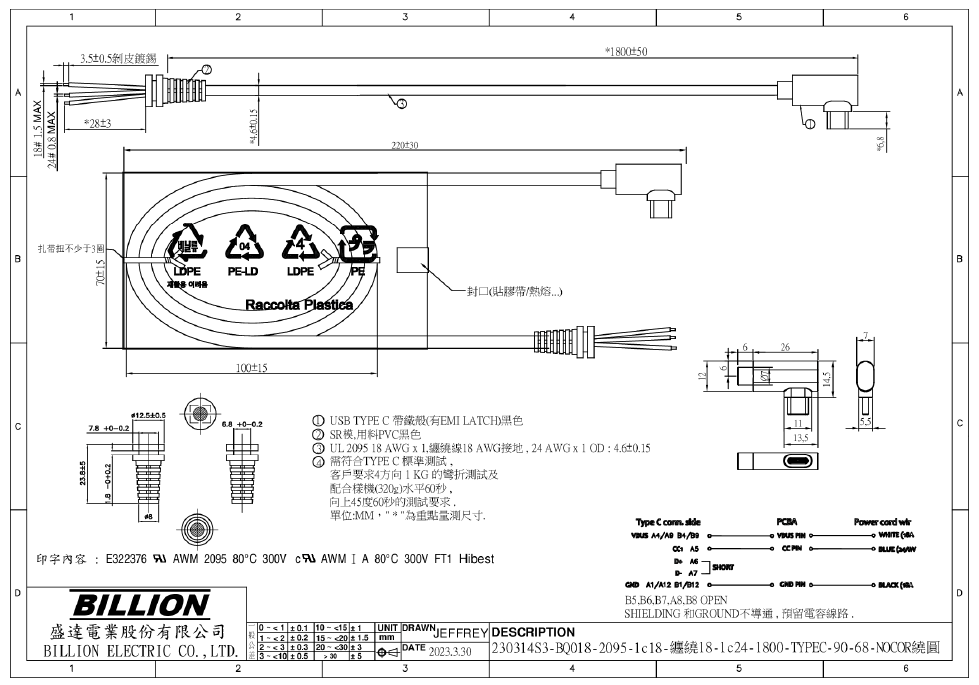

Drawing:

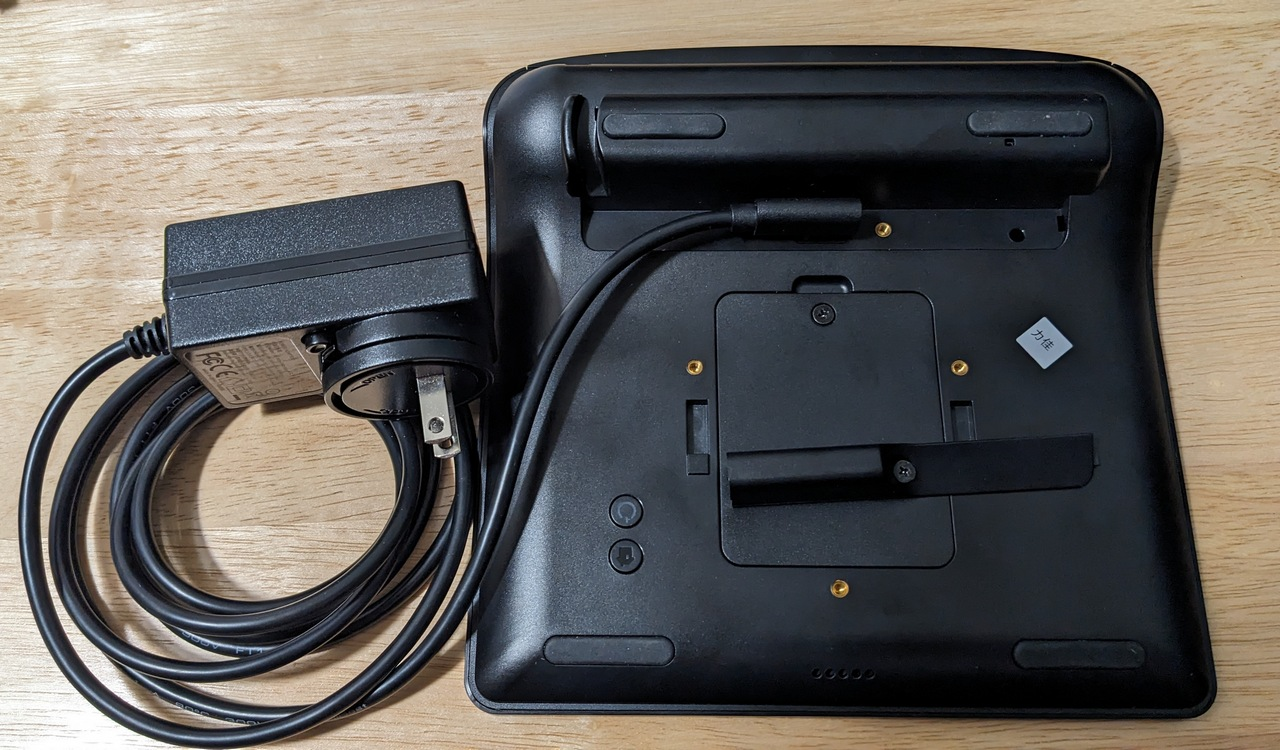

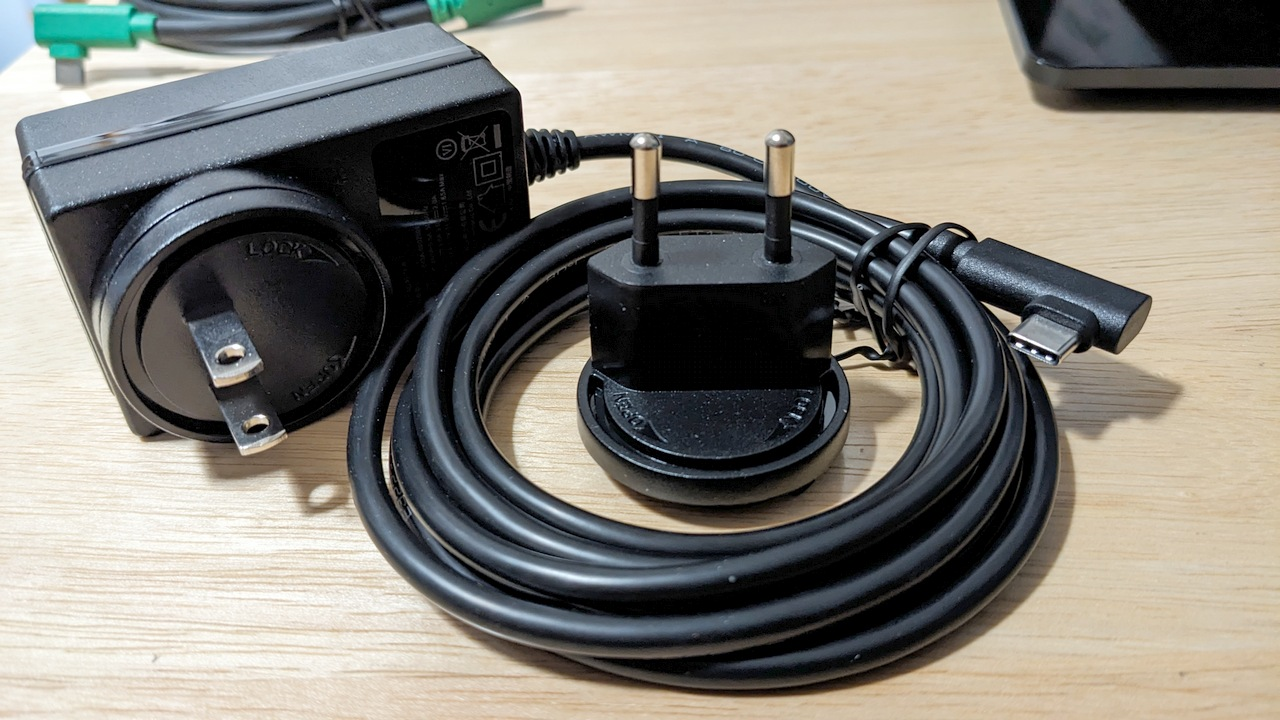

Photos:
