This article provides specifications for the Elo P/N: E734447, a 19 V, 65 W Delta power adapter designed for the Backpack 5.

Elo Power Adapter – P/N: E734447

Specifications:

• Model: Delta ADP65JH HB

• Output: 19 V DC, 3.42 A (~65 W)

• Input: 100–240 V AC, 50–60 Hz

• Power Rating: 65 W

• Connector: Barrel plug, 5.5 mm × 2.5 mm, center pin positive

This adapter is part of the Delta ADP‑65JH series and is suitable for use with Elo Backpack 5 devices requiring 19 V/65 W input.

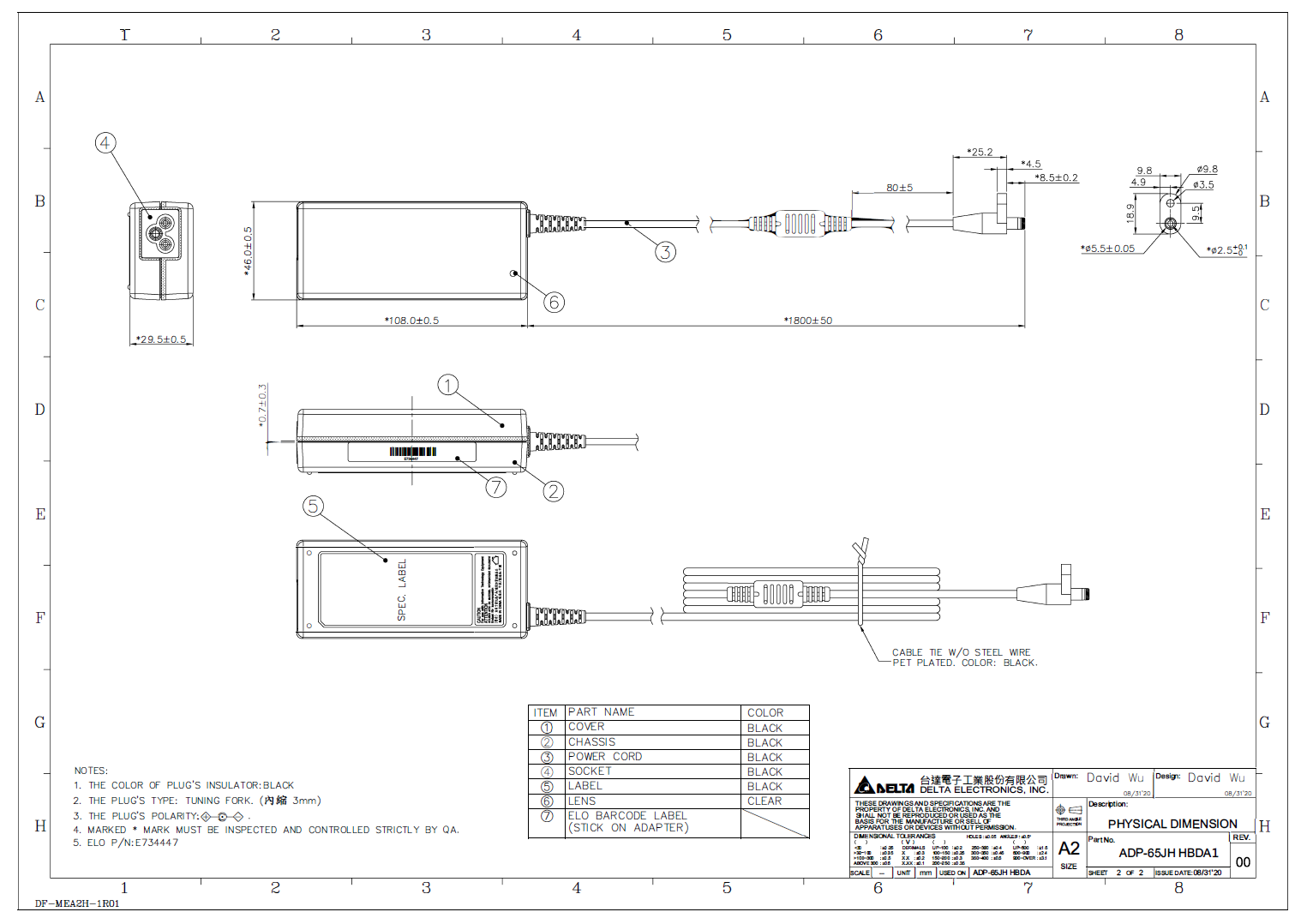

Drawing:

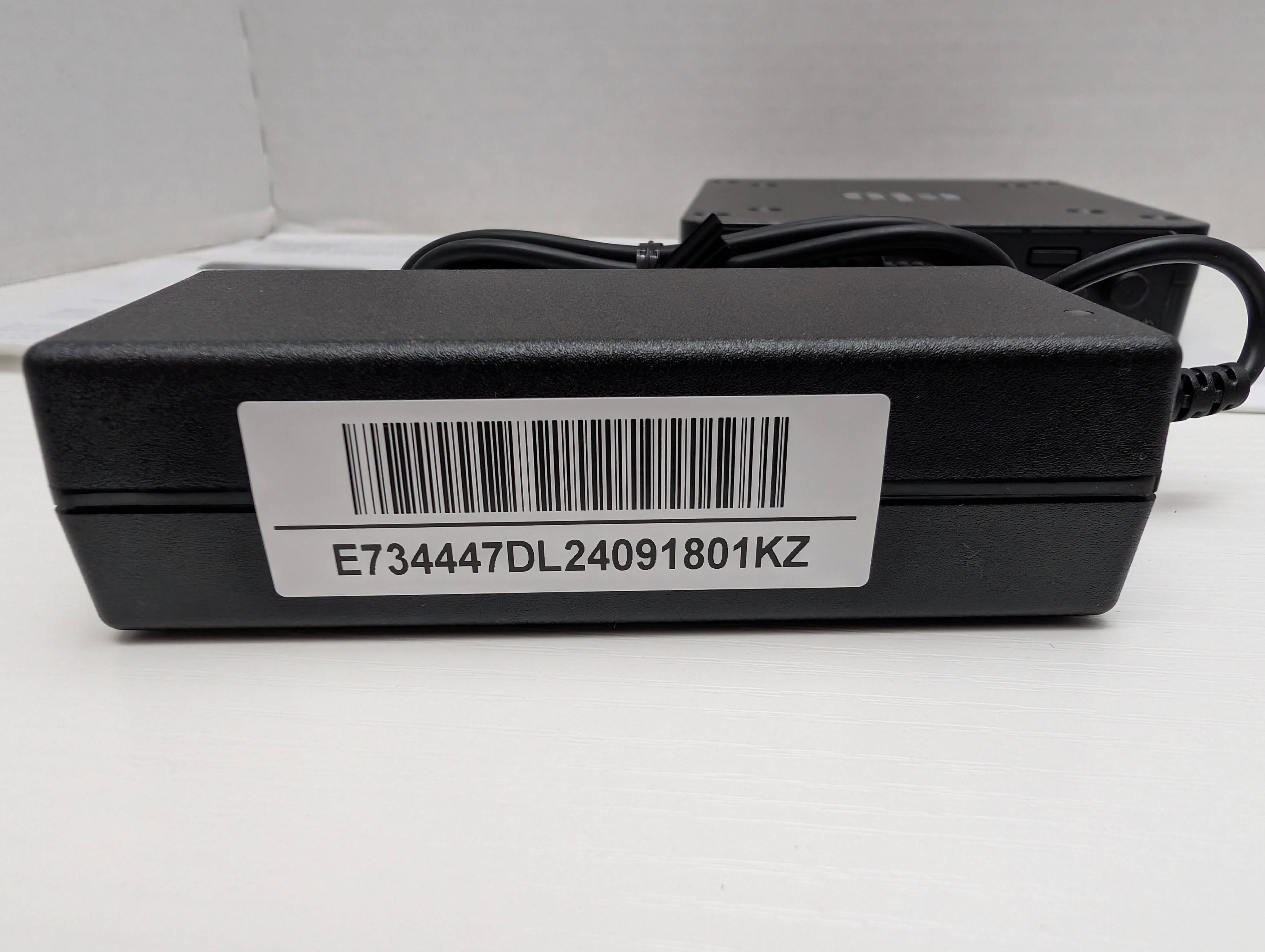

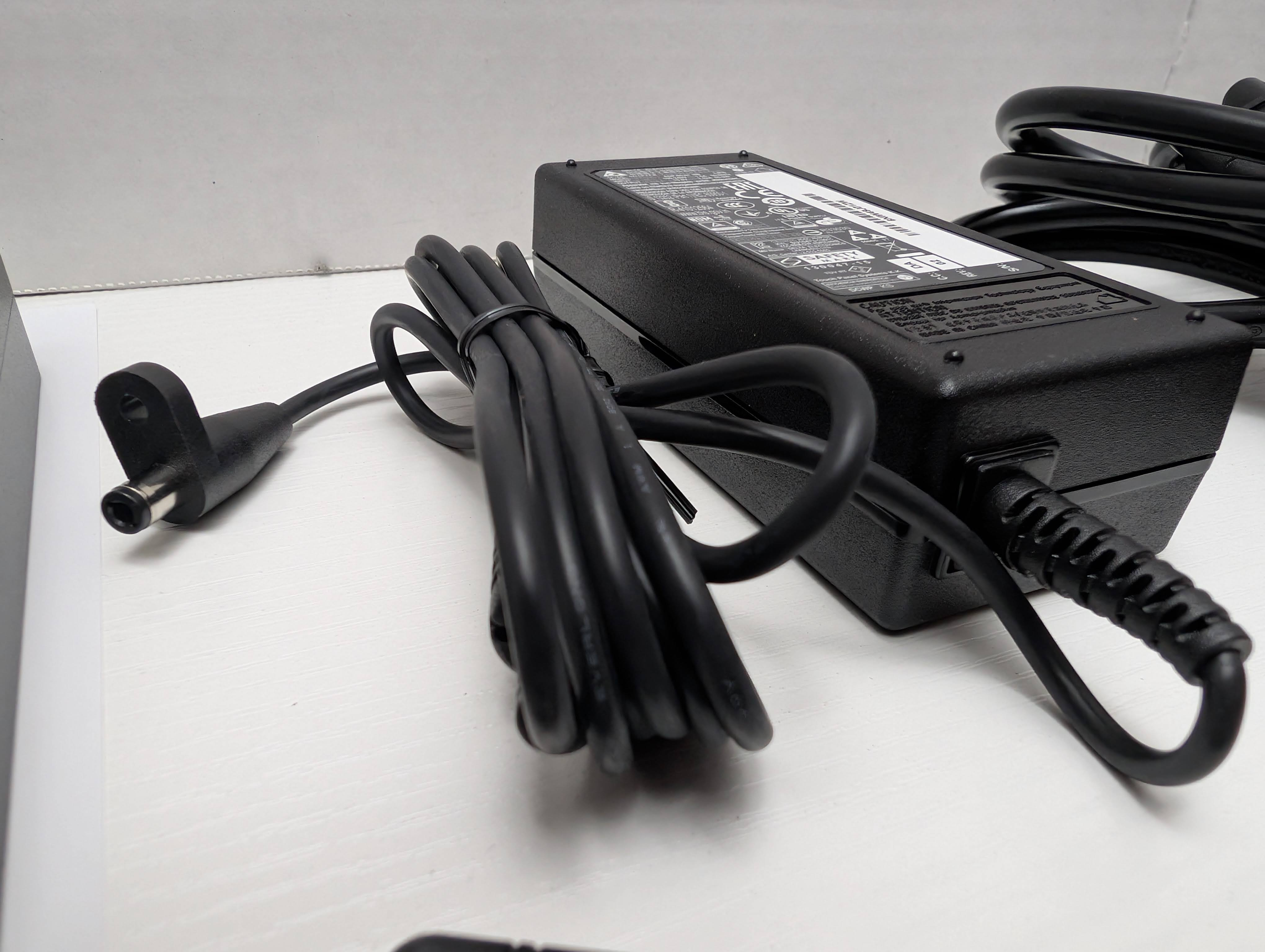

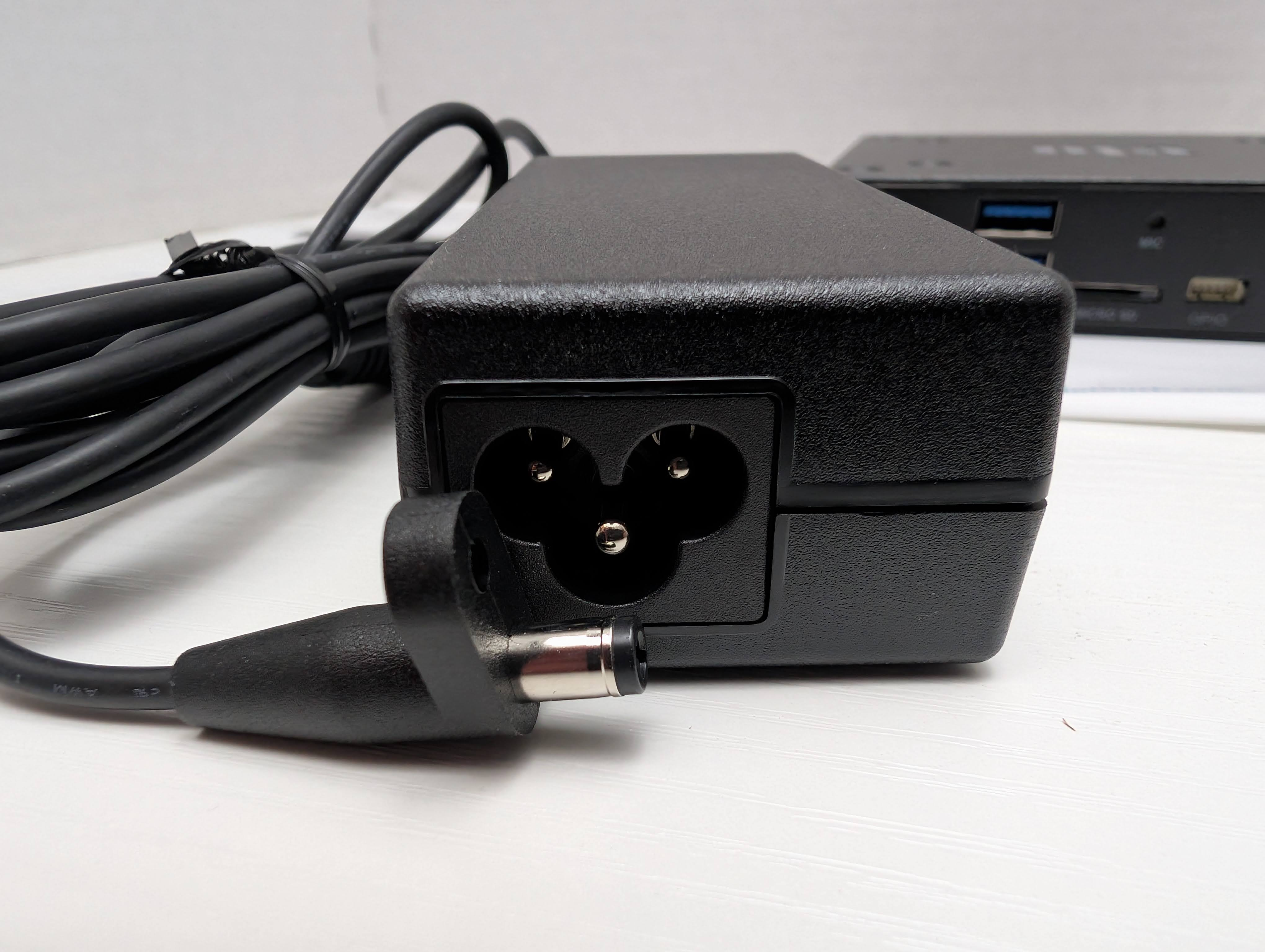

Photos:
